Schneider Electric 20-Way Terminal Block for Modicon Premium PLC

Description

The TSXBLY01 is a removable 20-way screw terminal block designed by Schneider Electric for its Modicon Premium automation series. This component provides a robust and secure interface for wiring to specific analog output modules, facilitating easy installation and maintenance. As the Modicon Premium range is obsolete, this terminal block is a critical spare part for extending the life of existing control systems.

Specifications

• Manufacturer: Schneider Electric
• Part Number: TSXBLY01
• Product Range: Modicon Premium
• Product Type: Removable Screw Terminal Block
• Number of Terminals: 20
• Connection Type: Screw terminals

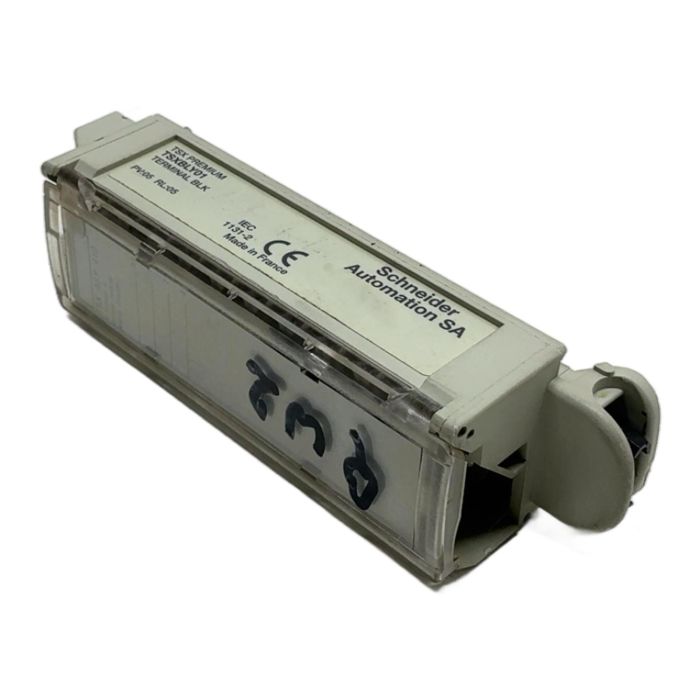

Label Info

• Model: TSX PREMIUM TSXBLY01 TERMINAL BLK
• Revisions: PV:05 RL:05
• Standard: IEC 1131-2

Application

This terminal block is specifically designed for use with Modicon Premium analog output modules, including the TSXASY410 and TSXASY800. It is used in various industrial automation applications to connect field wiring to the PLC system.

Country of Origin

Made in France.

CO2 Impact

Choosing this reused TSXBLY01 terminal block prevents the emission of approximately 4.0 kg of CO2 compared to manufacturing a new one. This is a sustainable choice for maintaining your industrial equipment.

Availability

This is an obsolete item. Availability is limited to existing stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

What PLC modules is the TSXBLY01 compatible with?

The TSXBLY01 is primarily designed for the Schneider Modicon Premium 4-channel analog output module TSXASY410 and the 8-channel analog output module TSXASY800.

The terminals are designed for a wire cross-section of 0.34 to 1.5 mm squared (AWG 22 to AWG 16) for single-wire connections without a ferrule.

No, the TSXBLY01 and the entire Modicon Premium product line are obsolete and no longer in production. This item is only available as a spare part from surplus stock.
