Schneider Electric TSXBLY01 - Modicon Premium Terminal Block

Description

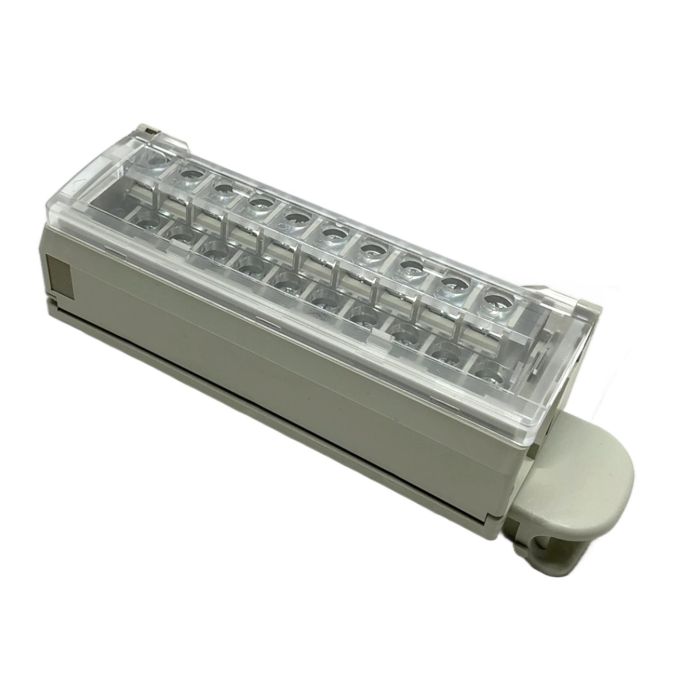

The TSXBLY01 is a robust 20-way removable screw terminal block from Schneider Electric, designed specifically for the Modicon Premium series of PLCs. It facilitates secure and straightforward wiring of I/O modules, which is critical for system reliability and ease of maintenance. This component is an essential spare part for maintaining legacy Modicon Premium installations.

Specifications

• Manufacturer: Schneider Electric
• Product Range: Modicon Premium
• Model: TSXBLY01
• Product Type: Removable Screw Terminal Block
• Number of Terminals: 20
• Connection Type: Screw Connectors
• Compatibility: Designed for Modicon Premium 16-channel I/O modules

Label Info

• Model: TSXBLY01
• SN: 21040700000
• Part Number: 070661

Application

This terminal block is used to connect field wiring to discrete I/O modules within a Schneider Electric Modicon Premium PLC system, commonly found in industrial automation, process control, and manufacturing applications.

Country of Origin

Made in Japan

CO2 Impact

Opting for this pre-owned terminal block instead of a new one saves approximately 4.8 kg of CO2. This is comparable to the emissions from driving a standard car for 24 kilometers.

Availability

This product is an obsolete item but is available as a spare part to support existing systems. Order now from PLC2Day for expert support and fast delivery.

FAQ

Which Modicon Premium I/O modules is the TSXBLY01 compatible with?

The TSXBLY01 is compatible with various 16-channel Modicon Premium discrete I/O modules, such as the TSXDEY16D2, TSXDSY16T2, and others requiring a 20-pin terminal block. Always verify the module's manual for confirmation.

The screw terminals are designed for a wire cross-section of 0.34 to 1.5 mm squared (AWG 22 to AWG 16) for a single wire, ensuring a secure and reliable connection.

No, the TSXBLY01 is part of the obsolete Modicon Premium range. It is no longer in production, but available as a spare part for maintaining existing systems. The modern equivalent platform is the Modicon X80 I/O.
