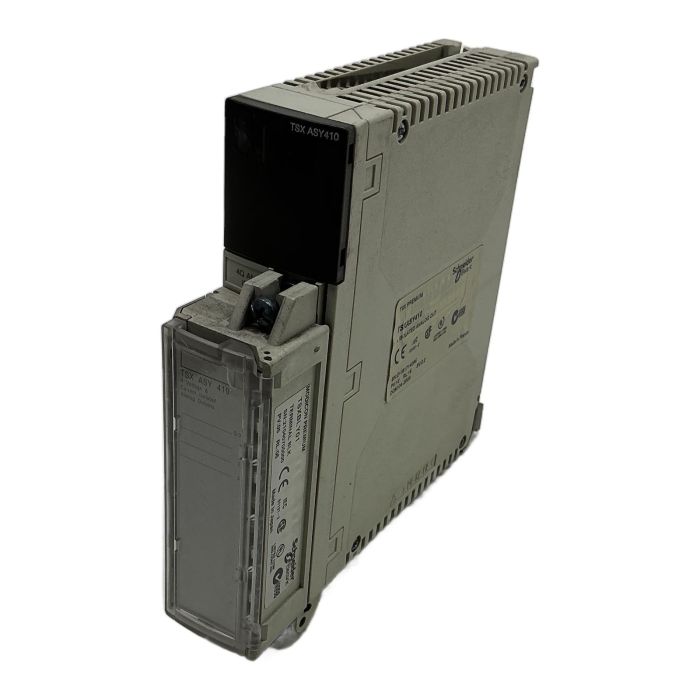

Schneider Electric TSXASY410 Analog Output Module for Modicon Premium

Description

The TSXASY410 is a 4-channel isolated analog output module for the Schneider Electric Modicon Premium PLC system. It is designed to provide high-precision analog signals for controlling devices such as valves, drives, and actuators. This module is a crucial component for legacy systems, offering reliability and performance. This item comes complete with the TSXBLY01 removable screw terminal block.

Specifications

• Manufacturer: Schneider Electric
• Product Series: Modicon Premium
• Model: TSXASY410
• Number of Outputs: 4 (isolated)
• Output Type: Voltage and Current
• Voltage Range: +/- 10 V
• Current Range: 0-20 mA, 4-20 mA
• Resolution: 12-bit

Label Info

• Model: TSXASY410
• PV:12, RL:16, SV:2.2
• SN: 21051714096
• DOM: 04-2005

Application

Ideal for process control applications in manufacturing, water treatment, and building automation that rely on the robust Modicon Premium platform.

Country of Origin

Made in France.

CO2 Impact

By purchasing this pre-owned module instead of a new one, you contribute to a circular economy and avoid the emission of approximately 16.0 kg of CO2.

Availability

This is an obsolete item, available as a refurbished spare part. Essential for maintaining operational continuity of existing Modicon Premium installations. Order now from PLC2Day for expert support and fast delivery.

FAQ

Is the TSXBLY01 terminal block included with this module?

Yes, the images and description confirm that the TSXASY410 module is supplied with the matching TSXBLY01 20-pin screw terminal block for immediate installation.

This module is exclusively designed for the Schneider Electric Modicon Premium series of Programmable Logic Controllers. It is not compatible with newer series like Modicon M340 or M580 without a complete system migration.

The TSXASY410 supports multiple output ranges that can be configured in the software. The primary ranges are +/- 10 Volts for voltage outputs, and 0-20 milliamps or 4-20 milliamps for current outputs.
