TSXAEY1600: Analog Input Module, Modicon Premium

Product Description

Analog input module for Modicon Premium Automation platform with 16 high level inputs and 12 bits conversion.

Product Specifications

Range of product: Modicon Premium Automation platform
Product or component type: Analog input module
Input level: High level
Analog input number: 16
Analog input type: Current 0-20 mA, Current 4-20 mA, Voltage +/- 10 V, Voltage 0-10 V, Voltage 0-5 V, Voltage 1-5 V
Analog/digital conversion: 12 bits
Nominal read cycle time: 51 ms
Fast read cycle time: 3 ms + 3 ms x number of channels used
Measurement error: 0.1% of full scale +/- 10 V 25 °C, 0.1% of full scale 0-10 V 25 °C, 0.1% of full scale 0-5 V 25 °C, 0.1% of full scale 1-5 V 25 °C, 0.13% of full scale +/- 10 V 0-60 °C, 0.13% of full scale 0-10 V 0-60 °C, 0.13% of full scale 0-5 V 0-60 °C, 0.13% of full scale 1-5 V 0-60 °C, 0.16% of full scale 0-20 mA 25 °C, 0.16% of full scale 4-20 mA 25 °C, 0.32% of full scale 0-20 mA 0-60 °C, 0.32% of full scale 4-20 mA 0-60 °C
Isolation between channels and bus: 1000 Vrms

Product Label Info

Model Code / Product Markings: TSXAEY1600

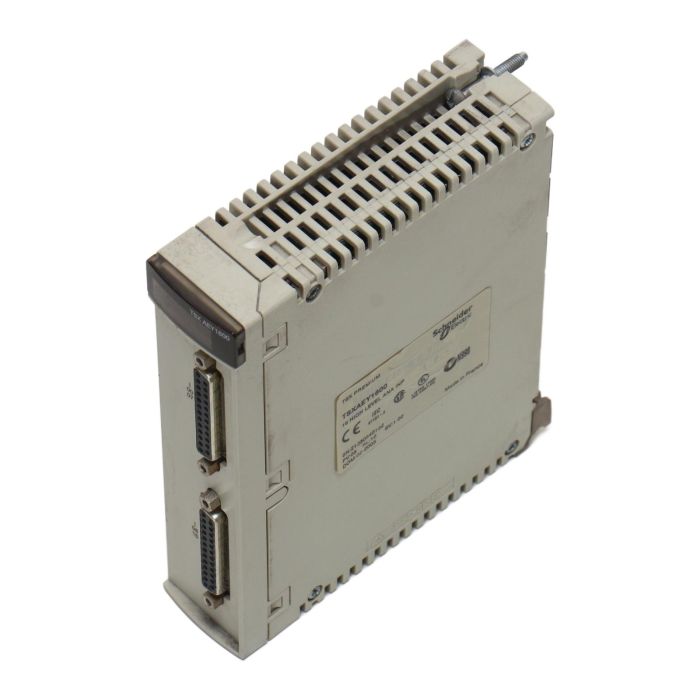

TSX PREMIUM, 16 HIGH LEVEL ANA INP, CE LEC, 61131-2, SN:21050540152, SP., PV:05 RL:10 SV:1.00, DOM:02-2005, 147456, Schneider, Electric, YL, LISTED 170M, IND.CONT.EQ., N998, Made in France

EAN (GTIN-13): 3389110726114

Application

Ideal for industrial automation systems requiring high level analog inputs.

Country of Origin

This product is manufactured in France.

Method of Application

Integrate into Modicon Premium Automation platform for enhanced analog input functionality.

Safety Instructions

Handle with care, follow proper ESD precautions during installation.
