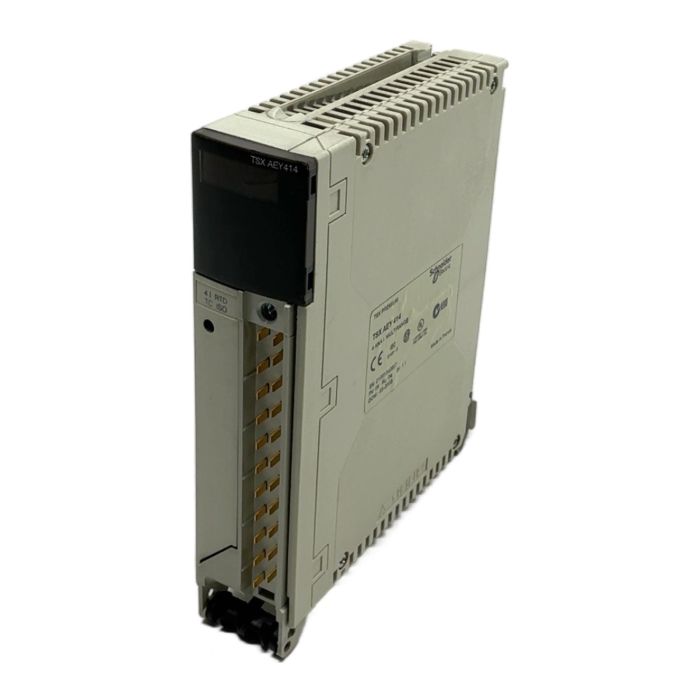

Schneider Electric TSX AEY 414 Analog Input Module for Modicon Premium

Description

The TSX AEY 414 is a 4-channel multirange analog input module designed for the Schneider Electric Modicon Premium automation platform. It provides a reliable interface for connecting various analog sensors that output voltage or current signals, such as pressure transmitters, temperature sensors, and flow meters. This module is essential for applications requiring precise monitoring and control of analog process variables.

Specifications

• Manufacturer: Schneider Electric
• Product Series: Modicon Premium
• Model: TSX AEY 414
• Number of Channels: 4 Analog Inputs
• Input Type: Multirange (Current/Voltage)
• Supported Ranges: 0-20mA, 4-20mA, +/- 20mA, 0-5V, 0-10V, +/- 10V, 1-5V
• Resolution: 12 bits

Label Info

• Part Number: TSX AEY 414
• Serial Number: 21031340807
• Date of Manufacture (DOM): 03-2003
• Product Version (PV): 09
• Release Level (RL): 04
• Software Version (SV): 1.1

Application

This module is widely used in legacy systems across manufacturing, process control, and infrastructure for monitoring analog signals. It is an ideal spare part for maintaining existing Modicon Premium PLC systems and avoiding costly full-system upgrades.

Country of Origin

Made in France.

CO2 Impact

By purchasing this pre-owned module, you help avoid the emission of approximately 10 kg of CO2 associated with new production. This is comparable to the emissions from a 50 km car journey.

Availability

This is an obsolete item but is available from our stock as a tested, functional spare part. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What is the resolution of the TSX AEY 414 module?

The resolution is 12 bits, or 11 bits plus a sign bit for bipolar ranges, providing precise measurements for industrial control applications.

No, the TSX AEY 414 is specifically designed for the Modicon Premium automation platform. For Quantum systems, you would need a corresponding 140-series analog input module.

The input range for each of the four channels is configured in the hardware configuration section of your programming software, such as PL7 Pro or Unity Pro. There are no physical jumpers or switches on the module itself for range selection.
