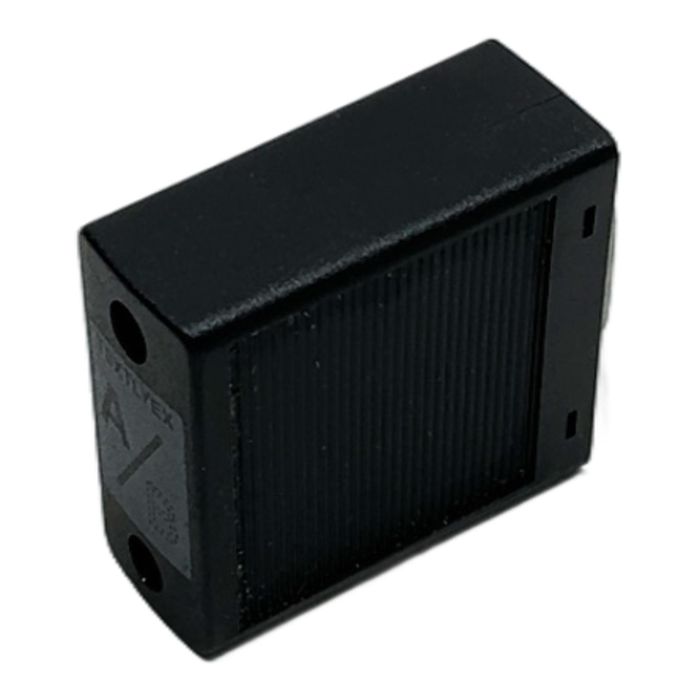

Schneider Electric / Telemecanique AS-i Bus Terminator TSXTLYEX

Description

The TSXTLYEX is a passive bus terminator for AS-i (Actuator Sensor Interface) networks, manufactured by Schneider Electric under the Telemecanique brand. This component is essential for maintaining signal integrity within an AS-i bus line. By terminating the end of the cable, it prevents signal reflections that can cause communication errors and system instability. Its compact form factor and standard DB9 connector allow for easy integration into existing setups.

Specifications

• Manufacturer: Schneider Electric / Telemecanique
• Type: TSXTLYEX
• Product Type: AS-i Bus Terminator
• Network Compatibility: Actuator Sensor Interface (AS-i)
• Connector: DB9 Male
• Status: Obsolete

Application

This terminator is used in industrial automation systems that employ the AS-i network protocol. It is installed at the physical end of the bus cable to ensure reliable data transmission between the PLC master and the connected sensors and actuators.

Country of Origin

France

CO2 Impact

By purchasing this reused TSXTLYEX, you are helping to avoid the production of a new unit, which saves an estimated 2.0 kg of CO2. This saving is comparable to the emissions from driving a standard car for 10 kilometers.

Availability

This item is a readily available, tested spare part. Ideal for repairs or maintenance of existing AS-i installations. Order now from PLC2Day for expert support and fast delivery.

FAQ

An AS-i bus terminator is a passive electronic component placed at both physical ends of the main bus cable. It provides a resistance that matches the cable's characteristic impedance, which absorbs the signal energy. This prevents the signal from reflecting back down the cable, which would otherwise cause interference and data corruption.

Yes, the TSXTLYEX is a passive terminator and is compatible with all standard AS-i specifications, including AS-i 2.0, 2.1, and 3.0, as the underlying physical layer requirements for termination have remained consistent.

Installation is straightforward. The TSXTLYEX features a DB9 male connector. It should be connected to a corresponding DB9 female port located at the very end of your AS-i bus segment, typically on the last device or a dedicated connection box.
