ConneXium Managed Switch - 14 ports for copper + 2 ports for fiber optic multimode: , Specifications, Main, Range of Product, ConneXium, Product or Component Type, Ethernet TCP/IP managed switch, Concept, Transparent Ready, communication port protocol, Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, RS232, LLDP, Telnet, SNTP, MRP (Media Redundancy Protocol), Port Ethernet, 100BASE-FX - 2 fiber optic, 10/100BASE-TX - 14 copper cable, Maximum number of switches in cascade, Unlimited, Cybersecurity, Port hardening, Complementary, Integrated connection type, Duplex SC fiber optic, Shielded RJ45 copper cable, Transmission support medium, Twisted shielded pairs cable CAT 5E copper cable, Multimode optical fiber fiber optic, Maximum cable distance between devices, 328.08 ft (100 m) copper cable, Optic fiber length, 2.49 mile (4 km) 62.5/125 µm, 3.11 mile (5 km) 50/125 µm, Attenuation, 0…11 dB 62.2/125 µm), 0…8 dB 50/125 µm), Ethernet service, Configuration via web server, VLAN, Multicast filtering, Data stream control, IGMP Snooping, SNMP-Traps and SYSLOG, Communication Service, TFTP, Quality of Service (QoS), Port monitoring, Port mirroring, Address conflict detection, Diagnostics run time, Signal contact, Self test, Maximum number of switches in a ring, 50, Redundancy, HiPER ring, RSTP, Redundant network coupling, [Us] rated supply voltage, 12...48 V, Supply voltage limits, 9.6…60 V DC SELV, 18…30 V AC SELV, Power Consumption in W, 11.8 W, Electrical connection, Removable connector 6 ways power supply, Mounting Support, 35 mm symmetrical DIN rail, Marking, CE, UL, RCM, EtherNet/IP, Function Available, Alarms (Traps), System information, Report, Trap log, Local signalling, For P1 P2 power supplies 1 dual colour LED (green/yellow), for fault 1 LED (red), for ring manager 1 dual colour LED (green/yellow), for stand-by 1 LED (green), for link status 1 LED per channel (green), for ACT 1 LED per channel (yellow), Device status, Alarm output, 1 voltfree contact 1 A, Alarm function, Power supply fault, Data link status, Redundancy ring fault, Switch fault, Ethernet cabling system, TF switches, Width, 4.37 in (111 mm), Height, 5.16 in (131 mm), Depth, 4.37 in (111 mm), Net Weight, 1.32 lb(US) (0.6 kg), Environment, Ambient Air Temperature for Operation, 32…140 °F (0…60 °C), Relative Humidity, 10…95 % non-condensing, IP Degree of Protection, IP20, Directives, 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, Standards, UL 508, EN/IEC 61131, IEC 61850-3, Product certifications, CE, UL, RCM, ODVA EtherNet/IP, BV, GL, Ordering and shipping details, Category, US1PC4118225

• Range of Product: ConneXium
• Product or Component Type: Ethernet TCP/IP managed switch
• Concept: Transparent Ready
• Communication port protocol: Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, RS232, LLDP, Telnet, SNTP, MRP (Media Redundancy Protocol)
• Port Ethernet: 100BASE-FX - 2 fiber optic, 10/100BASE-TX - 14 copper cable
• Maximum number of switches in cascade: Unlimited
• Cybersecurity: Port hardening
• Integrated connection type: Duplex SC fiber optic, Shielded RJ45 copper cable
• Transmission support medium: Twisted shielded pairs cable CAT 5E copper cable, Multimode optical fiber fiber optic
• Maximum cable distance between devices: 328.08 ft (100 m) copper cable
• Optic fiber length: 2.49 mile (4 km) 62.5/125 µm, 3.11 mile (5 km) 50/125 µm
• Attenuation: 0…11 dB 62.2/125 µm), 0…8 dB 50/125 µm)
• Ethernet service: Configuration via web server, VLAN, Multicast filtering, Data stream control, IGMP Snooping, SNMP-Traps and SYSLOG
• Communication Service: TFTP, Quality of Service (QoS), Port monitoring, Port mirroring, Address conflict detection, Diagnostics run time
• Signal contact: Self test
• Maximum number of switches in a ring: 50
• Redundancy: HiPER ring, RSTP, Redundant network coupling
• [Us] rated supply voltage: 12...48 V
• Power Consumption in W: 11.8 W
• Mounting Support: 35 mm symmetrical DIN rail
• Marking: CE, UL, RCM, EtherNet/IP
• Function Available: Alarms (Traps), System information, Report, Trap log
• Local signalling: For P1 P2 power supplies 1 dual colour LED (green/yellow), for fault 1 LED (red), for ring manager 1 dual colour LED (green/yellow), for stand-by 1 LED (green), for link status 1 LED per channel (green), for ACT 1 LED per channel (yellow)
• Device status: Alarm output, 1 voltfree contact 1 A
• Alarm function: Power supply fault, Data link status, Redundancy ring fault, Switch fault
• Ethernet cabling system: TF switches
• Width: 4.37 in (111 mm)
• Height: 5.16 in (131 mm)
• Depth: 4.37 in (111 mm)
• Net Weight: 1.32 lb(US) (0.6 kg)
• Environment: Ambient Air Temperature for Operation: 32…140 °F (0…60 °C), Relative Humidity: 10…95 % non-condensing, IP Degree of Protection: IP20
• Directives: 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
• Standards: UL 508, EN/IEC 61131, IEC 61850-3
• Product certifications: CE, UL, RCM, ODVA EtherNet/IP, BV, GL
• Ordering and shipping details: Category: US1PC4118225

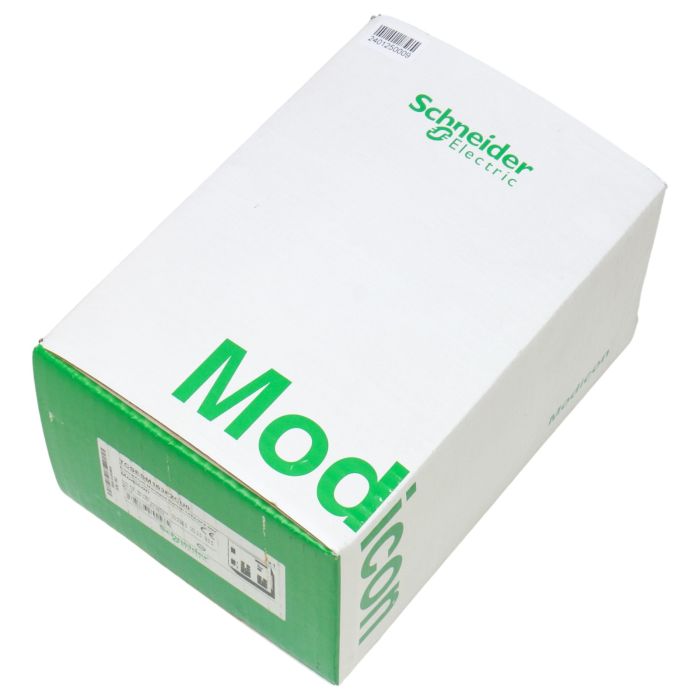

TCSESM163F2CU0 Schneider Electric is a reliable industrial automation product that can be used in various industrial applications. This item is available for purchase at PLC2Day, a leading online retailer for industrial automation products.
