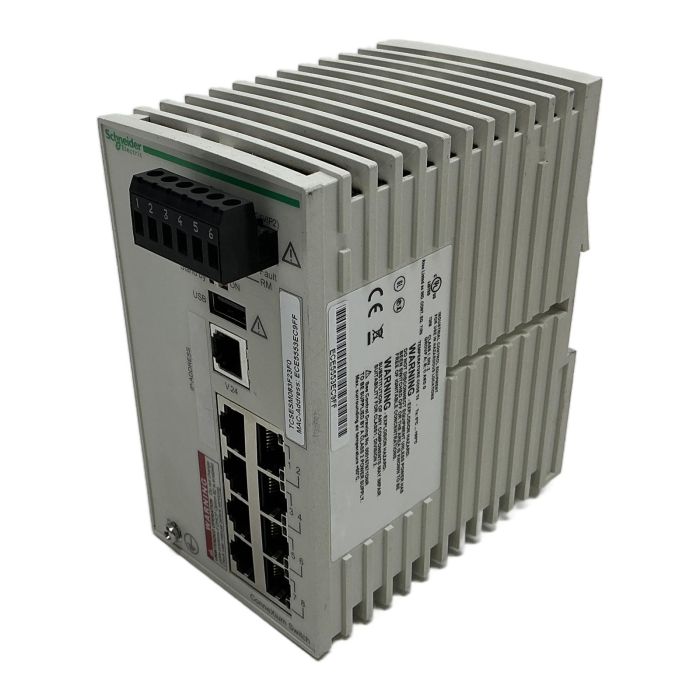

Schneider Electric TCSESM083F23F0 Managed Ethernet Switch

Description

The Schneider Electric TCSESM083F23F0 is a high-performance managed Ethernet switch from the Modicon ConneXium family. Designed for industrial applications, it provides reliable and secure network connectivity for critical automation systems. With 8 copper ports and support for the EtherNet/IP protocol, this switch is ideal for integrating PLCs, HMIs, and other devices on the factory floor.

Specifications

• Manufacturer: Schneider Electric
• Part Number: TCSESM083F23F0
• Product Range: ConneXium
• Type: Managed Ethernet Switch
• Number of Ports: 8x 10/100BASE-TX (RJ45)
• Supply Voltage (DC): 9.6 to 60 VDC
• Supply Voltage (AC): 18 to 30 VAC (50/60 Hz)
• Mounting: DIN Rail
• Communication Protocol: EtherNet/IP
• Operating Temperature: -10 to 60 deg C

Label Info

• Model: TCSESM083F23F0
• Product Name: ConneXium Managed Switch 8TX
• MAC Address: ECE5553EC9FF
• PV: 09, RL: 10, SV: 06.09

Application

This managed switch is suitable for a wide range of industrial networking applications, including manufacturing automation, process control, infrastructure projects, and any environment requiring a rugged and dependable network backbone.

Country of Origin

Made in Germany.

CO2 Impact

By choosing this pre-owned industrial part, you are contributing to a circular economy and avoiding the emission of approximately 30.8 kg of CO2, which would have been generated during the production of a new unit. This saving is comparable to the emissions from driving a standard car for 154 kilometers.

Availability

This product is obsolete and no longer produced by the manufacturer. However, we have it in stock and ready for immediate dispatch to help you maintain your existing systems. Order now from PLC2Day for expert support and fast delivery.

FAQ

As a managed switch, it supports various configurations including VLANs for network segmentation, QoS (Quality of Service) for prioritizing traffic, IGMP snooping for managing multicast traffic efficiently, and various security settings to protect your network.

Yes, the firmware can typically be upgraded via the USB port or the web-based management interface. As this model is obsolete, it is recommended to check the Schneider Electric support site for the last available firmware version to ensure optimal performance and security.

The switch is designed for industrial environments and has an operating temperature range of -10 to +60 degrees Celsius, as indicated on the UL certification label.
