ConneXium Managed Switch - 8 ports for copper: Specifications, Main, Range of produc, ConneXium, Product or component type, Ethernet TCP/IP managed switch, Concept, Transparent Ready, communication port protocol, Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, RS232, LLDP, Telnet, SNTP, MRP (Media Redundancy Protocol), Port Ethernet, 10/100BASE-TX - 8 port(s) copper cable, Maximum number of switches in cascade, Unlimited, Cybersecurity, Port hardening, Complementary, Integrated connection type, Shielded RJ45 copper cable, Transmission support medium, Twisted shielded pairs cable CAT 5E for copper cable, Maximum cable distance between devices, 100 m copper cable, Ethernet service, Configuration via web server, VLAN, Multicast filtering, Data stream control, IGMP Snooping, SNMP-Traps and SYSLOG, Communication service, TFTP, Quality of Service (QoS), Port monitoring, Port mirroring, Address conflict detection, Diagnostics run time, Signal contact, Self test, Maximum number of switches in a ring, 50, Redundancy, HiPER ring, RSTP, Redundant network coupling, [Us] rated supply voltage, 12...48 V, Supply voltage limits, 9.6…60 V DC SELV, 18…30 V AC SELV, Power consumption in W, 5.3 W, Electrical connection, Removable connector 6 ways power supply, mounting support, 35 mm symmetrical DIN rail, Marking, CE, UL, RCM, EtherNet/IP, Function available, Alarms (Traps), System information, Report, Trap log, Local signalling, 1 dual colour LED (green/yellow) for P1 P2 power supplies, 1 LED (red) for fault, 1 dual colour LED (green/yellow) for ring manager, 1 LED (green) for stand-by, 1 LED per channel (green) for link status, 1 LED per channel (yellow) for ACT, Device status, Alarm output, 1 voltfree contact 1 A, Alarm function, Power supply fault, Data link status, Redundancy ring fault, Switch fault, Ethernet cabling system, TF switches, Width, 74 mm, height, 131 mm, Depth, 111 mm, Net weight, 0.41 kg, Environment, ambient air temperature for operation, 0…60 °C, Relative humidity, 10…95 % non-condensing, IP degree of protection, IP20, Directives, 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, Standards, UL 508, EN/IEC 61131, IEC 61850-3, Product certifications, CE, UL, RCM, ODVA EtherNet/IP, BV, GL.

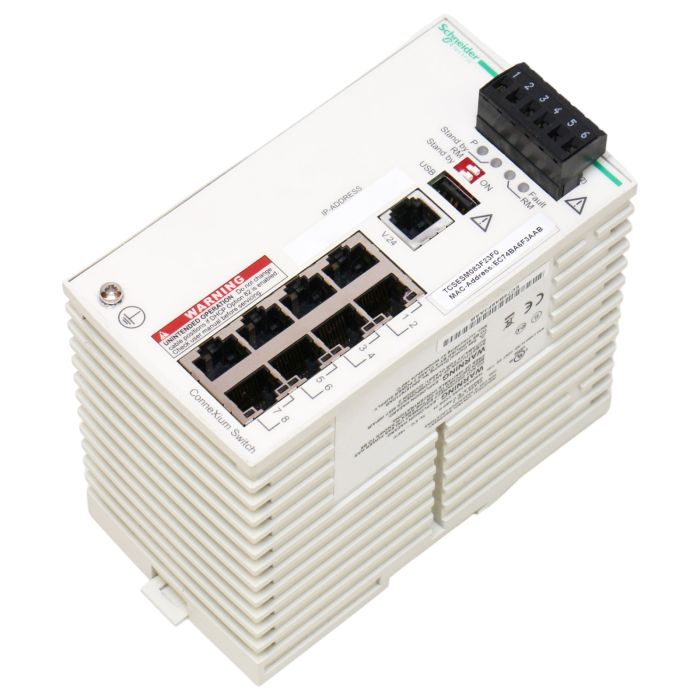

• ConneXium Managed Switch - 8 ports for copper:
• Specifications:
• Main
• Range of product
• ConneXium
• Product or component type
• Ethernet TCP/IP managed switch
• Concept
• Transparent Ready
• Communication port protocol
• Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, RS232, LLDP, Telnet, SNTP, MRP (Media Redundancy Protocol)
• Port Ethernet
• 10/100BASE-TX - 8 port(s) copper cable
• Maximum number of switches in cascade
• Unlimited
• Cybersecurity
• Port hardening
• Complementary
• Integrated connection type
• Shielded RJ45 copper cable
• Transmission support medium
• Twisted shielded pairs cable CAT 5E for copper cable
• Maximum cable distance between devices
• 100 m copper cable
• Ethernet service
• Configuration via web server, VLAN, Multicast filtering, Data stream control, IGMP Snooping, SNMP-Traps and SYSLOG
• Communication service
• TFTP, Quality of Service (QoS), Port monitoring, Port mirroring, Address conflict detection, Diagnostics run time, Signal contact, Self test
• Maximum number of switches in a ring
• 50
• Redundancy
• HiPER ring, RSTP, Redundant network coupling
• [Us] rated supply voltage
• 12...48 V
• Supply voltage limits
• 9.6…60 V DC SELV, 18…30 V AC SELV
• Power consumption in W
• 5.3 W
• Electrical connection
• Removable connector 6 ways power supply, mounting support, 35 mm symmetrical DIN rail
• Marking
• CE, UL, RCM, EtherNet/IP
• Function available
• Alarms (Traps), System information, Report, Trap log
• Local signalling
• 1 dual colour LED (green/yellow) for P1 P2 power supplies, 1 LED (red) for fault, 1 dual colour LED (green/yellow) for ring manager, 1 LED (green) for stand-by, 1 LED per channel (green) for link status, 1 LED per channel (yellow) for ACT
• Device status
• Alarm output, 1 voltfree contact 1 A
• Alarm function
• Power supply fault, Data link status, Redundancy ring fault, Switch fault
• Ethernet cabling system
• TF switches
• Width
• 74 mm
• Height
• 131 mm
• Depth
• 111 mm
• Net weight
• 0.41 kg
• Environment
• Ambient air temperature for operation
• 0…60 °C
• Relative humidity
• 10…95 % non-condensing
• IP degree of protection
• IP20
• Directives
• 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
• Standards
• UL 508, EN/IEC 61131, IEC 61850-3
• Product certifications
• CE, UL, RCM, ODVA EtherNet/IP, BV, GL

TCSESM083F23F0 Schneider Electric is a reliable industrial item that can be purchased at PLC2Day. This item is commonly used in various industrial applications, such as automation, control systems, and machine monitoring. Trust Schneider Electric for top-quality products that meet your industrial needs.
