Schneider Electric ConneXium Unmanaged Switch

Description

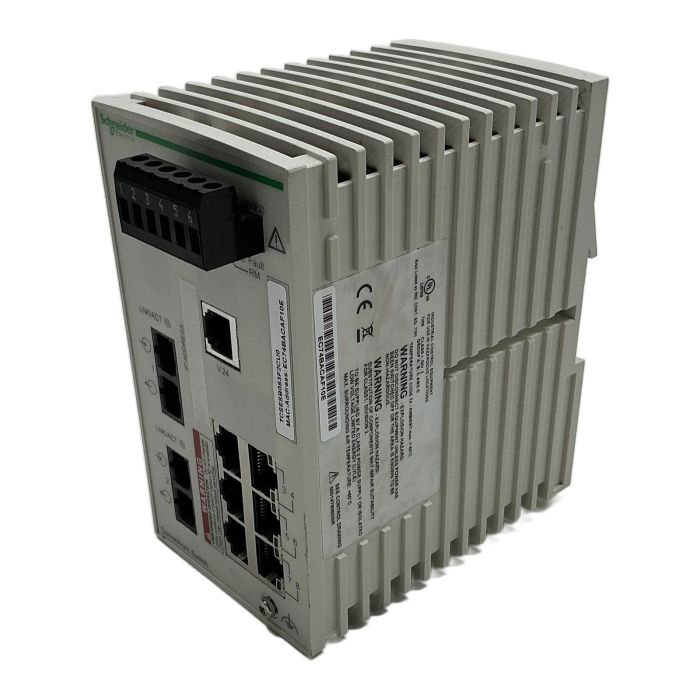

The TCSESB083F2CU0 is a ConneXium Basic unmanaged Ethernet switch by Schneider Electric. Designed for industrial applications, it offers a combination of copper and fiber optic ports to ensure reliable and flexible network connectivity. Its rugged design and support for redundant power supplies make it a dependable choice for critical automation systems.

Specifications

• Manufacturer: Schneider Electric
• Model: TCSESB083F2CU0
• Product Line: Modicon ConneXium
• Type: Unmanaged Industrial Ethernet Switch
• Input Voltage: 12 to 24 VDC (dual input for redundancy)
• Power Consumption: 0.8 A at 12V, 0.4 A at 24V
• Copper Ports: 6 x RJ45 10/100Base-T(X)
• Fiber Optic Ports: 2 x 100Base-FX multimode with ST connectors
• Operating Temperature: -10 to 60 deg C
• Mounting: DIN rail

Label Info

• SN: RN181708050
• MAC-Address: EC74BACAF10E
• DOM: 1817 (Week 17, 2018)

Application

Ideal for use in industrial control panels, factory automation, and infrastructure projects where reliable Ethernet communication over short and long distances is required. The fiber optic ports are particularly useful for applications requiring high noise immunity or network connections spanning several hundred meters.

Country of Origin

Made in Germany.

CO2 Impact

Choosing this pre-owned industrial switch over a new one avoids the emission of approximately 23.2 kg of CO2, which is equivalent to the carbon footprint of manufacturing a new unit. This saving is comparable to driving a standard car for over 116 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

This is an unmanaged switch. It is a plug-and-play device that does not require any configuration for basic network operation.

This model (6TX/2FX-MM) is equipped with two multimode (MM) fiber optic ports that use ST (Straight Tip) connectors.

Yes, the TCSESB083F2CU0 supports dual 12-24 VDC power inputs for redundancy, ensuring continuous operation if one power source fails.
