Network switch, Modicon Networking, basic managed, 6 ports for copper, 2 ports for fiber optic, multimode: , Latest Firmware, Modicon Switch TCSESB Firmware <=SV05.39 (SV05.39), See all software & firmware, This product is compatible with, Cables, Cables (6), Specifications, Main, Range of Product, ConneXium, Product or Component Type, Ethernet TCP/IP managed switch, Concept, Transparent Ready, communication port protocol, Ethernet TCP/IP, HTTP, HTTPS, SNMP, RS232, LLDP, SNTP, MRP (Media Redundancy Protocol), Port Ethernet, 10/100BASE-TX - 6 copper cable, 100BASE-FX - 2 fiber optic, Maximum number of switches in cascade, Unlimited, Cybersecurity, Role-based access control, Complementary, Integrated connection type, Shielded RJ45 copper cable, Duplex SC fiber optic, Transmission support medium, Twisted shielded pairs cable CAT 5E fiber optic, Multimode optical fiber copper cable, Maximum cable distance between devices, 328.08 ft (100 m) copper cable, Optic fiber length, 2.49 mile (4 km) 62.5/125 µm, 3.11 mile (5 km) 50/125 µm, Attenuation, 0…11 dB 62.2/125 µm), 0…8 dB 50/125 µm), Ethernet service, Configuration via web server, Multicast filtering, Data stream control, IGMP Snooping, SNMP-Traps and SYSLOG, Communication Service, TFTP, Quality of Service (QoS), Port monitoring, Port mirroring, Diagnostics run time, Signal contact, Self test, Maximum number of switches in a ring, 50, Redundancy, HiPER ring, RSTP, [Us] rated supply voltage, 12...24 V, Supply voltage limits, 9.6…32 V DC SELV, Power Consumption in W, 8 W, Electrical connection, Removable connector 6 ways power supply, Mounting Support, 35 mm symmetrical DIN rail, Marking, CE, UL, RCM, Function Available, System information, Local signalling, For P1 P2 power supplies 1 dual colour LED (green/yellow), for fault 1 LED (red), for ring manager 1 dual colour LED (green/yellow), for stand-by 1 LED (green), for channel diagnostic 1 dual colour LED (green/yellow), Device status, Alarm output, 1 voltfree contact 1 A, Alarm function, Power supply fault, Data link status, Switch fault, Redundancy ring fault, Switch fault, Incorrect configuration, Temperature threshold, Ethernet cabling system, TF switches, Width, 2.91 in (74 mm), Height, 5.16 in (131 mm), Depth, 4.37 in (111 mm), Net Weight, 0.90 lb(US) (0.41 kg), Environment, Ambient Air Temperature for Operation, 32…140 °F (0…60 °C), Relative Humidity, 10…95 % non-condensing, IP Degree of Protection, IP20, Directives, 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, Standards, UL 508, EN/IEC 61131, Product certifications, CE, UL, RCM

• Network switch
• Modicon Networking
• Basic managed
• 6 ports for copper
• 2 ports for fiber optic
• Multimode
• Latest Firmware
• Modicon Switch TCSESB Firmware <=SV05.39 (SV05.39)
• See all software & firmware
• Specifications:
• Main
• Range of Product: ConneXium
• Product or Component Type: Ethernet TCP/IP managed switch
• Concept: Transparent Ready
• Communication port protocol: Ethernet TCP/IP, HTTP, HTTPS, SNMP, RS232, LLDP, SNTP, MRP (Media Redundancy Protocol)
• Port Ethernet: 10/100BASE-TX - 6 copper cable, 100BASE-FX - 2 fiber optic
• Maximum number of switches in cascade: Unlimited
• Cybersecurity: Role-based access control
• Complementary: Integrated connection type, Shielded RJ45 copper cable, Duplex SC fiber optic
• Transmission Support:
• Twisted shielded pairs cable CAT 5E fiber optic
• Multimode optical fiber copper cable
• Maximum cable distance between devices: 328.08 ft (100 m) copper cable
• Optic fiber length: 2.49 mile (4 km) 62.5/125 µm, 3.11 mile (5 km) 50/125 µm
• Attenuation: 0…11 dB (62.2/125 µm), 0…8 dB (50/125 µm)
• Ethernet Service:
• Configuration via web server
• Multicast filtering
• Data stream control
• IGMP Snooping
• SNMP-Traps and SYSLOG
• Communication Service:
• TFTP
• Quality of Service (QoS)
• Port monitoring
• Port mirroring
• Diagnostics run time
• Signal contact
• Self test
• Maximum number of switches in a ring: 50
• Redundancy: HiPER ring, RSTP
• Electrical:
• [Us] rated supply voltage: 12...24 V
• Supply voltage limits: 9.6…32 V DC SELV
• Power Consumption in W: 8 W
• Electrical connection: Removable connector 6 ways power supply
• Mounting Support:
• 35 mm symmetrical DIN rail
• Marking:
• CE, UL, RCM
• Function Available:
• System information
• Local signalling
• For P1 P2 power supplies 1 dual colour LED (green/yellow), for fault 1 LED (red), for ring manager 1 dual colour LED (green/yellow), for stand-by 1 LED (green), for channel diagnostic 1 dual colour LED (green/yellow)
• Device status
• Alarm output: 1 voltfree contact 1 A
• Alarm function: Power supply fault, Data link status, Switch fault, Redundancy ring fault, Switch fault, Incorrect configuration, Temperature threshold
• Dimensions and Weight:
• Width: 2.91 in (74 mm)
• Height: 5.16 in (131 mm)
• Depth: 4.37 in (111 mm)
• Net Weight: 0.90 lb(US) (0.41 kg)
• Environment:
• Ambient Air Temperature for Operation: 32…140 °F (0…60 °C)
• Relative Humidity: 10…95 % non-condensing
• IP Degree of Protection: IP20
• Directives and Standards:
• 2014/35/EU - low voltage directive
• 2014/30/EU - electromagnetic compatibility
• Standards: UL 508, EN/IEC 61131
• Product certifications: CE, UL, RCM

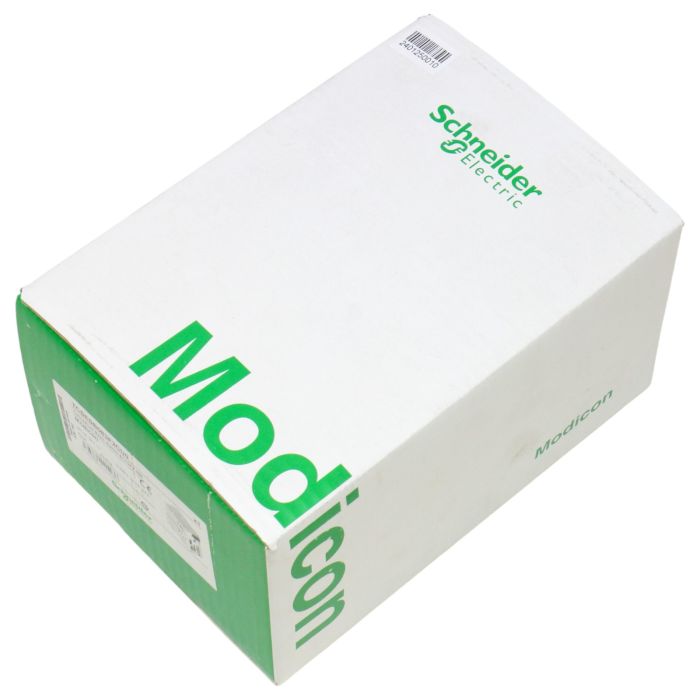

TCSESB083F2CU0 Schneider Electric is a versatile item that can be used in various industrial applications. It is available for purchase at PLC2Day, making it easily accessible for businesses looking to improve their operations.
