Standard power distribution module STB - 24 V D: Specifications, Main, Range of produc, Modicon STB distributed I/O solution, Product or component type, Standard power distribution module, Complementary, [Us] rated supply voltage, 24 V, Supply circuit type, DC, Power supply output current, 10 A at 45 °C (input/output circuit), 12 A at 30 °C (input/output circuit), 6 A at 70 °C (input/output circuit), 8 A at 60 °C (input/output circuit), 0…4 A at 30 °C (input circuit), 0…8 A at 30 °C (output circuit), Voltage range, 19.2...30 V DC sensor/actuator bus, Hot swapping fallback, Hot swapping illegal, Protection type, Built-in overcurrent protection, 10 A time-lag fuse for output circuit, Built-in overcurrent protection, 5 A time-lag fuse for input circuit, Reverse polarity for actuator bus, Permissible current, 30 A for 2 minutes grounding terminal, Voltage detection threshold, < 15 V +/-1 DC IN/OUT LED lit, >= 15 V +/-1 DC IN/OUT LED non lit, Product compatibility, Mounting base STBXBA2200, Marking, CE, Overvoltage category, II, Status LED, 1 LED (green) actuator bus power supply (OUT), 1 LED (green) sensor bus power supply (IN), height, 18.4 mm, Width, 125 mm, Net weight, 0.13 kg, Environment, product certifications, UL, CSA, FM Class 1 Division 2, Pollution degree, 2 conforming to IEC 60664-1, Operating altitude, <= 2000 m, IP degree of protection, IP20 conforming to EN 61131-2 class 1, Ambient air temperature for operation, 0…60 °C (without derating), -25…70 °C (with derating factor), Ambient air temperature for storage, -40…85 °C, Relative humidity, 95 % at 60 °C without condensation, Vibration resistance, +/-0.35 mm at 10…58 Hz, 3 gn at 58…150 Hz on 35 x 7.5 mm symmetrical DIN rail, 5 gn at 58…150 Hz on 35 x 15 mm symmetrical DIN rail, Shock resistance, 30 gn for 11 ms conforming to IEC 88 reference 2-27, Include: STBXBA2200: Modicon STB - mounting base - for power distribution module - 18.4 mm, Specifications, Main, Range of produc, Modicon STB distributed I/O solution, Accessory / separate part category, Mounting accessories, accessory / separate part type, Base, Accessory / separate part designation, Mounting base, Accessory / separate part destination, Power distribution module, Quantity per set, Set of 1, Complementary, Product compatibility, STBPDT3100, STBPDT3105, STBPDT2100, STBPDT2105, mounting support, DIN rail, Width, 18.4 mm, Net weight, 0.035 kg

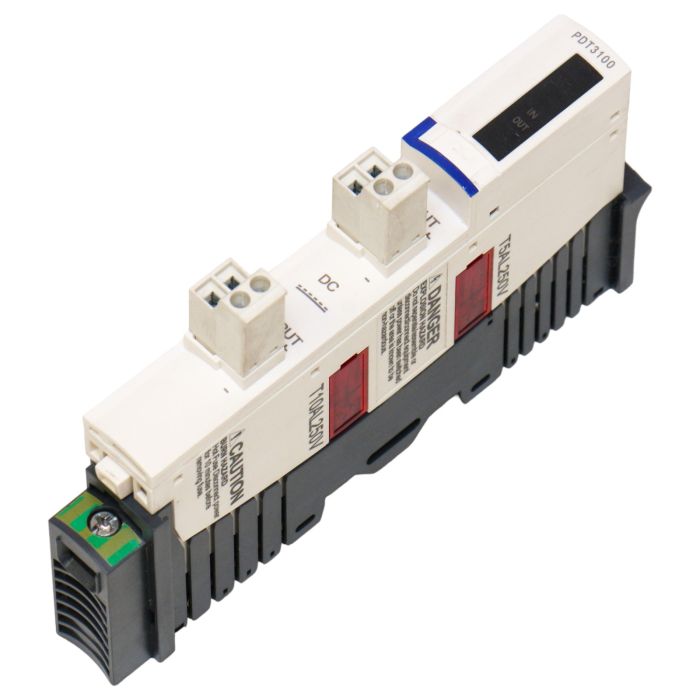

• Product or component type: Standard power distribution module
• [Us] rated supply voltage: 24 V
• Supply circuit type: DC
• Power supply output current:
  • 10 A at 45 °C (input/output circuit)
  • 12 A at 30 °C (input/output circuit)
  • 6 A at 70 °C (input/output circuit)
  • 8 A at 60 °C (input/output circuit)
  • 0…4 A at 30 °C (input circuit)
  • 0…8 A at 30 °C (output circuit)
• Voltage range: 19.2...30 V DC sensor/actuator bus
• Protection type: Built-in overcurrent protection, 10 A time-lag fuse for output circuit, Built-in overcurrent protection, 5 A time-lag fuse for input circuit, Reverse polarity for actuator bus
• Permissible current: 30 A for 2 minutes grounding terminal
• Voltage detection threshold: < 15 V +/-1 DC IN/OUT LED lit, >= 15 V +/-1 DC IN/OUT LED non lit
• Environment:
  • Product certifications: UL, CSA, FM Class 1 Division 2
  • Pollution degree: 2 conforming to IEC 60664-1
  • Operating altitude: <= 2000 m
  • IP degree of protection: IP20 conforming to EN 61131-2 class 1
  • Ambient air temperature for operation: 0…60 °C (without derating), -25…70 °C (with derating factor)
  • Ambient air temperature for storage: -40…85 °C
  • Relative humidity: 95 % at 60 °C without condensation
  • Vibration resistance: +/-0.35 mm at 10…58 Hz, 3 gn at 58…150 Hz on 35 x 7.5 mm symmetrical DIN rail, 5 gn at 58…150 Hz on 35 x 15 mm symmetrical DIN rail
  • Shock resistance: 30 gn for 11 ms conforming to IEC 88 reference 2-27
