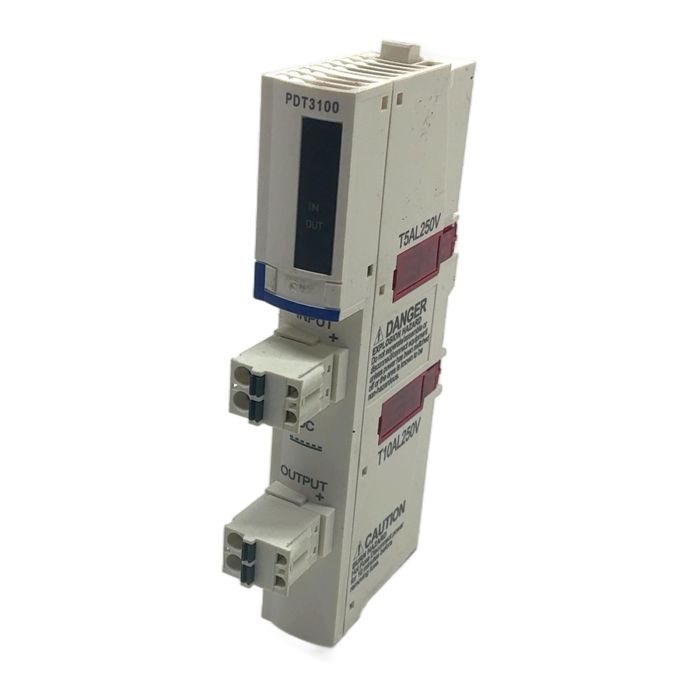

Schneider Electric STBPDT3100 Power Distribution Module

Description

The STBPDT3100 is a Power Distribution Module (PDM) designed for the Schneider Electric Advantys STB distributed I/O platform. It provides a reliable and organized method for distributing 24V DC power to sensors and actuators within an automation system. The module features two independent, fuse-protected power segments, enhancing system safety and simplifying troubleshooting by isolating faults.

Specifications

• Manufacturer: Schneider Electric
• Product Line: Advantys STB
• Model: STB PDT 3100
• Function: 24V DC Power Distribution Module
• Nominal Voltage: 24V DC
• Output Channels: 2, individually fuse-protected
• Fuse Size: 5 x 20 mm
• Mounting: DIN Rail (as part of an STB island)

Label Info

• Model: STB PDT 3100
• SN: 8B200291645
• DOM: 2002

Application

This module is ideal for applications requiring segregated power distribution within a control cabinet, such as separating sensor power from actuator power. It is commonly used in material handling, packaging machinery, and other industrial automation processes that utilize the Advantys STB I/O system.

Country of Origin

Made in Indonesia.

CO2 Impact

Opting for a refurbished STBPDT3100 module saves approximately 4.8 kg of CO2 emissions compared to manufacturing a new one. This choice supports a circular economy and reduces industrial waste.

Availability

This is an obsolete item, available from our stock while supplies last. Order now from PLC2Day for expert support and fast delivery.

FAQ

Its primary function is to take a 24V DC input and distribute it into two separate, fuse-protected output channels. This allows for safe and organized power delivery to sensors and actuators connected to the I/O modules on the same island, preventing a fault in one circuit from affecting the other.

The module uses standard 5 x 20 mm glass or ceramic fuses. The required amperage rating depends on the load of the connected devices, but the side label indicates T5AL250V and T10AL250V, suggesting time-delay fuses up to 10A are supported.

No, the STBPDT3100 is specifically designed for the older Advantys STB system architecture. It is not mechanically or electrically compatible with the newer Modicon STB, TM3, or TM5 platforms from Schneider Electric.
