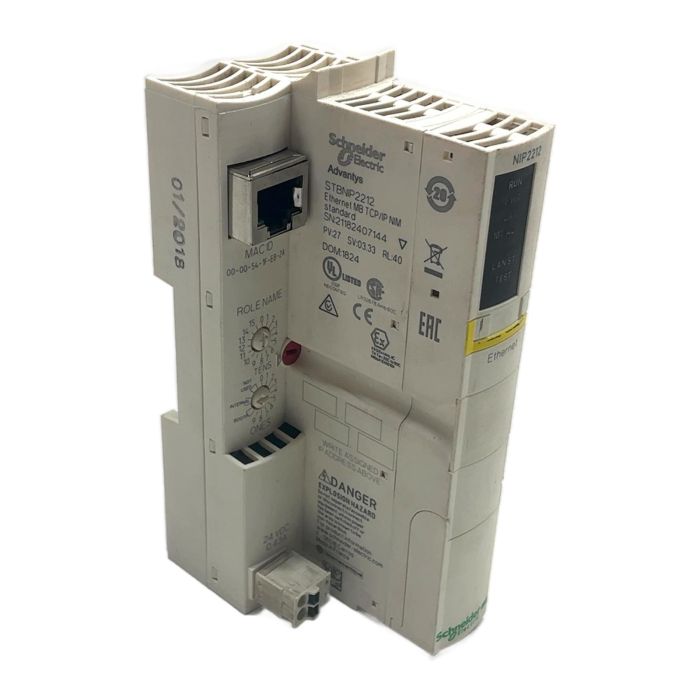

Schneider Electric STBNIP2212 Ethernet Module

Description

The STBNIP2212 is a standard Ethernet TCP/IP Network Interface Module (NIM) for the Schneider Electric Advantys STB distributed I/O system. It enables communication between the I/O island and a master controller or SCADA system over a standard Ethernet network, supporting speeds of 10/100 Mbit/s. This module is essential for integrating sensor and actuator data into a wider control network.

Specifications

• Manufacturer: Schneider Electric
• Product Range: Advantys STB / Modicon STB
• Type: STBNIP2212
• Communication Protocol: Modbus TCP/IP
• Transmission Rate: 10/100 Mbit/s
• Supply Voltage: 24 V DC
• Connectors: 1x RJ45

Label Info

• Model: STBNIP2212
• SN: 21182407144
• PV: 27
• SV: 03.33
• RL: 40

Application

This module is typically used in industrial automation applications such as manufacturing lines, material handling systems, and process control where distributed I/O is required. It acts as the head of an I/O island, collecting data from various I/O modules and transmitting it over an Ethernet network.

Country of Origin

Manufactured in France.

CO2 Impact

By purchasing this pre-owned STBNIP2212, you are preventing the emission of approximately 8.0 kg of CO2. This is comparable to the savings from driving a car for 40 kilometers. Choosing refurbished automation parts is a smart decision for both your budget and the planet.

Availability

This item is an obsolete component but is available from our stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

The STBNIP2212 obtains its IP address based on the rotary switch settings and the MAC address. By default, if no DHCP or BootP server is found, it will derive an IP address from its MAC address in the format 84.x.x.x.

Yes, the STBNIP2212 has an embedded web server that allows for configuration and diagnostics using a standard web browser. You can access it by typing the module's IP address into the browser's address bar.

The Advantys STB island is typically configured using Schneider Electric's Advantys Configuration Software or integrated within their programming environments like Unity Pro (now EcoStruxure Control Expert).
