Standard Network Interface Module STB - Profibus DP - 9.6 kbit/s: Specifications, Main, Range of produc, Modicon STB distributed I/O solution, Product or component type, Standard Network Interface Module, Integrated connection type, Profibus DP conforming to DIN 19245 part 1 and 3 9-way female RS485 SUB-D 1 twisted shielded pair (bus), Profibus DP conforming to DIN 19245 part 1 and 3 HE-13 (RS232 port), Profibus DP conforming to DIN 19245 part 1 and 3 8-way female (RS232 port), Number of segments, 1 primary, maximum 6 extensions, Number of slave, 125, Transmission rate, 12 Mbit/s for bus length of 0…800 m with 3 repeaters, 9.6 kbit/s for bus length of 0…4800 m with 3 repeaters, 12 Mbit/s for bus length of 0…200 m, 9.6 kbit/s for bus length of 0…1200 m, structure type, Industrial field bus DP V.0, Complementary, Number of addressable I/O module, 0…32 per island, Communication service, Diagnostics, Read/write DP slave I/O data, Configuration control, Slave configuration, [Us] rated supply voltage, 24 V DC, Power supply type, SELV, Maximum supply current, 700 A, Supply voltage limits, 19.2…30 V, Input current, 430 mA for supply circuit, Nominal output current, 0.575 A at 60…70 °C, 1.2 A, Maximum output impedance, 0.05 Ohm at 100000 kHz, Output voltage, 5.25 V DC (tolerance: +/- 0.21 %) for logic bus, Marking, CE, Overvoltage category, II, Status LED, 1 LED (green) BUSFLT, 1 LED (green) island state (RUN), 1 LED (green) power supply (PWR), 1 LED (red) module error (ERR), 1 LED (yellow) test mode, Depth, 70 mm, height, 40 mm, Width, 128.3 mm, Environment, Electromagnetic compatibility, Immunity to electromagnetic interference conforming to IEC 61131-2, product certifications, C-Tick, CSA, ATEX Cat 3G, FM Class 1 Division 2, UL, Pollution degree, 2 conforming to IEC 60664-1, Operating altitude, <= 2000 m, IP degree of protection, IP20 conforming to IEC 61131-2 class 1, Ambient air temperature for operation, 0…60 °C (without derating), -25…70 °C (with derating factor), Ambient air temperature for storage, -40…85 °C, Relative humidity, 95 % at 60 °C without condensation, Vibration resistance, 3 gn at 58…150 Hz on 35 x 7.5 mm symmetrical DIN rail, 5 gn at 58…150 Hz on 35 x 15 mm symmetrical DIN rail, +/-0.35 mm at 10…58 Hz, Shock resistance, 30 gn for 11 ms conforming to IEC 88 reference 2-27.

• Product or component type: Standard Network Interface Module
• Integrated connection type: Profibus DP conforming to DIN 19245 part 1 and 3 9-way female RS485 SUB-D 1 twisted shielded pair (bus), Profibus DP conforming to DIN 19245 part 1 and 3 HE-13 (RS232 port), Profibus DP conforming to DIN 19245 part 1 and 3 8-way female (RS232 port)
• Number of segments: 1 primary, maximum 6 extensions
• Number of slave: 125
• Transmission rate: 12 Mbit/s for bus length of 0…800 m with 3 repeaters, 9.6 kbit/s for bus length of 0…4800 m with 3 repeaters, 12 Mbit/s for bus length of 0…200 m, 9.6 kbit/s for bus length of 0…1200 m
• Structure type: Industrial field bus DP V.0
• Supply voltage: 24 V DC
• Power supply type: SELV
• Maximum supply current: 700 A
• Depth: 70 mm
• Height: 40 mm
• Width: 128.3 mm
• Environment: Electromagnetic compatibility, Immunity to electromagnetic interference conforming to IEC 61131-2
• IP degree of protection: IP20 conforming to IEC 61131-2 class 1
• Ambient air temperature for operation: 0…60 °C (without derating), -25…70 °C (with derating factor)
• Ambient air temperature for storage: -40…85 °C
• Relative humidity: 95 % at 60 °C without condensation
• Vibration resistance: 3 gn at 58…150 Hz on 35 x 7.5 mm symmetrical DIN rail, 5 gn at 58…150 Hz on 35 x 15 mm symmetrical DIN rail, +/-0.35 mm at 10…58 Hz
• Shock resistance: 30 gn for 11 ms conforming to IEC 88 reference 2-27

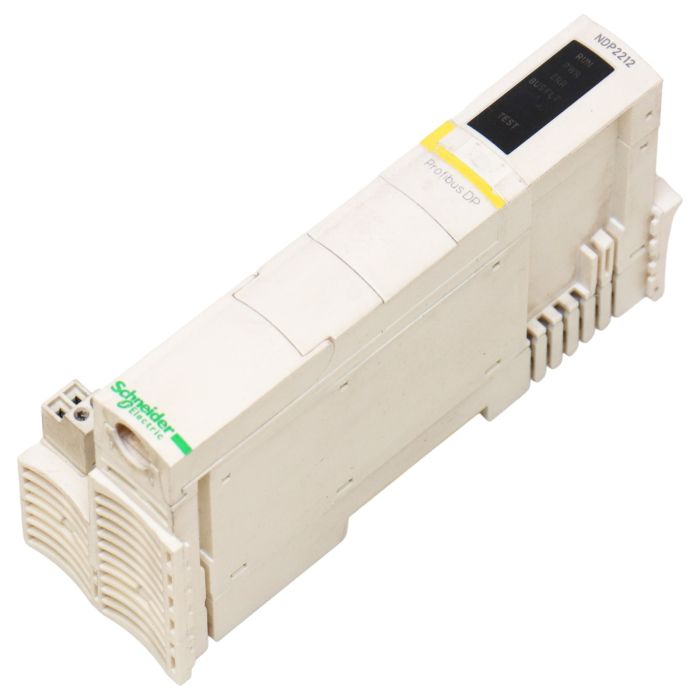

STBNDP2212 Schneider Electric is a versatile industrial automation product that can be used in a wide range of applications. It is perfect for controlling machines, processes, and systems in industries such as manufacturing, packaging, and energy. You can purchase this item at PLC2Day for all your automation needs.
