Standard Network Interface Module STB - Profibus DP - 9.6 kbit/s: Specifications, Main, Range of produc, Modicon STB distributed I/O solution, Product or component type, Standard Network Interface Module, Integrated connection type, Profibus DP DIN 19245 part 1 and 3 9-way female RS485 SUB-D 1 twisted shielded pair bus), Profibus DP DIN 19245 part 1 and 3 HE-13 RS232 port), Profibus DP DIN 19245 part 1 and 3 8-way female RS232 port), Number of segments, 1 primary, maximum 6 extensions, Number of slave, 125, Transmission rate, 12 Mbit/s 0.00…2624.67 ft (0…800 m) with 3 repeaters, 9.6 kbit/s 0.00…15748.03 ft (0…4800 m) with 3 repeaters, 12 Mbit/s 0.00…656.17 ft (0…200 m), 9.6 kbit/s 0.00…3937.01 ft (0…1200 m), structure type, Industrial field bus DP V.0, Complementary, Number of addressable I/O module, 0…32 per island, Communication service, Diagnostics, Read/write DP slave I/O data, Configuration control, Slave configuration, [Us] rated supply voltage, 24 V DC, Power supply type, SELV, Maximum supply current, 700 A, Supply voltage limits, 19.2…30 V, Input current, 430 mA supply circuit, Nominal output current, 0.575 A 140…158 °F (60…70 °C), 1.2 A, Maximum output impedance, 0.05 Ohm 100000 kHz, Output voltage, 5.25 V DC +/- 0.21 %)logic bus, Marking, CE, Overvoltage category, II, Status LED, 1 LED (green) BUSFLT, 1 LED (green) island state (RUN), 1 LED (green) power supply (PWR), 1 LED (red) module error (ERR), 1 LED (yellow) test mode, Depth, 2.76 in (70 mm), height, 1.57 in (40 mm), Width, 5.05 in (128.3 mm), Environment, Electromagnetic compatibility, Immunity to electromagnetic interference IEC 61131-2, product certifications, C-Tick, CSA, ATEX Cat 3G, FM Class 1 Division 2, UL, Pollution degree, 2 IEC 60664-1, Operating altitude, <= 2000 m, IP degree of protection, IP20 IEC 61131-2 class 1, Ambient air temperature for operation, 32…140 °F (0…60 °C) without derating), -13…158 °F (-25…70 °C) with derating factor), Ambient air temperature for storage, -40…185 °F (-40…85 °C), Relative humidity, 95 % 140 °F (60 °C) without condensation, Vibration resistance, 3 gn 58…150 Hz 35 x 7.5 mm symmetrical DIN rail, 5 gn 58…150 Hz 35 x 15 mm symmetrical DIN rail, +/-0.35 mm 10…58 Hz, Shock resistance, 30 gn 11 ms IEC 88 reference 2-27.

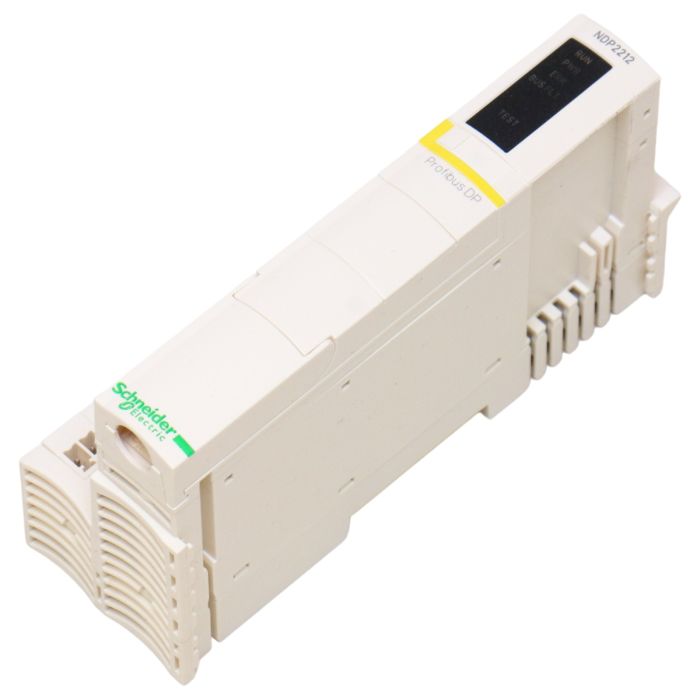

• Product or component type: Standard Network Interface Module
• Integrated connection type: Profibus DP DIN 19245 part 1 and 3 9-way female RS485 SUB-D 1 twisted shielded pair bus
• Number of segments: 1 primary, maximum 6 extensions
• Number of slave: 125
• Transmission rate: 12 Mbit/s 0.00…2624.67 ft (0…800 m) with 3 repeaters, 9.6 kbit/s 0.00…15748.03 ft (0…4800 m) with 3 repeaters
• Structure type: Industrial field bus DP V.0
• Communication service: Diagnostics, Read/write DP slave I/O data, Configuration control, Slave configuration
• [Us] rated supply voltage: 24 V DC
• Power supply type: SELV
• Maximum supply current: 700 A
• Supply voltage limits: 19.2…30 V
• Output voltage: 5.25 V DC +/- 0.21 %)logic bus
• Marking: CE
• Overvoltage category: II
• Status LED: 1 LED (green) BUSFLT, 1 LED (green) island state (RUN), 1 LED (green) power supply (PWR), 1 LED (red) module error (ERR), 1 LED (yellow) test mode
• Depth: 2.76 in (70 mm)
• Height: 1.57 in (40 mm)
• Width: 5.05 in (128.3 mm)
• Environment: Electromagnetic compatibility, Immunity to electromagnetic interference IEC 61131-2
• Product certifications: C-Tick, CSA, ATEX Cat 3G, FM Class 1 Division 2, UL
• Pollution degree: 2 IEC 60664-1
• Operating altitude: <= 2000 m
• IP degree of protection: IP20 IEC 61131-2 class 1
• Ambient air temperature for operation: 32…140 °F (0…60 °C) without derating), -13…158 °F (-25…70 °C) with derating factor
• Ambient air temperature for storage: -40…185 °F (-40…85 °C)
• Relative humidity: 95 % 140 °F (60 °C) without condensation
• Vibration resistance: 3 gn 58…150 Hz 35 x 7.5 mm symmetrical DIN rail, 5 gn 58…150 Hz 35 x 15 mm symmetrical DIN rail, +/-0.35 mm 10…58 Hz
• Shock resistance: 30 gn 11 ms IEC 88 reference 2-27
