Schneider Electric STB EHC 3020 High Speed Counter

Description

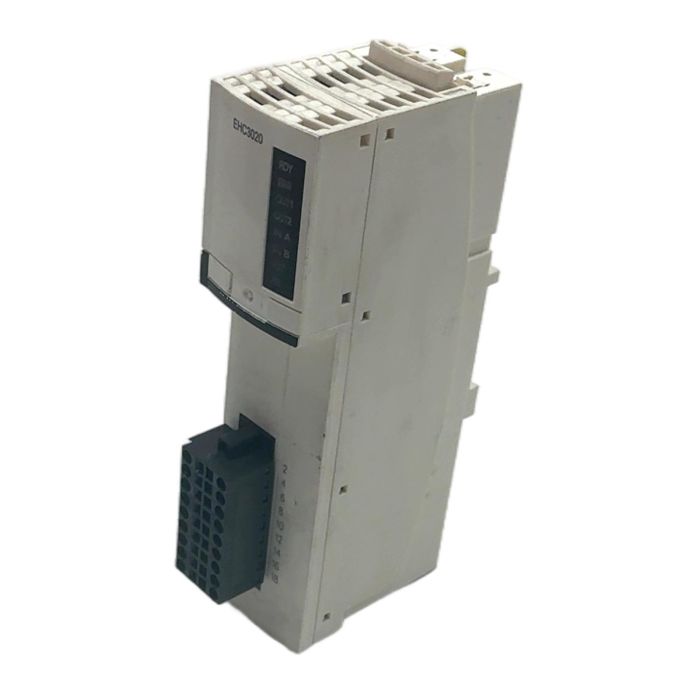

The STB EHC 3020 is a specialized high-speed counter module for the Schneider Electric Advantys STB distributed I/O system. It is engineered to handle fast pulse trains from incremental encoders and other sensors, making it ideal for applications requiring precise measurement of position, speed, or length. This module offers one channel with a counting frequency of up to 40 kHz.

Specifications

• Manufacturer: Schneider Electric
• Product Line: Advantys STB
• Type: High Speed Counter Module
• Model: STB EHC 3020
• Input Channels: 1
• Signal Type: Incremental
• Counting Frequency: 40 kHz
• Supply Voltage: 24V DC

Label Info

• Model: STB EHC 3020
• SN: 88173991221
• DOM: 1739 (Week 39, 2017)

Application

This module is typically used in conveyor systems, material handling, packaging machinery, and automated assembly lines where accurate, high-speed counting is critical for process control.

Country of Origin

Made in Indonesia.

CO2 Impact

Choosing this pre-owned module over a new one prevents the emission of approximately 4.0 kg of CO2, contributing to a more sustainable industrial environment.

Availability

This is an obsolete item but is available from our stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

The STB EHC 3020 is exclusively designed for the Schneider Electric Advantys STB distributed I/O platform. It connects to an Advantys STB Network Interface Module (NIM) which then communicates with a master PLC over various fieldbuses like Modbus, CANopen, or Ethernet.

This specific module, the EHC 3020, is an incremental counter. It is designed to count pulses from single-channel (A-phase) or dual-channel (A/B phase) incremental encoders. It does not support more complex modes like quadrature encoding for direction sensing out-of-the-box, which would typically require a more advanced module.

Configuration of the Advantys STB island, including the STB EHC 3020 module, is typically done using Schneider Electric's Advantys Configuration Software or within the programming environment of the master PLC, such as Unity Pro or SoMachine, depending on the network and controller used.
