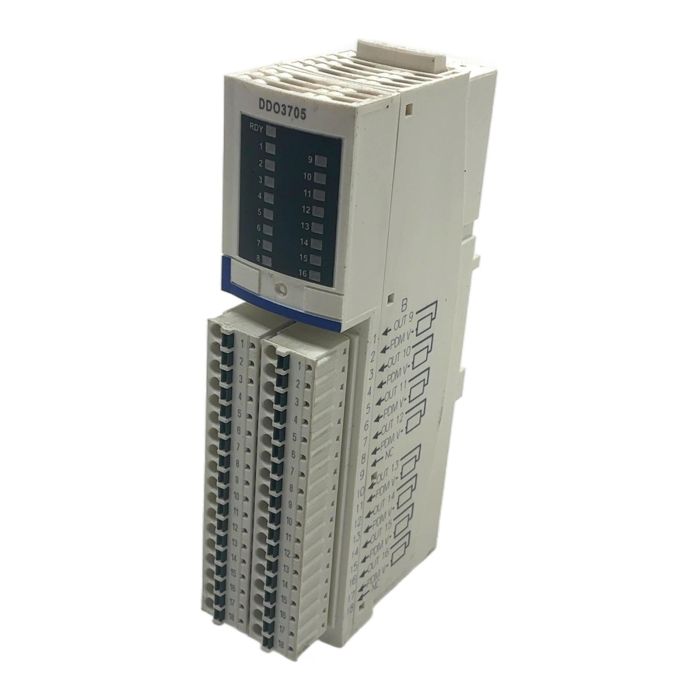

Schneider Electric STB DDO 3705 - Advantys 16-Channel Digital Output Module

Description

The Schneider Electric STB DDO 3705 is a standard digital output module for the Advantys STB distributed I/O system. It offers 16 source-type outputs, each capable of delivering 0.5A at 24VDC. This module is ideal for controlling a wide range of DC loads in industrial automation applications, providing reliable performance and built-in overcurrent protection for enhanced system safety.

Specifications

• Manufacturer: Schneider Electric
• Product Line: Advantys STB
• Model: STB DDO 3705
• Number of Outputs: 16
• Output Voltage: 24V DC
• Output Type: Source (Positive Logic)
• Current per Channel: 0.5 A
• Protection: Overcurrent Protection (OCP)

Label Info

• Part Number: STB DDO 3705
• Serial Number: 8B182199216
• Date of Manufacture (DOM): 1821 (Week 21, 2018)

Application

This module is commonly used in manufacturing, material handling, and process control systems to drive actuators such as solenoid valves, contactors, relays, and indicator lights. Its high channel density makes it suitable for applications requiring numerous discrete control signals.

Country of Origin

Made in Indonesia.

CO2 Impact

By purchasing this pre-owned module instead of a new one, you are contributing to a circular economy and preventing approximately 4.8 kg of CO2 emissions, an amount equivalent to the emissions from driving a standard car for 24 kilometers.

Availability

This item is in stock and available for worldwide shipping. All our products are tested and come with a warranty. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What is the function of the Over Current Protection (OCP) on the STB DDO 3705?

The OCP feature automatically shuts down an individual output channel if the current exceeds the 0.5A limit, protecting both the module and the connected device from damage due to short circuits or overloads.

Yes, but it requires an Advantys STB network interface module (NIM), such as the STBNIP2212 (Ethernet) or STBNDP2212 (Profibus DP), to connect the STB island to the PLC's communication bus.

A source output (also known as PNP) provides a positive voltage (24VDC) to the load. When the output is activated, current flows from the module, through the load, and to the common ground (0V).
