Basic digital input module, Modicon STB, 24V DC, 16I: Specifications, Main, Range of produc, Modicon STB distributed I/O solution, Product or component type, Basic digital input module, Discrete input number, 16, Discrete input voltage, 24 V, discrete input voltage type, DC, Complementary, Input voltage limits, 11...30 V at state 1, -3...5 V at state 0, Permissible voltage, 30 V, Discrete input current, 4.5 mA, Current state 0 guaranteed, <= 1.5 mA, current state 1 guaranteed, >= 2.5 mA, Discrete input logic, Positive, Response time, 2 ms off-to-on, 2 ms on-to-off, Protection type, Power protection integrated fuse on PDM time lag 5 A, Input protection resistor-limited, Reverse polarity protection, Insulation between channels and logic bus, 1500 V for 1 minute, Cold swapping, Yes, hot swapping, Yes for basic NIMs, Product compatibility, I/O base STBXBA3000, Power distribution module STBPDT3100/3105, [Us] rated supply voltage, 24 V DC, supply, Power distribution module, Current consumption, 100 mA at 5 V DC for logic bus, Marking, CE, Overvoltage category, II, Status LED, 1 LED (green) module status (RDY), 1 LED per channel (green) channel status (IN1 to IN16), Depth, 65.1 mm, height, 18.4 mm, Width, 125 mm, Net weight, 0.086 kg, Environment, Standards, IEC 61131-2 type 3, product certifications, FM Class 1 Division 2, CSA, UL, Pollution degree, 2 conforming to IEC 60664-1, Operating altitude, <= 2000 m, IP degree of protection, IP20 conforming to IEC 61131-2 class 1, Ambient air temperature for operation, -25…70 °C (without derating), Ambient air temperature for operation, 32...140 °F without derating, Ambient air temperature for storage, -40…85 °C without derating, Ambient air temperature for storage, -40...185 °F without derating, Relative humidity, 95 % at 60 °C without condensation, Vibration resistance, 3 gn at 58…150 Hz on 35 x 7.5 mm symmetrical DIN rail, 5 gn at 58…150 Hz on 35 x 15 mm symmetrical DIN rail, +/-0.35 mm at 10…58 Hz, Shock resistance, 30 gn for 11 ms conforming to IEC 88 reference 2-27, Include: STBXBA3000: Mounting base, Modicon STB, for IO module, 28.1mm,, Specifications, Main, Range of produc, Modicon STB distributed I/O solution, Accessory / separate part category, Mounting accessories, accessory / separate part type, Base, Accessory / separate part designation, Mounting base, Accessory / separate part destination, I/O module, Counter module, Complementary, Product compatibility, STBDDI3725, STBDRA3290, STBDDO3705, Width, 28.1 mm, Net weight, 0.048 kg, Include: STB connector he10 telefast - STBXTS6610: SPECIFICATIONS, Search for specification,, Class Rectangular connector, set (industrial connector), Show all products of this class, Brand Schneider Electric, Show all Schneider Electric products, Series Modicon STB, Show all products in this series, Housing material Other, Pollution degree 2, Flammability class of insulation material according to UL 94 Other, EMC version No, Coating housing Other, Execution of electrical connection Other, Depth 16mm, Width 17mm, Overvoltage category II, With seal No, With earth conductor No, Cable feed position Other, Degree of protection (IP), mounted IP20, Insulation body material Other, Contact coating material Other, Number of poles 0, Number of pipe entries 0, Contact execution Other, Mounting method Stake, Nom. (measuring) current In 0 A, Number of plug-in contact rows 0, Material contact Other non-copper alloys, Lock type Other, Height 33.08mm

• Product Features and Specifications:
• Main:
• Range of product: Modicon STB distributed I/O solution
• Product or component type: Basic digital input module
• Discrete input number: 16
• Discrete input voltage: 24 V
• Discrete input voltage type: DC
• Specifications:
• Input voltage limits: 11-30 V at state 1, -3-5 V at state 0
• Permissible voltage: 30 V
• Discrete input current: 4.5 mA
• Current state 0 guaranteed: <= 1.5 mA
• Current state 1 guaranteed: >= 2.5 mA
• Discrete input logic: Positive
• Response time: 2 ms off-to-on, 2 ms on-to-off
• Protection type: Power protection integrated fuse on PDM time lag 5 A
• Input protection: Resistor-limited, Reverse polarity protection
• Insulation: 1500 V for 1 minute between channels and logic bus
• Cold swapping: Yes, hot swapping: Yes for basic NIMs
• Environment:
• Standards: IEC 61131-2 type 3
• Product certifications: FM Class 1 Division 2, CSA, UL
• Pollution degree: 2 conforming to IEC 60664-1
• Operating altitude: <= 2000 m
• IP degree of protection: IP20 conforming to IEC 61131-2 class 1
• Ambient air temperature for operation: -25…70 °C (without derating)
• Ambient air temperature for storage: -40…85 °C (without derating)
• Relative humidity: 95% at 60 °C without condensation
• Vibration resistance: 3 gn at 58-150 Hz, 5 gn at 58-150 Hz
• Shock resistance: 30 gn for 11 ms
• Include: STBXBA3000:
• Main:
• Range of product: Modicon STB distributed I/O solution
• Accessory/separate part category: Mounting accessories
• Accessory/separate part type: Base
• Width: 28.1 mm
• Net weight: 0.048 kg
• Include: STB connector he10 telefast - STBXTS6610:
• Specifications:
• Class: Rectangular connector set (industrial connector)
• Brand: Schneider Electric
• Series: Modicon STB
• Depth: 16mm
• Width: 17mm
• Height: 33.08mm

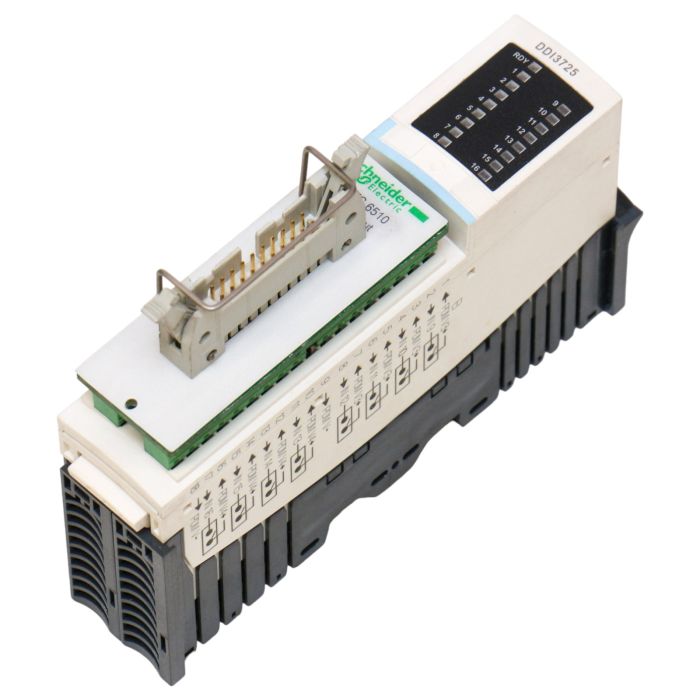

STBDDI3725 + STBXBA3000 + STBXTS6610 Schneider Electric is a versatile industrial automation solution ideal for various industrial applications. This item can be purchased at PLC2Day, providing seamless integration and reliable performance in your industrial processes.
