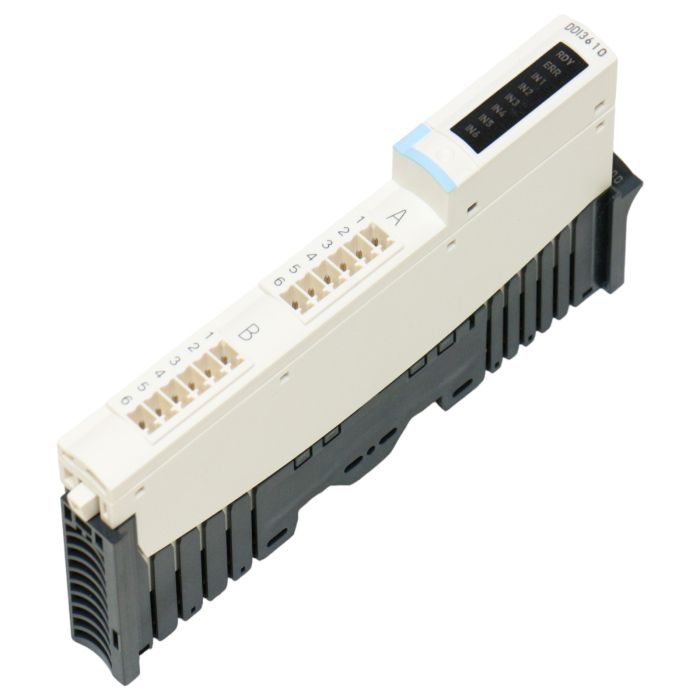

Modicon STB - Standard set fieldbus - 6 digital inputs - 24V DC: Specifications, Head, range of product, Modicon STB distributed I/O solution, product or component type, Digital Standard Input Kit, composition kit, STBDDI3610 module, STBXTS2100, 6 terminals with spring, STBXTS1100, 6 terminals with screw, STBXBA1000 base, number of digital inputs, 6, digital input voltage, 24 V, type of digital input voltage, D.C, Complementary, input voltage limits, 15...30 V at status 1, -3...5 V at status 0, Acceptable input voltage, 30 V, absolute maximum voltage, 56V 1.3ms, digital input stream, 4.5mA, Current state 0 guaranteed, <= 0.5 mA, current state 1 guaranteed, >= 2.5 mA, digital input logic, Positive or negative, response time, 1.21 ms on-to-off, 1.74 ms on-to-off, type of protection, Current protection fuse integrated on PDM time shift 10 A, Input resistance protection limited, Reverse polarity protection, isolation between channels and logic bus, 1500 V for 1 minute, cold swapping, Yes, hot swapping, Yes for standard NIMs, Input filtering, 1ms, product compatibility, I/O base STBXBA1000, Power distribution module STBPDT3100/3105, Us rated supply voltage, 24VDC, power supply, Power distribution module, power consumption, 55 mA at 5 V DC for logic bus, marking, CE, overvoltage category, II, status LED, 1 LED (green) module status (RDY), 1 LED per channel (green) status channel (IN1 to IN6), 1 LED (red) module error (ERR), depth, 65.1mm, height, 18.4mm, width, 125mm, net weight, 0.112 kg, Environment, standards, EN/IEC 61131-2 type 1, product certifications, FM Class 1, Section 2, UL, CSA, pollution degree, 2 conforming to IEC 60664-1, operating altitude, <= 2000 m, IP degree of protection, IP20 conforming to IEC 61131-2 class 1, ambient air temperature for operation, -25…70 °C (without loss), ambient temperature for operation, 32...140 °F without loss, ambient air temperature for storage, -40…85 °C without loss, ambient temperature for storage, -40...185 °F without loss, relative humidity, 95% at 60°C without condensation, vibration resistance, 3 gn at 58…150 Hz on 35 x 7.5mm symmetrical DIN rail, 5 gn at 58…150 Hz on 35 x 15mm symmetrical DIN rail, +/-0.35 mm at 10…58 Hz, shock resistance, 30 gn for 11 ms conforming to IEC 88 reference 2-27

• Specifications:
• Head: Modicon STB
• Range of product: Modicon STB distributed I/O solution
• Product or component type: Digital Standard Input Kit
• Composition kit: STBDDI3610 module
• STBXTS2100: 6 terminals with spring
• STBXTS1100: 6 terminals with screw
• STBXBA1000 base
• Number of digital inputs: 6
• Digital input voltage: 24 V
• Type of digital input voltage: D.C
• Complementary:
• Input voltage limits: 15...30 V at status 1, -3...5 V at status 0
• Acceptable input voltage: 30 V
• Absolute maximum voltage: 56V 1.3ms
• Digital input stream: 4.5mA
• Current state 0 guaranteed: <= 0.5 mA
• Current state 1 guaranteed: >= 2.5 mA
• Digital input logic: Positive or negative
• Response time: 1.21 ms on-to-off, 1.74 ms on-to-off
• Type of protection: Current protection fuse integrated on PDM time shift 10 A
• Input resistance protection limited
• Reverse polarity protection
• Isolation between channels and logic bus: 1500 V for 1 minute
• Cold swapping: Yes
• Hot swapping: Yes for standard NIMs
• Input filtering: 1ms
• Environment:
• Standards: EN/IEC 61131-2 type 1
• Product certifications: FM Class 1, Section 2, UL, CSA
• Pollution degree: 2 conforming to IEC 60664-1
• Operating altitude: <= 2000 m
• IP degree of protection: IP20 conforming to IEC 61131-2 class 1
• Ambient air temperature for operation: -25…70 °C (without loss)
• Ambient temperature for operation: 32...140 °F without loss
• Ambient air temperature for storage: -40…85 °C without loss
• Ambient temperature for storage: -40...185 °F without loss
• Relative humidity: 95% at 60°C without condensation
• Vibration resistance: 3 gn at 58…150 Hz on 35 x 7.5mm symmetrical DIN rail, 5 gn at 58…150 Hz on 35 x 15mm symmetrical DIN rail, +/-0.35 mm at 10…58 Hz
• Shock resistance: 30 gn for 11 ms conforming to IEC 88 reference 2-27
