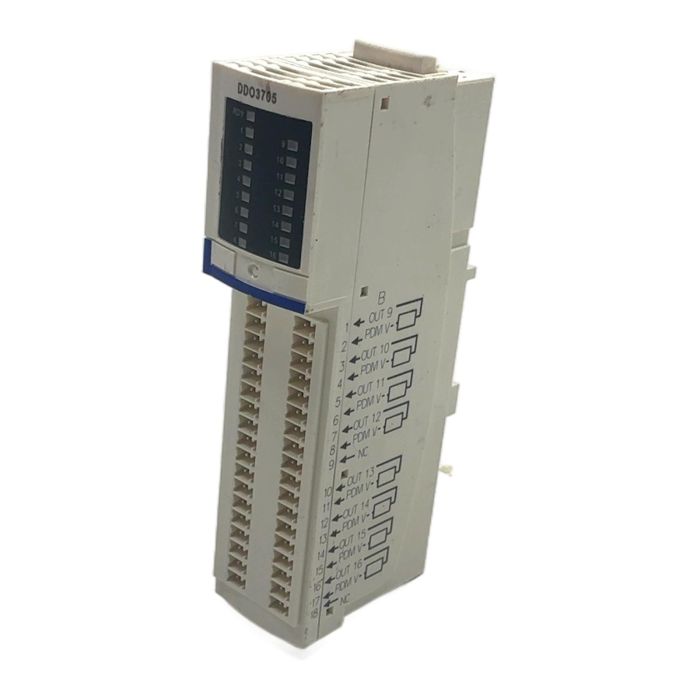

Schneider Electric STB DDO 3705 Digital Output Module

Description

The Schneider Electric STB DDO 3705 is a standard 16-point discrete output module for the Advantys STB distributed I/O system. It provides reliable 24V DC sourcing outputs, each rated for 0.5 A, making it ideal for controlling a variety of actuators, lamps, and other field devices in automated systems. This module is designed for seamless integration into a modular PLC setup, offering flexibility and robust performance.

Specifications

• Manufacturer: Schneider Electric
• Part Number: STB DDO 3705
• Type: Digital Output Module
• Outputs: 16 Sourcing
• Output Voltage: 24V DC
• Current per Output: 0.5 A with Over Current Protection (OCP)
• Series: Advantys STB

Label Info

• SN: 8B194695384
• PV: 04
• SV: 01.59
• RL: 08
• DOM: 1946

Application

This module is suitable for various industrial automation applications, including material handling, packaging machinery, and process control systems where reliable digital output signaling is required.

Country of Origin

Made in Indonesia.

CO2 Impact

Choosing this pre-owned module over a new one prevents the emission of approximately 4.8 kg of CO2, contributing to a more sustainable industrial environment.

Availability

This product is an obsolete item but is available from our stock. Ensure the continuity of your existing Advantys STB systems with this replacement part. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the difference between a 'sourcing' and 'sinking' output module?

A sourcing output module, like this STB DDO 3705, provides (sources) a positive voltage (V+) to the load. The load is connected between the output terminal and the common ground (0V). A sinking module connects the load to ground (sinks current), and the load is powered by an external positive voltage source.

No, the STB DDO 3705 is a distributed I/O module and requires a network interface module (like an STB NIP for Ethernet/IP or STB NDP for Profibus-DP) and a base to function. It cannot operate as a standalone device.

OCP stands for Over Current Protection. This means each of the 16 outputs is protected against currents exceeding 0.5 Amperes. This feature helps prevent damage to the module and the connected device in case of a short circuit or overload.
