Zelio RXZ - Relay base - 3P - 10A - < 250V - Connector - For RXM3: Specifications, Head, range of product, Harmony Electromechanical Relays, product or component type, Socket, contact terminal arrangement, Individual, product compatibility, Plug-in relay RXM with 3 C/O contact, shape pin, Flat, device short name, RXZ, sales per indivisible quantity, 10, Complementary, Ith conventional thermal flow in free air, 10 A, Your assigned operating voltage, <250V, connections - terminals, Connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end, Connector, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17 ) flexible with cable end, Connector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) fixed without cable end, Connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) fixed without cable end, tightening torque, < 1 Nm for M3 screw(s)., mounting method, With screw (panel), clamp (35 mm symmetrical DIN rail), marking, CE, width, 27mm, net weight, 0.066 kg, Environment, [Uimp] rated impulse withstand voltage, 4 kV, overvoltage category, III, pollution degree, 3, standards, IEC 61984, product certifications, UL, Lloyd's, CSA, ambient air temperature for storage, -40…85 °C, ambient air temperature for operation, -40…55 °C, IP degree of protection, IP20 conforming to IEC 60529, Note: Content: 8 pcs.

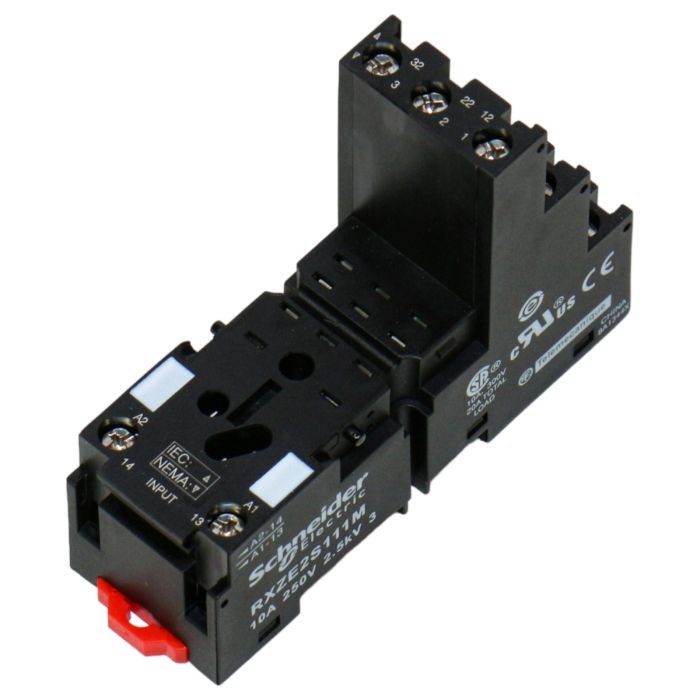

• Zelio RXZ - Relay base - 3P - 10A - < 250V - Connector
• For RXM3: Specifications
• Head, range of product: Harmony Electromechanical Relays
• Product or component type: Socket
• Contact terminal arrangement: Individual
• Product compatibility: Plug-in relay RXM with 3 C/O contact
• Shape pin: Flat
• Device short name: RXZ
• Sales per indivisible quantity: 10
• Ith conventional thermal flow in free air: 10 A
• Your assigned operating voltage: <250V
• Connections - terminals: Connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end, Connector, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end, Connector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) fixed without cable end, Connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) fixed without cable end
• Tightening torque: < 1 Nm for M3 screw(s)
• Mounting method: With screw (panel), clamp (35 mm symmetrical DIN rail)
• Marking: CE
• Width: 27mm
• Net weight: 0.066 kg
• Environment: [Uimp] rated impulse withstand voltage: 4 kV, Overvoltage category: III, Pollution degree: 3
• Standards: IEC 61984, Product certifications: UL, Lloyd's, CSA
• Ambient air temperature for storage: -40…85 °C, Ambient air temperature for operation: -40…55 °C
• IP degree of protection: IP20 conforming to IEC 60529
• Note: Content: 8 pcs

RXZE2S111M 940427 Schneider Electric is a reliable industrial item perfect for various applications in the manufacturing sector. It can be used in industrial control panels, machinery automation, and process control systems. This item is available for purchase at PLC2Day, your one-stop shop for industrial automation products.
