Schneider Electric Zelio RXM Industrial Relay Assembly

Description

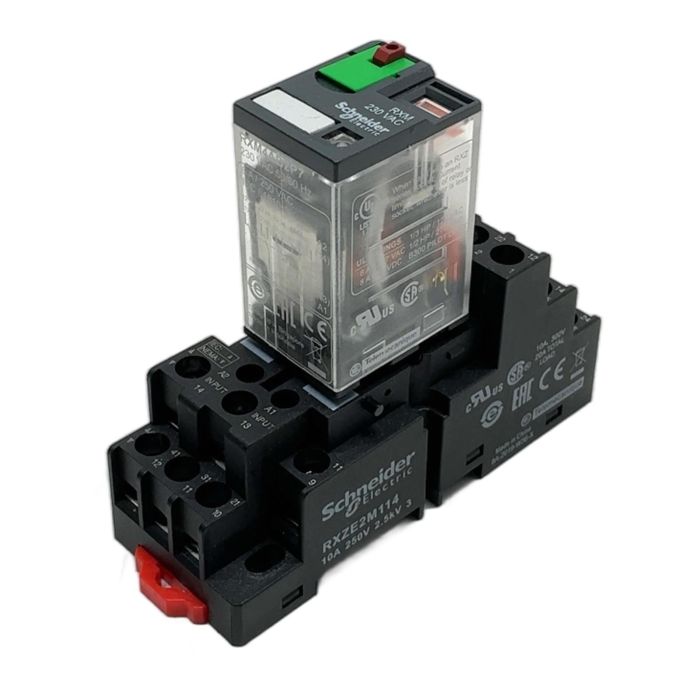

This is a complete industrial relay assembly from Schneider Electric's Zelio RXM range, featuring the RXM4AB2P7 miniature plug-in relay and the compatible RXZE2M114 socket. It's a versatile solution for control panel and automation tasks, offering reliable performance and easy installation.

Specifications

• Relay Model: RXM4AB2P7
• Socket Model: RXZE2M114
• Coil Voltage: 230V AC, 50/60 Hz
• Contact Configuration: 4 C/O (4 changeover contacts)
• Contact Current Rating: 6 A at 250V AC
• Socket Current Rating: 10 A
• Mounting: DIN Rail or Panel Mount

Label Info

• Manufacturer: Schneider Electric, Telemecanique
• Part Numbers: RXM4AB2P7, RXZE2M114

Application

Ideal for use in industrial automation panels, HVAC systems, packaging machinery, and other applications requiring reliable electrical switching of control signals and small loads.

Country of Origin

The relay is manufactured in Indonesia and the socket in China.

CO2 Impact

By purchasing this pre-owned component, you are contributing to a circular economy and avoiding approximately 2.5 kg of CO2 emissions associated with the production of a new unit. This saving is equivalent to the emissions from driving a car for over 12 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

No, the LED indicator is an integrated part of the relay's internal circuit and is not designed to be user-replaceable. If the LED fails but the relay still functions mechanically and electrically, it can still be used, but you lose the visual indication of the coil status.

The RXZE2M114 socket has commoned terminals for the coil and some contact poles, which simplifies wiring for certain applications. The RXZE2S114M socket keeps all terminals separate, providing maximum wiring flexibility, which is necessary for connecting different voltages to the coil and contacts.

The green, lockable test button allows for manual actuation of the contacts without energizing the coil. This is useful for testing the controlled circuit during commissioning or troubleshooting. The 'lockable' feature allows you to force the contacts into a specific state for extended testing periods.
