Schneider Electric Zelio Miniature Relay and Socket Assembly

Description

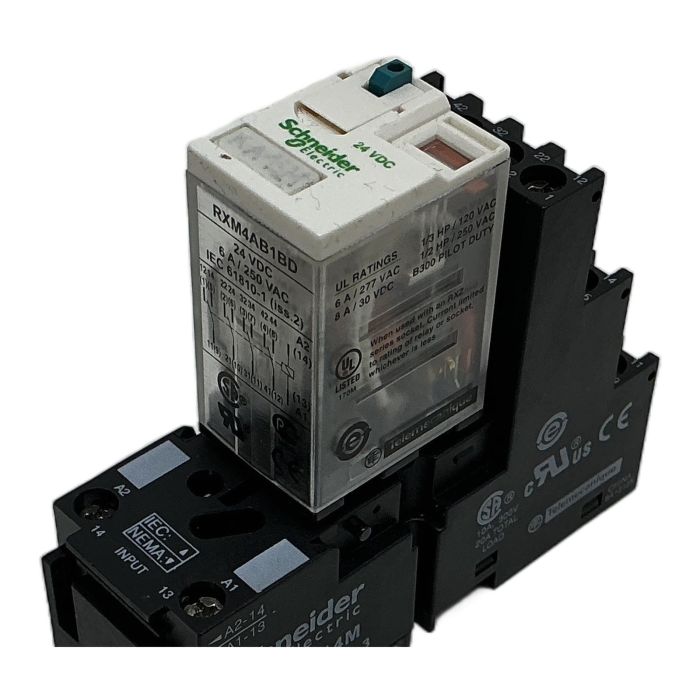

This is a complete assembly featuring the Schneider Electric RXM4AB1BD miniature plug-in relay and the corresponding RXZE2S114M socket. This relay is part of the Zelio RXM series, designed for high-performance switching in industrial control circuits. It features a 24V DC coil and four changeover contacts, making it versatile for a wide range of automation tasks. The socket allows for easy DIN-rail mounting and secure screw-clamp wiring.

Specifications

• Brand: Schneider Electric
• Relay Model: RXM4AB1BD
• Socket Model: RXZE2S114M
• Coil Voltage: 24V DC
• Contact Configuration: 4 C/O (Changeover)
• Contact Current Rating: 6 A at 250V AC
• Series: Zelio Relay RXM
• Mounting: DIN Rail via socket
• Terminals: Screw Clamp

Label Info

• Relay IEC Standard: IEC 61810-1
• Socket Rating: 10A 250V
• UL Ratings: 6A/277VAC, 8A/30VDC, B300 Pilot Duty
• Certifications: CE, UL, CSA (SP)

Application

Ideal for use in industrial automation panels, HVAC control systems, packaging machinery, and other applications requiring reliable, high-density switching of control signals and low-power loads.

Country of Origin

The socket is manufactured in China.

CO2 Impact

By choosing this pre-owned component, you are helping to avoid 2.8 kg of CO2 emissions. This saving is comparable to the amount of CO2 produced by driving a car for 14 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.
