• Specifications:
  • Main: Range of product - Harmony Electromechanical Relays
  • Series name - Miniature
  • Product or component type - Plug-in relay
  • Device short name - RXM
  • Contacts type and composition - 3 C/O
  • [Uc] control circuit voltage - 24 V DC
  • Status LED - With
  • Control type - Lockable test button
  • Utilisation coefficient - 20%
• Complementary:
  • Shape of pin - Flat
  • [Ui] rated insulation voltage - 250 V conforming to IEC, 300 V conforming to CSA, 300 V conforming to UL
  • [Uimp] rated impulse withstand voltage - 4 kV during 1.2/50 µs
  • Contacts material - AgNi
  • [Ie] rated operational current - 10 A at 28 V (DC) NO conforming to IEC, 10 A at 250 V (AC) NO conforming to IEC, 5 A at 28 V (DC) NC conforming to IEC, 5 A at 250 V (AC) NC conforming to IEC, 10 A at 30 V (DC) conforming to UL, 10 A at 277 V (AC) conforming to UL
  • Continuous output current - 6.7 A
  • Maximum switching voltage - 250 V conforming to IEC, resistive rated load, 10 A at 250 V AC, 10 A at 28 V DC
  • Maximum switching capacity - 2500 VA/280 W
  • Minimum switching capacity - 170 mW at 10 mA, 17 V
  • Operating rate - <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load
  • Mechanical durability - 10000000 cycles
  • Electrical durability - 100000 cycles for resistive load
  • Average coil consumption - 0.9 W
  • Drop-out voltage threshold - >= 0.1 Uc
  • Operate time - 20 ms
  • Release time - 20 ms
  • Average coil resistance - 650 Ohm at 20 °C +/- 10 %
  • Rated operational voltage limits - 19.2...26.4 V DC
  • Safety reliability data - B10d = 100000
  • Protection category - RT I
  • Test levels - Level A group mounting
  • Operating position - Any position
  • CAD overall height - 82.8 mm
  • CAD overall depth - 80.35 mm
  • Net weight - 0.037 kg
• Environment:
  • Dielectric strength - 1300 V AC between contacts with micro disconnection, 2000 V AC between coil and contact, 2000 V AC between poles
  • Product certifications - UL, Lloyd's, CE, CSA, GOST, IECEE CB Scheme
  • Standards - IEC 61810-1, CSA C22.2 No 14, UL 508
  • Ambient air temperature for storage - -40…85 °C
  • Ambient air temperature for operation - -40…55 °C
  • Vibration resistance - 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation, 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating
  • IP degree of protection - IP40 conforming to IEC 60529
  • Shock resistance - 10 gn for in operation, 30 gn for not operating

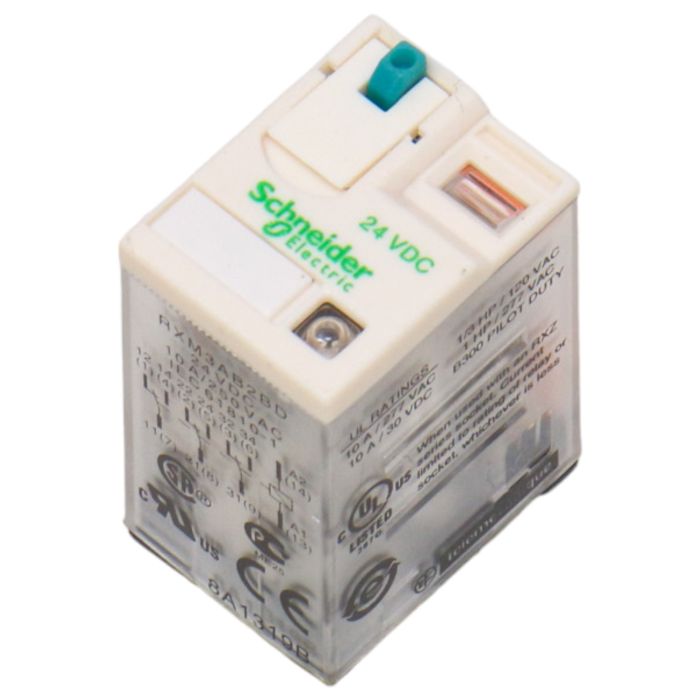

RXM3AB2BD 940363 Schneider Electric is a reliable and efficient industrial automation component that can be used in various applications such as manufacturing, energy management, and building automation. This item is available for purchase at PLC2Day, a trusted supplier of high-quality automation products.
