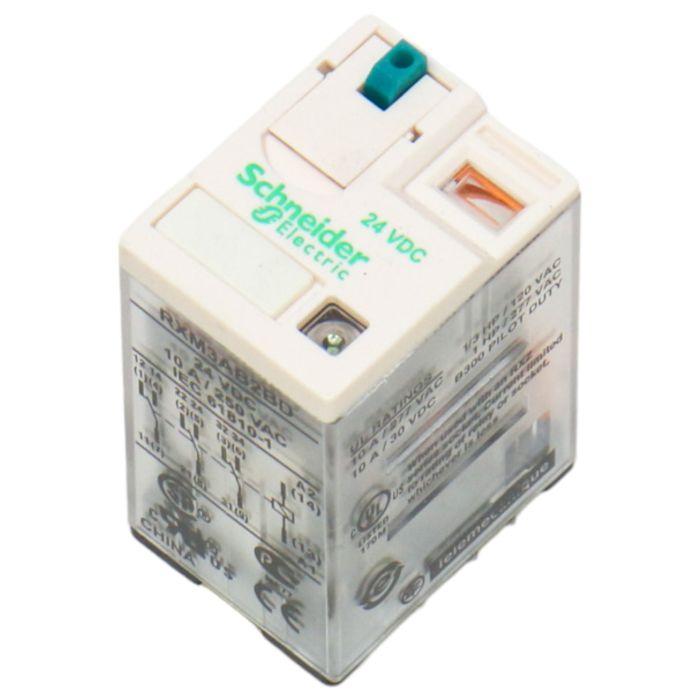

• Zelio RXM - Miniature plug-in relay
• 3M/V - 24V DC - 10A - LED
• Specifications:
  • Head: Harmony Electromechanical Relays
  • Range of product: Zelio RXM
  • Series name: Miniature
  • Product or component type: Plug-in relay
  • Device short name: RXM
  • Type and composition of contacts: 3 C/O
  • Voltage control circuit: 24VDC
  • Status LED: Of
  • Control type: Lockable test button
  • Utilization coefficient: 20%
  • Shape pin: Flat
  • Onion nom. insulation voltage: 250 V conforming to IEC, 300 V conforming to CSA, 300 V conforming to UL
  • Uimp assigned shock wave voltage: 4 kV for 1.2/50 µs
  • Contact material: AgNi
  • The assigned business flow: 10 A at 28 V (DC) NO conforming to IEC, 10 A at 250 V (AC) NO conforming to IEC, 5 A at 28 V (DC) NC conforming to IEC, 5 A at 250 V (AC) NC conforming to IEC, 10 A at 30 V (DC) conforming to UL, 10 A at 277 V (AC) conforming to UL
  • Continuous output current: 6.7 A
  • Maximum switching voltage: 250 V conforming to IEC
  • Resistive rated load: 10 A at 250 V AC, 10 A at 28 V DC
  • Maximum switching capacity: 2500 VA/280 W
  • Minimum switching capacity: 170 mW at 10 mA, 17 V
  • Operating speed: <= 1200 cycles/hour load, <= 18000 cycles/hour no load
  • Mechanical durability: 10000000 cycles
  • Electrical sustainability: 100000 cycles for resistive charging
  • Average coil consumption: 0.9W
  • Voltage drop limit: >= 0.1 Uc
  • Operate time: 20ms
  • Release time: 20ms
  • Average coil resistance: 650 Ohm at 20 °C +/- 10 %
  • Nominal operational voltage limits: 19.2...26.4 V DC
  • Reliability data safety: B10d = 100000
  • Protection category: RT I
  • Test levels: Level A group mounting
  • Operating position: Any position
  • CAD overall height: 82.8mm
  • CAD total depth: 80.35mm
  • Net weight: 0.037kg
  • Product presentation: Complete product
  • Environment:
    • Dielectric strength: 1300 V AC between contacts with micro disconnect insulation, 2000 V AC between coil and contact, 2000 V AC between poles
    • Product certifications: UL, Lloyd's, CE, CSA, GOST, IECEE CB Scheme
    • Standards: IEC 61810-1, CSA C22.2 No. 14, UL 508
    • Ambient air temperature for storage: -40…85 °C
    • Ambient air temperature for operation: -40…55 °C
    • Vibration resistance: 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation, 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not in operation
    • IP degree of protection: IP40 conforming to IEC 60529
    • Shock resistance: 10 gn for operating, 30 gn for non-operating
    • Pollution degree: 2
  • Note: Content: 5 PCS

RXM3AB2BD 940363 Schneider Electric is a versatile and reliable industrial automation component that is perfect for various applications in the manufacturing and process industries. This item can be purchased at PLC2Day, a leading online retailer for industrial automation products.
