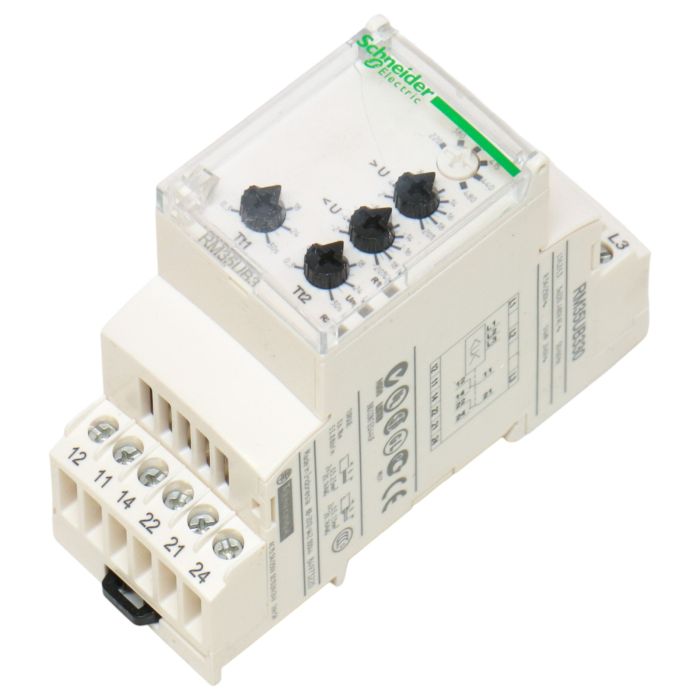

• Zelio - Phase monitoring / Voltage monitoring relay
• RM35-U - Range 194-528V AC
• Specifications:
  • Head: RM35UB3
  • Range of product: Harmony Control Relays
  • Relay type: Control relay
  • Control relay voltage: Voltage control relay
  • Product or component type: Voltage control relay
  • Product-specific application: For 3-phase power supply
  • Relay name: RM35UB3
  • Relay controlled parameters: Overvoltage and undervoltage between phases
  • Time delay: Adjustable 0.3...30 s
  • Switching capacity in VA: 1250 VA
  • Minimum switching current: 10 mA at 5 V DC
  • Maximum switching current: 5A AC/DC
  • Maximum energy consumption in VA: 0…22 VA at 400 V AC 50 Hz
  • Measuring range: 194...528 V voltage AC 50/60 Hz
  • Utilization category: AC-12, AC-13, AC-14, AC-15, DC-12, DC-13, DC-14 conforming to IEC 60947-5-1
  • Type and composition of contacts: 2 C/O
  • Complementary reset time: 1500 ms time delay
  • Maximum switching voltage: 250V AC/DC
  • Supply voltage limits: 194…528 VAC
  • Voltage detection limit: 194 V
  • Frequency control circuit: 50...60 Hz +/- 15 %
  • Output contacts: 1 C/O + 1 C/O, 1 per threshold
  • Rated output current: 5 A
  • Maximum measuring cycle: 150 ms measurement cycle as true rms value
  • Hysteresis: 2%
  • Delay at power up: 650ms
  • Measurement accuracy: +/10% of total value
  • Repeatability: +/-0.5% for input and measuring circuit, +/- 1% for delay time
  • Measurement error: < 1% over full range with voltage variation, 0.05%/°C with temperature variation
  • Response time: < 200 ms (in case of error)
  • Quality labels: CE
  • Overvoltage category: III conforming to IEC 60664-1
  • Insulation resistance: > 500 MOhm at 500 V DC conforming to IEC 60255-5, > 500 MOhm at 500 V DC conforming to IEC 60664-1
  • Onion nom. insulation voltage: 400 V conforming to IEC 60664-1
  • Operating position: Any position without loss
  • Connections - terminals: Screw terminals, various sizes
  • Tightening torque: 0.6…1 Nm conforming to IEC 60947-1
  • Housing material: Self-extinguishing plastic
  • Local signaling: Power ON: LED (green), Relay ON: LED (yellow)
  • Mounting bracket: 35 mm symmetrical DIN rail conforming to IEC 60715
  • Electrical lifespan: 10000 cycles
  • Mechanical durability: 30000000 cycles
  • Operating speed: <= 360 operations/hour full load
  • Reliability data safety: B10d = 300000, MTTFd = 319.6 years
  • Width: 35mm
  • Net weight: 0.08kg
  • Functionality: Overvoltage and undervoltage detection
  • Compatibility code: RM3
  • Environment:
    • Electromagnetic compatibility: Emission standard for industrial environments, Emission standard for residential, commercial and light industrial environments, Immunity for industrial environments
    • Standards: IEC 60255-1
    • Product certifications: C-Tick, GOST, CSA, GL, UL
    • Guidelines: 73/23/EEC - Low Voltage Directive, 89/336/EEC - Electromagnetic Compatibility
    • Ambient air temperature for storage: -40…70 °C
    • Ambient air temperature for operation: -20…50 °C
    • Relative humidity: 95% at 55°C conforming to IEC 60068-2-30
    • Vibration resistance: 0.35 mm (f= 5…57.6 Hz), 1 gn (f= 57.6…150 Hz) conforming to IEC standards
    • Shock resistance: 5 gn conforming to IEC standards
    • IP degree of protection: IP20 (terminals), IP30 (housing)
    • Pollution degree: 3 conforming to IEC 60664-1
    • Dielectric test voltage: 2 kV AC 50 Hz, 1 min, non-dispersive shock wave: 4 kV

RM35UB330 by Schneider Electric is a versatile industrial relay module used in various applications such as control panels, motor control centers, and energy management systems. This reliable and high-quality product can be purchased at PLC2Day.
