Modular 3-phase voltage control relay, 5 A, 2 CO, 220…480 V AC: Specifications, Main, Range of produc, Harmony Control Relays, Relay type, Voltage control relay, Product or component type, Voltage control relay, Product specific application, For 3-phase supply, Relay name, RM35UB3, Relay monitored parameters, Overvoltage and undervoltage between phases, time delay, Adjustable 0.3...30 s, 0 + 10 % on crossing the threshold, Switching capacity in VA, 1250 VA, Minimum switching current, 10 mA at 5 V DC, Maximum switching current, 5 A AC/DC, Power consumption in VA, 0…22 VA at 400 V AC 50 Hz, Measurement range, 194...528 V voltage AC 50/60 Hz, Utilisation category, AC-12 conforming to IEC 60947-5-1, AC-13 conforming to IEC 60947-5-1, AC-14 conforming to IEC 60947-5-1, AC-15 conforming to IEC 60947-5-1, DC-12 conforming to IEC 60947-5-1, DC-13 conforming to IEC 60947-5-1, DC-14 conforming to IEC 60947-5-1, Contacts type and composition, 2 C/O, Complementary, Reset time, 1500 ms time delay, Maximum switching voltage, 250 V AC/DC, Supply voltage limits, 194…528 V AC, Voltage detection threshold, 194 V, control circuit frequency, 50...60 Hz +/- 15 %, Output contacts, 1 C/O + 1 C/O, 1 per threshold, Nominal output current, 5 A, Maximum measuring cycle, 150 ms measurement cycle as true rms value, Hysteresis, 2 %, delay at power up, 650 ms, Measurement accuracy, +/- 10 % of the full scale value, Repeat accuracy, +/- 0.5 % for input and measurement circuit, +/- 1 % for time delay, Measurement error, < 1 % over the whole range with voltage variation, 0.05 %/°C with temperature variation, Response time, < 200 ms (in the event of a fault), Quality labels, CE, Overvoltage category, III conforming to IEC 60664-1, Insulation resistance, > 500 MOhm at 500 V DC conforming to IEC 60255-5, > 500 MOhm at 500 V DC conforming to IEC 60664-1, [Ui] rated insulation voltage, 400 V conforming to IEC 60664-1, Operating position, Any position without derating, Connections - terminals, Screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end, Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, Screw terminals, 1 x 0.2...2 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end, Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end, Tightening torque, 0.6…1 N.m conforming to IEC 60947-1, Housing material, Self-extinguishing plastic, Local signalling, LED (green) for power ON, LED (yellow) for relay ON, Mounting support, 35 mm symmetrical DIN rail conforming to IEC 60715, Electrical durability, 10000 cycles, Mechanical durability, 30000000 cycles, Operating rate, <= 360 operations/hour full load, Safety reliability data, B10d = 300000, MTTFd = 319.6 years, Width, 35 mm, Net weight, 0.08 kg, Functionality, Overvoltage and undervoltage detection, Compatibility code, RM3, Environment, Electromagnetic compatibility, Emission standard for industrial environments conforming to IEC 61000-6-4, Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, Immunity for industrial environments conforming to NF EN/IEC 61000-6-2, Standards, IEC 60255-1, product certifications, C-Tick, GOST, CSA, GL, UL, Directives, 73/23/EEC - low voltage directive, 89/336/EEC - electromagnetic compatibility, Ambient air temperature for storage, -40…70 °C, Ambient air temperature for operation, -20…50 °C, Relative humidity, 95 % at 55 °C conforming to IEC 60068-2-30, Vibration resistance, 0.35 mm (f= 5…57.6 Hz) conforming to IEC 60068-2-6, 1 gn (f= 57.6…150 Hz) conforming to IEC 60255-21-1, Shock resistance, 5 gn conforming to IEC 60068-2-27, IP degree of protection, IP20 (terminals) conforming to IEC 60529, IP30 (casing) conforming to IEC 60529, Pollution degree, 3 conforming to IEC 60664-1, Dielectric test voltage, 2 kV, 1 min AC 50 Hz, Non-dissipating shock wave, 4 kV.

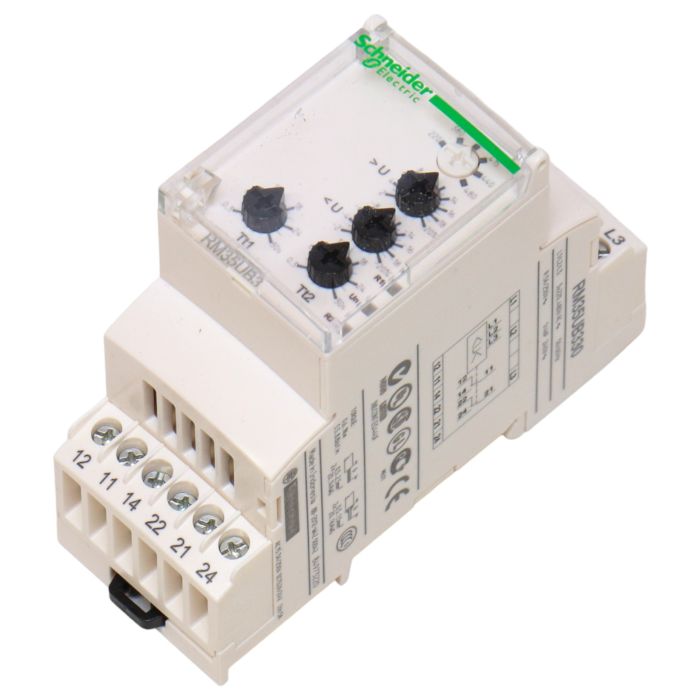

• Modular 3-phase voltage control relay
• 5 A, 2 CO, 220…480 V AC
• Specifications:
  • Main: Range of product
  • Harmony Control Relays
  • Relay type: Voltage control relay
  • Product or component type: Voltage control relay
  • Product specific application: For 3-phase supply
  • Relay name: RM35UB3
  • Relay monitored parameters: Overvoltage and undervoltage between phases, time delay, Adjustable 0.3...30 s, 0 + 10% on crossing the threshold
  • Switching capacity in VA: 1250 VA
  • Minimum switching current: 10 mA at 5 V DC
  • Maximum switching current: 5 A AC/DC
  • Power consumption in VA: 0…22 VA at 400 V AC 50 Hz
  • Measurement range: 194...528 V voltage AC 50/60 Hz
  • Utilisation category: AC-12, AC-13, AC-14, AC-15, DC-12, DC-13, DC-14
  • Contacts type and composition: 2 C/O
  • Reset time: 1500 ms time delay
  • Maximum switching voltage: 250 V AC/DC
  • Supply voltage limits: 194…528 V AC
  • Voltage detection threshold: 194 V
  • Control circuit frequency: 50...60 Hz +/- 15%
  • Output contacts: 1 C/O + 1 C/O, 1 per threshold
  • Nominal output current: 5 A
  • Maximum measuring cycle: 150 ms measurement cycle as true rms value
  • Hysteresis: 2%
  • Delay at power up: 650 ms
  • Measurement accuracy: +/- 10% of the full scale value
  • Repeat accuracy: +/- 0.5% for input and measurement circuit, +/- 1% for time delay
  • Measurement error: < 1% over the whole range with voltage variation, 0.05 %/°C with temperature variation
  • Response time: < 200 ms (in the event of a fault)
  • Quality labels: CE
  • Overvoltage category: III
  • Insulation resistance: > 500 MOhm at 500 V DC
  • [Ui] rated insulation voltage: 400 V
  • Operating position: Any position without derating
  • Connections - terminals: Screw terminals, various sizes
  • Tightening torque: 0.6…1 N.m
  • Housing material: Self-extinguishing plastic
  • Local signalling: LED (green) for power ON, LED (yellow) for relay ON
  • Mounting support: 35 mm symmetrical DIN rail
  • Electrical durability: 10000 cycles
  • Mechanical durability: 30000000 cycles
  • Operating rate: <= 360 operations/hour full load
  • Safety reliability data: B10d = 300000, MTTFd = 319.6 years
  • Width: 35 mm
  • Net weight: 0.08 kg
  • Functionality: Overvoltage and undervoltage detection
  • Compatibility code: RM3
  • Environment: Electromagnetic compatibility, various standards
  • Directives: 73/23/EEC, 89/336/EEC
  • Ambient air temperature for storage: -40…70 °C
  • Ambient air temperature for operation: -20…50 °C
  • Relative humidity: 95% at 55 °C
  • Vibration resistance: 0.35 mm, 1 gn
  • Shock resistance: 5 gn
  • IP degree of protection: IP20 (terminals), IP30 (casing)
  • Pollution degree: 3
  • Dielectric test voltage: 2 kV, 1 min AC 50 Hz
  • Non-dissipating shock wave: 4 kV

RM35UB330 Schneider Electric is a versatile industrial relay that can be used in a wide range of applications such as motors, pumps, and compressors. It is an essential component for automation and control systems, ensuring reliable performance and protection for your equipment. Purchase this item at PLC2Day for all your industrial automation needs.
