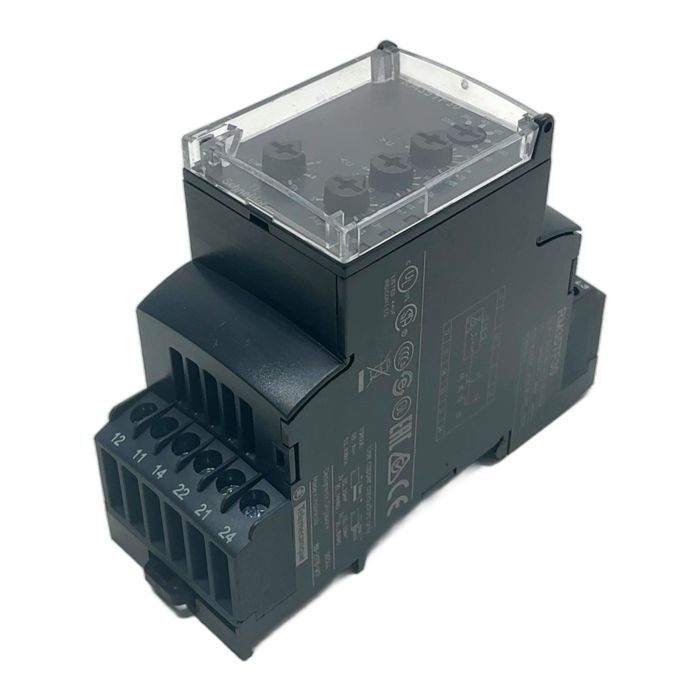

Schneider Electric RM35TF30 Zelio Control Relay

Description

The RM35TF30 is a multifunction 3-phase control relay from Schneider Electric's Telemecanique range. It is designed to monitor power supplies and protect equipment from potentially damaging voltage faults. This relay ensures the correct phase sequence and detects phase loss, as well as under- and overvoltage conditions, making it an essential component for motor protection and general circuit safety.

Specifications

• Manufacturer: Schneider Electric
• Product Range: Zelio Control
• Model: RM35TF30
• Supply Voltage Range: 220 to 480 V AC
• Frequency: 50/60 Hz
• Monitored Parameters: Phase sequence, phase failure, overvoltage, undervoltage
• Output Contacts: 2 C/O (Changeover)
• Contact Rating: 5A at 250V AC
• Mounting: 35mm DIN rail

Label Info

• L1/L2/L3: 3x220-480V AC 50/60Hz
• AC15: 3A/250V
• DC13: 2A/24V
• Ith: 5A

Application

Ideal for use in industrial control panels, HVAC systems, pumping stations, and any application involving 3-phase motors where supply quality is critical for reliable operation.

Country of Origin

Made in Indonesia.

CO2 Impact

By purchasing this pre-owned component, you are avoiding the 5.2 kg of CO2 emissions associated with the production of a new one. This is comparable to the emissions from a 26 km car journey.

Availability

In stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The RM35TF30 is a monitoring relay that protects 3-phase electrical systems. It checks for correct phase sequence, the loss of one or more phases, and ensures the voltage stays within a user-defined range (overvoltage and undervoltage protection).

The trip points are set using the potentiometers located on the top of the unit, under the transparent cover. You can adjust the thresholds for overvoltage and undervoltage as a percentage of the nominal supply voltage, according to your application's requirements.

Yes, the RM35TF30 can monitor 3-phase supplies without a neutral connection, making it suitable for both 3-wire Delta and 4-wire Wye (Star) systems, as long as the phase-to-phase voltage is within the 220-480V AC range.
