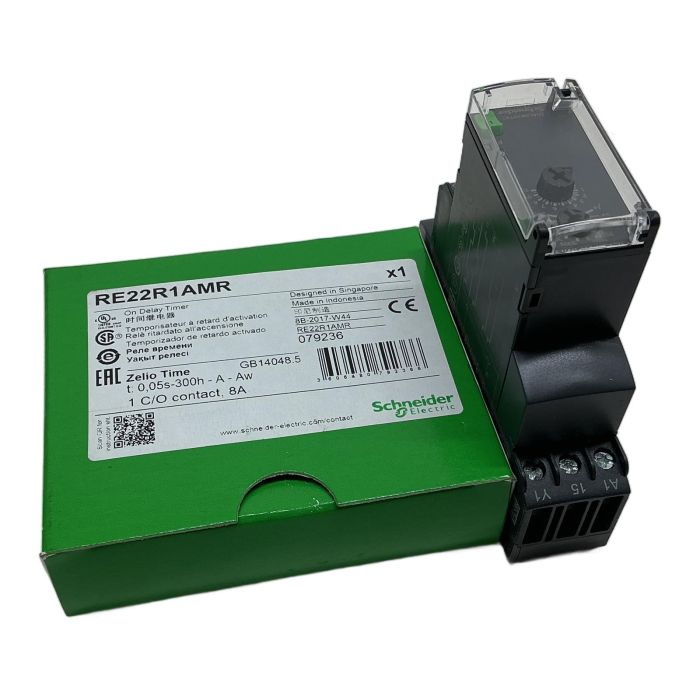

Schneider Electric Zelio Time On-Delay Relay

Description

The Schneider Electric RE22R1AMR is a versatile and reliable on-delay timing relay from the Zelio Time series. It is designed to provide precise timing functions in a wide variety of industrial automation systems. With its wide supply voltage range and extensive time delay settings, it offers flexibility for applications such as motor starting sequences, process control, and building automation. Its compact, 22.5 mm design allows for space-saving installation on a standard DIN rail.

Specifications

• Manufacturer: Schneider Electric
• Part Number: RE22R1AMR
• Series: Zelio Time
• Function: On-delay (A, Aw)
• Supply Voltage: 24...240 V AC/DC 50/60 Hz
• Power Consumption: 3 VA (AC), 1.5 W (DC)
• Time Delay Range: 0.05 s to 300 h
• Output Type: 1 C/O (changeover) relay contact
• Contact Rating: 8 A at 250 V AC
• Mounting: 35 mm DIN rail
• Width: 22.5 mm

Label Info

• Model: RE22R1AMR
• EAN: 3606480792366
• Production Code: 8B-2017-W44

Application

Ideal for use in industrial control panels for timing motor start-up delays, controlling lighting systems, managing sequential logic in manufacturing processes, and other applications requiring a time-delayed activation.

Country of Origin

Made in Indonesia.

CO2 Impact

Opting for this component helps save approximately 3.2 kg of CO2 emissions compared to purchasing a new one, contributing to a more sustainable industrial environment.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

What is the function of the 'A' and 'Aw' settings on the RE22R1AMR?

The 'A' function is a standard on-delay. When voltage is applied to A1/A2, the timing period 't' begins, and the output contact switches after this period. The 'Aw' function is similar but includes a control signal on terminal Y1. The timing only starts when both A1/A2 have power AND Y1 is energized.

Can I use this timer with a PLC output to control the timing?

Yes, the 'Aw' function is specifically designed for this. You can apply constant power to A1/A2 and use a PLC output to energize the Y1 terminal to start the timing sequence, providing external control over the delay start.

What is the width of this Zelio timer and is it DIN-rail compatible?

The Schneider Electric RE22R1AMR has a standard width of 22.5 mm, making it compact and easy to install. It is designed for mounting on a standard 35 mm DIN rail.
