Schneider Electric Lifting Eye Bolt Set M12 NSYSFEB

Description

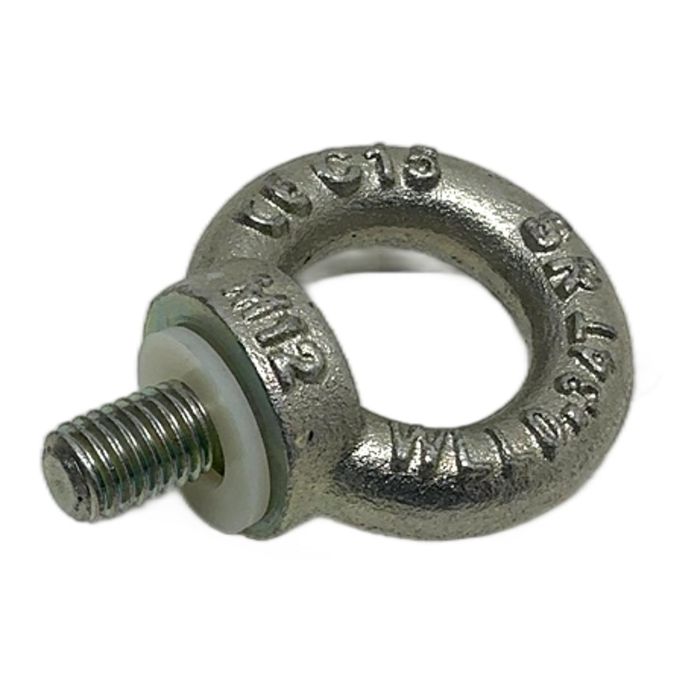

This is the NSYSFEB, a set of four M12 lifting eye bolts from Schneider Electric, designed as a key accessory for their Spacial range of enclosures. These high-quality steel eye bolts provide secure lifting points for safe and easy transportation and installation of heavy electrical cabinets. Manufactured to DIN 580 standards, they guarantee reliability and safety for your handling operations.

Specifications

• Manufacturer: Schneider Electric
• Part Number: NSYSFEB
• Product Range: Spacial
• Thread Size: M12
• Quantity: 1 set of 4 pieces
• Material: Steel (C15 grade)
• Standard: DIN 580

Application

These lifting eyes are specifically designed for use with Schneider Electric's Spacial SF, SM, SFX, SMX, and SD enclosures, but can be used in any application requiring a certified M12 lifting point conforming to DIN 580.

Country of Origin

Made in Spain.

CO2 Impact

By purchasing this reused hardware, you contribute to a circular economy and avoid approximately 1.4 kg of CO2 emissions associated with the production of a new set.

Availability

This set is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the maximum weight one M12 eye bolt (DIN 580) can lift?

An M12 eye bolt manufactured to the DIN 580 standard has a specified Working Load Limit (WLL) of 340 kg (0.34 tonnes) for straight, vertical lifts.

Yes, but the Working Load Limit (WLL) is significantly reduced. For a 45-degree angle lift, the WLL drops to approximately 240 kg. It is crucial to consult the DIN 580 load chart and ensure proper engineering for any angular lifts.

C15 refers to the grade of steel used (C15E). It's a non-alloy carbon steel known for its good formability and weldability, commonly used for forged parts like these lifting eyes that require strength and durability.
