Circuit breaker Compact NSX100F - 100 A - 2-pole - without trip coil: , Specifications, Main features, gamma, Compact, product range, ComPact NSX100...250, short device name, NSX100F, type of product or component, Basic frame, device application, Distribution, name of circuit breaker, Compact NSX100F, Number of poles, 2P, [In] rated current, 100 A at 40 °C, [Ue] rated operating voltage, 690 VAC 50/60 Hz, type net, AC, mains frequency, 50/60Hz, suitability for insulation, Yes according to EN/IEC 60947-2, use category, Category A, [Icu] rated ultimate short-circuit breaking capacity, 10 kA at 600 V AC 50/60 Hz in accordance with UL 508, 25 kA at 480 V AC 50/60 Hz in accordance with UL 508, 85 kA at 240 V AC 50/60 Hz in accordance with UL 508, 22 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 35 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 8 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, Performance level, F 36 kA 415 V AC, type of operation, Switch, Complementary features, [Ui] rated insulation voltage, 800 V AC 50/60 Hz according to IEC 60947-2, [Uimp] rated impulse withstand voltage, 8 kV according to IEC 60947-2, [Ics] rated service short-circuit breaking capacity, 11 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2, 35 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 4 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 85 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 12.5 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2, mechanical lifespan, 50000 cycles according to IEC 60947-2, electrical lifespan, 10000 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-2, 20000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-2, 30000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2, 50000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2, mounting bracket, Back plate, connection at the top, Front, connection at the bottom, Front, center distance connection, 35mm, type of security, Without security, Width (W), 105mm, Height (H), 161mm, Depth (D), 86mm, Environment, standards, EN/IEC 60947-2, UL 508, product certifications, CSA, UL, pollution degree, 3 according to IEC 60664-1, IP protection rating, IP40 according to IEC 60529, IK degree of protection, IK07 in accordance with IEC 62262, ambient temperature during operation, -25…70 °C, ambient temperature during storage, -50…85 °C

• Product features and specifications:

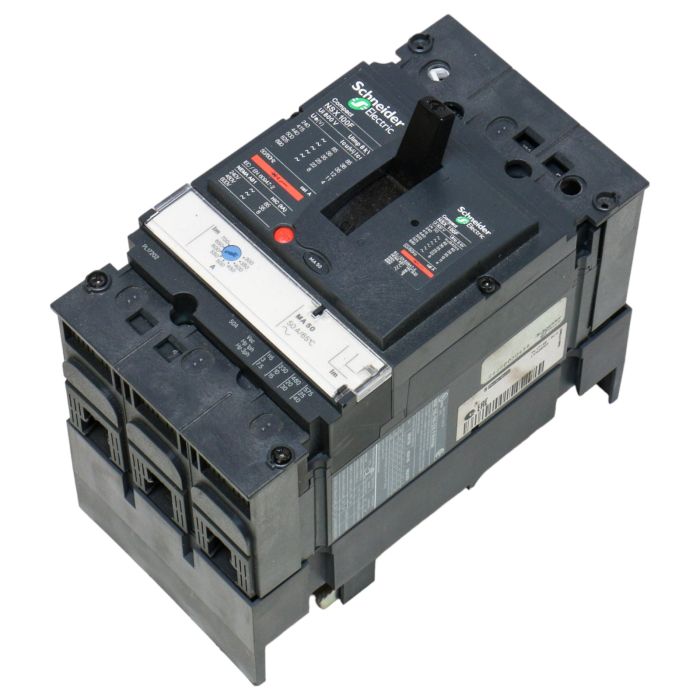

• Main features: Circuit breaker Compact NSX100F - 100 A - 2-pole - without trip coil
• gamma: Compact
• product range: ComPact NSX100...250
• short device name: NSX100F
• type of product or component: Basic frame
• device application: Distribution
• name of circuit breaker: Compact NSX100F
• Number of poles: 2P
• [In] rated current: 100 A at 40 °C
• [Ue] rated operating voltage: 690 VAC 50/60 Hz
• type net: AC
• mains frequency: 50/60Hz
• suitability for insulation: Yes according to EN/IEC 60947-2
• use category: Category A
• [Icu] rated ultimate short-circuit breaking capacity: 10 kA at 600 V AC 50/60 Hz in accordance with UL 508, 25 kA at 480 V AC 50/60 Hz in accordance with UL 508, 85 kA at 240 V AC 50/60 Hz in accordance with UL 508, 22 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 35 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 8 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
• Performance level: F 36 kA 415 V AC
• type of operation: Switch
• [Ui] rated insulation voltage: 800 V AC 50/60 Hz according to IEC 60947-2
• [Uimp] rated impulse withstand voltage: 8 kV according to IEC 60947-2
• [Ics] rated service short-circuit breaking capacity: 11 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2, 35 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 4 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 85 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 12.5 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
• mechanical lifespan: 50000 cycles according to IEC 60947-2
• electrical lifespan: 10000 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-2, 20000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-2, 30000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2, 50000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2
• mounting bracket: Back plate
• connection at the top: Front
• connection at the bottom: Front
• center distance connection: 35mm
• type of security: Without security
• Width (W): 105mm
• Height (H): 161mm
• Depth (D): 86mm
• Environment: standards: EN/IEC 60947-2, UL 508
• product certifications: CSA, UL
• pollution degree: 3 according to IEC 60664-1
• IP protection rating: IP40 according to IEC 60529
• IK degree of protection: IK07 in accordance with IEC 62262
• ambient temperature during operation: -25…70 °C
• ambient temperature during storage: -50…85 °C

NSX100F Schneider Electric is a reliable industrial circuit breaker suitable for various applications in manufacturing, processing, and other industrial environments. It can be purchased at PLC2Day for your electrical protection needs.
