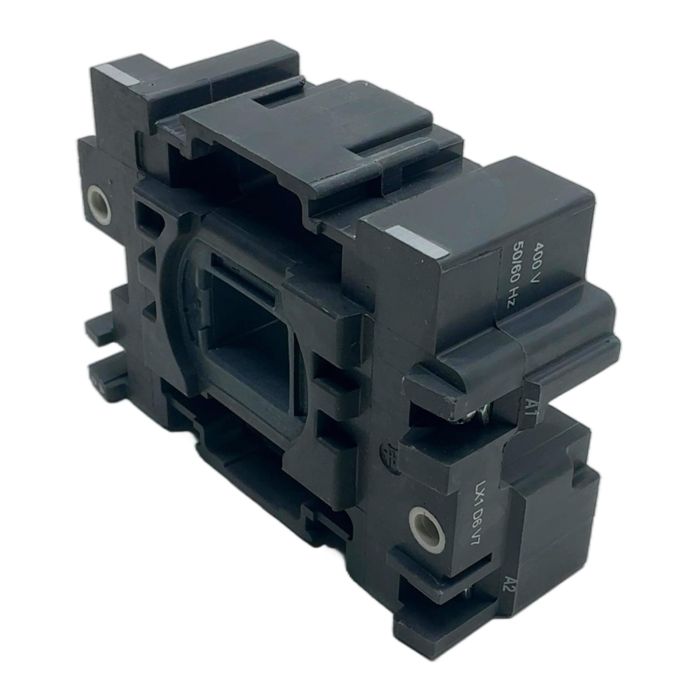

Schneider Electric LX1D6V7 TeSys D Contactor Coil

Description

The LX1D6V7 is a high-quality AC coil from Schneider Electric, designed for the TeSys D range of contactors. This component is essential for the electromagnetic operation of the contactor, providing reliable switching for motors and other electrical loads. It operates at a control circuit voltage of 400V AC with a frequency of 50/60 Hz.

Specifications

• Manufacturer: Schneider Electric
• Product Range: TeSys D
• Model: LX1D6V7
• Order Code: 020888
• Component Type: Contactor Coil
• Control Circuit Voltage: 400V AC
• Frequency: 50/60 Hz
• Compatibility: Suitable for TeSys D contactors LC1D80, LC1D95, LC1D115, LC1D150

Label Info

• Brand: Schneider Electric
• Type: LX1D6V7
• Specs: 400 V 50/60 Hz
• EAN: 3389110208887

Application

This coil is used for replacing a faulty or worn-out coil in TeSys D contactors within industrial control panels, motor control centers (MCCs), and automation systems for HVAC, pumping, and manufacturing applications.

Country of Origin

This product is made in the Czech Republic.

CO2 Impact

By purchasing this pre-owned component, you are contributing to a circular economy and have helped avoid approximately 6.0 kg of CO2 emissions associated with the production of a new part. This is equivalent to the emissions from driving a car for 30 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

It is designed for Schneider Electric TeSys D 3-pole contactors LC1D80, LC1D95, LC1D115, LC1D150 and 4-pole contactors LC1DT120, LC1DT150. It also fits control relays CAD80 to CAD150.

The inrush power consumption at 20 deg C is typically 245 VA at 50 Hz and 245 VA at 60 Hz. The hold-in power consumption is 26 VA at 50 Hz and 26 VA at 60 Hz.

No, this is an AC coil designed specifically for a 400V AC 50/60 Hz supply. Using it on a DC supply will damage the coil and potentially the control circuit.
