Schneider Electric Linergy BS Distribution Block

Description

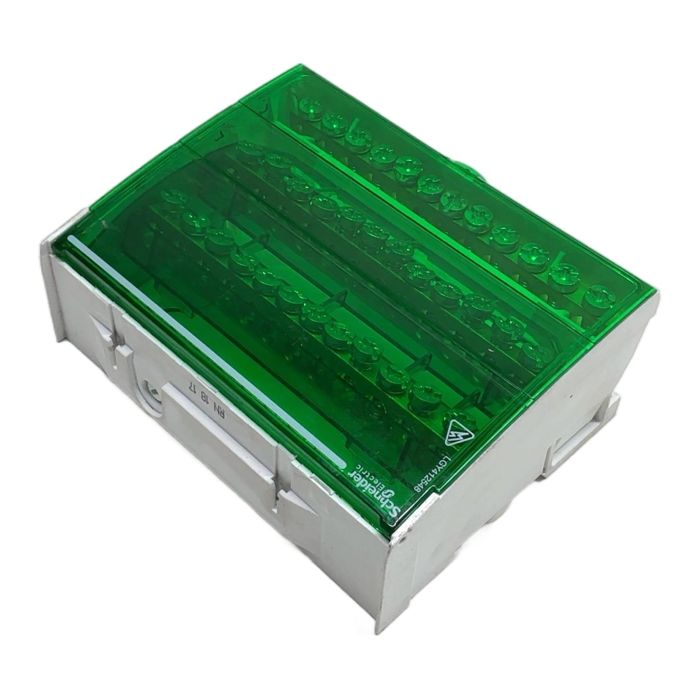

The Schneider Electric LVY11254D is a high-quality, insulated distribution block from the Linergy BS range. It is engineered for reliable and organized power distribution in industrial control panels and switchboards. This 4-pole unit is rated for 125A and features a compact, DIN rail-mountable design for easy integration into existing or new systems. The transparent protective cover allows for quick visual inspection of connections while maintaining safety.

Specifications

• Manufacturer: Schneider Electric
• Part Number: LVY11254D
• Series: Linergy BS
• Product Type: Insulated Distribution Block
• Poles: 4P
• Rated Current (In): 125 A at 40 deg C
• Rated Insulation Voltage (Ui): 500V
• Rated Impulse Withstand Voltage (Uimp): 8 kV
• Connections per Pole: 13 outputs
• Mounting: DIN Rail

Application

Ideal for power distribution in automation cabinets, HVAC systems, and commercial electrical installations where multiple circuits need to be fed from a single source safely and compactly.

Country of Origin

Made in France.

CO2 Impact

By purchasing this reconditioned component, you help avoid the emission of approximately 19.6 kg of CO2, which is equivalent to the manufacturing of a brand-new unit. This saving is comparable to driving a car for 98 km.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The block accepts one input conductor per pole with a cross-section of 10 to 35mm2 for stranded cables or 10 to 50mm2 for solid cables.

Yes, when installed in an enclosure with the transparent cover closed and all unused terminals covered with the mandatory blanking plates, the Linergy BS series is designed to be IPXXB touch-safe.

Absolutely. The LVY11254D is designed for quick and easy mounting on a standard 35mm DIN rail, making it suitable for most industrial control panels and distribution boards.
