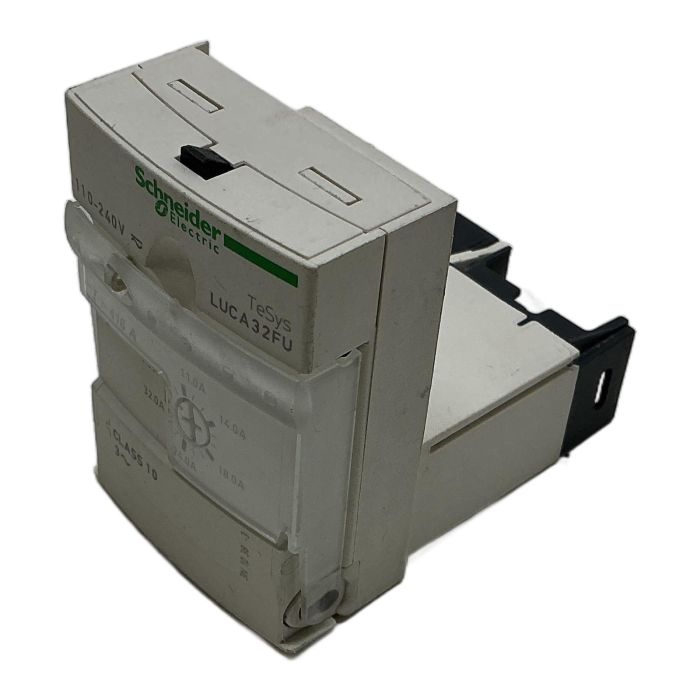

Schneider Electric LUCA32FU TeSys U Standard Control Unit

Description

The LUCA32FU is a standard control unit for the Schneider Electric TeSys U motor starter system. It provides essential motor protection and control functions, featuring an adjustable thermal overload setting from 8 to 32 Amperes and a wide control voltage range of 110 to 240V AC/DC. Its compact, plug-in design allows for easy installation and maintenance within a TeSys U power base.

Specifications

• Manufacturer: Schneider Electric
• Product Line: TeSys U
• Type: Standard Control Unit
• Model: LUCA32FU
• Thermal Setting Range: 8...32 A
• Control Circuit Voltage: 110...240 V AC/DC
• Trip Class: Class 10

Label Info

• Brand: Schneider Electric / Telemecanique
• Type Number: LUCA32FU
• Max Voltage: 600V AC
• Certifications: CE, UL, CSA, ATEX

Application

The LUCA32FU is designed to be used with a TeSys U power base (e.g., LUB12, LUB32, LUB38) to start, stop, and protect three-phase motors. Common applications include conveyor systems, pumps, fans, and other industrial machinery requiring reliable motor control.

Country of Origin

Made in France.

CO2 Impact

By purchasing this pre-owned unit, you are helping to avoid the emission of approximately 5.4 kg of CO2. This saving is comparable to the emissions from driving an average car for 27 kilometers.

Availability

This is a refurbished item in excellent working condition. It is available for immediate dispatch to get your operations running again with minimal downtime. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the function of the dial on the LUCA32FU?

The dial sets the motor's full load amperage (FLA) for the thermal overload protection. It is adjustable from 8 to 32 Amperes to precisely match the motor's nameplate rating, ensuring accurate protection against overcurrent situations.

No, the LUCA32FU is a control unit designed specifically for the Schneider Electric TeSys U motor starter system. It must be plugged into a compatible TeSys U power base (e.g., LUB12, LUB32) to function.

'Class 10' refers to the trip class of the thermal overload protection. It means the unit will trip within 10 seconds when subjected to a locked-rotor current that is 7.2 times the set full load amperage (FLA). This class is suitable for standard motor applications with normal starting times.
