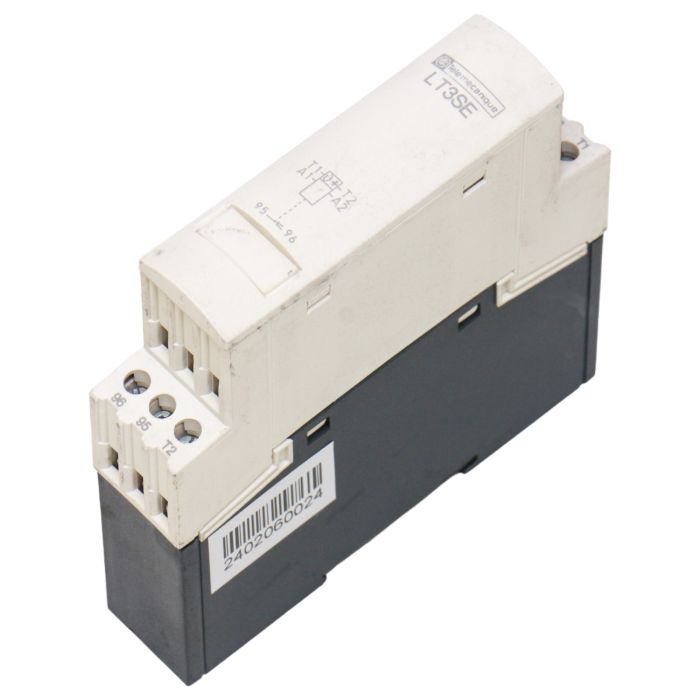

• Thermistor relay
• PTC probe
• Automatic reset
• 24V DC control circuit voltage

Specifications:

• Range of product: LT3
• Device short name: LT3SE
• Product or component type: Thermistor production units
• [Uc] control circuit voltage: 24VDC
• Reset: Automatic reset
• Control circuit voltage limits: 0.8 - 1.25 Uc
• Type and composition of contact: 1 NC mono voltage
• Ith conventional thermal flow in free air: 5A for output control relay
• Ui rated insulation voltage: Output control relay - 500V AC
• Your assigned operating voltage: 250V AC 50/60 Hz for output control relay
• Signaling function: Without
• Control type: Automatic reset
• Convertibility probe: Label marking A conforming to IEC 60034-11
• Hold-in power consumption in W: 1W
• Hold-in power consumption in VA: 2.5VA
• Resistance: 1500-1650 Ohm reset, 2700-3100 Ohm circuit
• Number of probes: 0-6
• Input voltage: <2.5V (1500 Ohm) for probe, <7.5V (4000 Ohm) for probe conforming to IEC 60034-11
• Maximum short circuit detection resistance: 20 ohms
• Terms of use: Connecting probes 400m >1mm², Connecting probes 300m >0.75mm²
• [Uimp] rated impulse withstand voltage: 2.5kV
• Nominal power in VA: 100VA at 220V - electrical durability: 500000 cycles
• Breaking capacity: 2A at 24V DC DC-13, 3A at 250V AC AC-16, 6A at 120V AC AC-16
• Connections - terminals: Various options for different cable sizes
• Tightening torque: 0.8Nm
• Height: 100mm
• Width: 22.5mm
• Depth: 100mm
• Net weight: 0.22kg

Environment:

• Standards: IEC 60947-8, IEC 60034-11, VDE 0660
• IP degree of protection: IP20 conforming to IEC 60529, IP20 conforming to VDE 0106
• Ambient air temperature for operation: -25 to 60°C
• Ambient air temperature for storage: -40 to 85°C
• Operating height: <=1500m without temperature reduction, >1500-3000m with temperature reduction
• Vibration resistance: 1 gn 25-150 Hz, 2.5 gn 2-25 Hz conforming to IEC 60068-2-6
• Shock resistance: 5 gn 11 ms conforming to IEC 60068-2-27
• Electromagnetic compatibility: Various resistance levels conforming to IEC standards

LT3SE00BD Schneider Electric is a versatile industrial item suitable for various applications. It can be used in automation systems, control panels, and electrical distribution systems. This high-quality product is available for purchase at PLC2Day, providing reliable solutions for your industrial needs.
