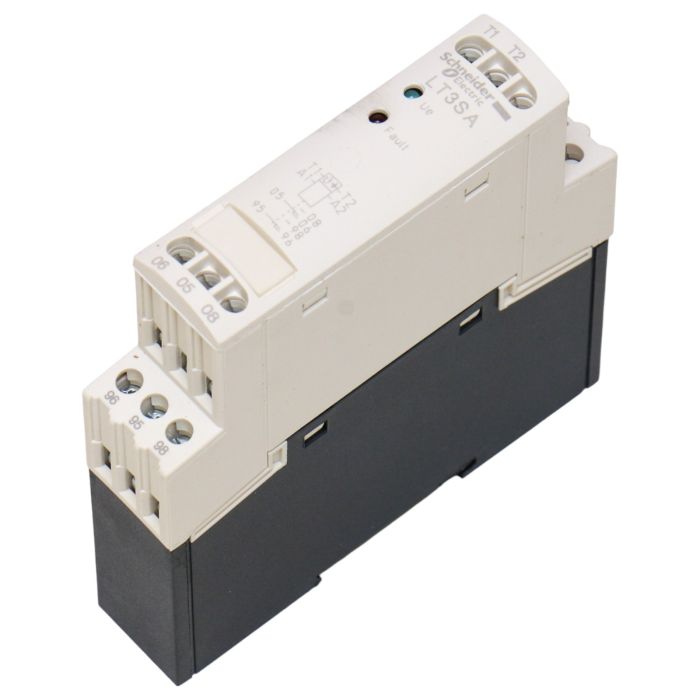

PTC probe relay TeSys - LT3 with automatic reset - 24...230 V - 2 OC: Specifications, Main, Range of produc, LT3, Device short name, LT3SA, Product or component type, Thermistor protection units, [Uc] control circuit voltage, 24...230 V AC 50/60 Hz, 24...230 V DC, Reset, Automatic reset, Complementary, Control circuit voltage limits, 0.8...1.1 Uc, Contacts type and composition, 2 C/O multi voltage, [Ith] conventional free air thermal current, 5 A for output control relay, [Ui] rated insulation voltage, Output control relay: 500 V AC, [Ue] rated operational voltage, 250 V AC 50/60 Hz for output control relay, Signalling function, Fault indication, Voltage indication, control type, Automatic reset, Probe interchangeability, Label mark A conforming to IEC 60034-11, Hold-in power consumption in W, 1 W, Hold-in power consumption in VA, 2.5 VA, Resistance, 1500…1650 Ohm reset, 2700…3100 Ohm tripping, Number of probes, 0…6, Input voltage, < 2.5 V (1500 Ohm) for probe, < 7.5 V (4000 Ohm) for probe conforming to IEC 60034-11, Maximum short circuit detection resistance, 20 Ohm, Condition of use, Connection of probes 400 m >1 mm², Connection of probes 500 m >1.5 mm², [Uimp] rated impulse withstand voltage, 2.5 kV, Rated power in VA, 100 VA at 220 V - electrical durability: 500000 cycles, Breaking capacity, 2 A at 24 V DC DC-13, 3 A at 250 V AC AC-16, 6 A at 120 V AC AC-16, Connections - terminals, Power circuit: cage type connector 1 cable(s) 0.75…2.5 mm²flexible with cable end, Power circuit: cage type connector 1 cable(s) 0.75…2.5 mm²solid with cable end, Power circuit: cage type connector 1 cable(s) 1…2.5 mm²flexible without cable end, Power circuit: cage type connector 1 cable(s) 1…2.5 mm²solid without cable end, Power circuit: cage type connector 2 cable(s) 0.75…2.5 mm²flexible with cable end, Power circuit: cage type connector 2 cable(s) 0.75…2.5 mm²solid with cable end, Power circuit: cage type connector 2 cable(s) 1…2.5 mm²flexible without cable end, Power circuit: cage type connector 2 cable(s) 1…2.5 mm²solid without cable end, Tightening torque, 0.8 N.m, height, 100 mm, Width, 22.5 mm, Depth, 100 mm, Net weight, 0.22 kg, Environment, Standards, IEC 60947-8, IEC 60034-11, VDE 0660, IP degree of protection, IP20 conforming to IEC 60529, IP20 conforming to VDE 0106, ambient air temperature for operation, -25…60 °C, Ambient air temperature for storage, -40…85 °C conforming to IEC 60068-2-2, -40…85 °C conforming to IEC 60068-2-2, Operating altitude, <= 1500 m without derating in temperature, > 1500...3000 m with derating in temperature, Vibration resistance, 1 gn 25...150 Hz conforming to IEC 60068-2-6, 2.5 gn 2...25 Hz conforming to IEC 60068-2-6, Shock resistance, 5 gn 11 ms conforming to IEC 60068-2-27, Electromagnetic compatibility, Resistance to electrostatic discharge level 3 conforming to IEC 61000-4-2, Resistance to fast transient level 3 conforming to IEC 61000-4-4, Surge resistance 1.2/50-8/20 level 4 conforming to IEC 61000-4-5, Susceptibility to electromagnetic fields level 3 conforming to IEC 61000-4-3, Immunity to microbreaks and voltage drops conforming to IEC 61000-4-11

• Specifications:
• Main
• Range of product
• LT3
• Device short name
• LT3SA
• Product features:
• Product or component type: Thermistor protection units
• [Uc] control circuit voltage: 24...230 V AC 50/60 Hz, 24...230 V DC
• Reset: Automatic reset
• Control circuit voltage limits: 0.8...1.1 Uc
• Contacts type and composition: 2 C/O multi voltage
• [Ith] conventional free air thermal current: 5 A for output control relay
• [Ui] rated insulation voltage: Output control relay - 500 V AC
• [Ue] rated operational voltage: 250 V AC 50/60 Hz for output control relay
• Signalling function: Fault indication, Voltage indication, control type: Automatic reset
• Probe interchangeability: Label mark A conforming to IEC 60034-11
• Hold-in power consumption in W: 1 W
• Hold-in power consumption in VA: 2.5 VA
• Resistance: 1500…1650 Ohm reset, 2700…3100 Ohm tripping
• Number of probes: 0…6
• Input voltage: < 2.5 V (1500 Ohm) for probe, < 7.5 V (4000 Ohm) for probe conforming to IEC 60034-11
• Maximum short circuit detection resistance: 20 Ohm
• Condition of use: Connection of probes 400 m >1 mm², Connection of probes 500 m >1.5 mm²
• [Uimp] rated impulse withstand voltage: 2.5 kV
• Rated power in VA: 100 VA at 220 V - electrical durability: 500000 cycles
• Breaking capacity: 2 A at 24 V DC DC-13, 3 A at 250 V AC AC-16, 6 A at 120 V AC AC-16
• Connections - terminals: Various cage type connectors for different cable types and sizes
• Tightening torque: 0.8 N.m
• Specifications:
• height: 100 mm
• Width: 22.5 mm
• Depth: 100 mm
• Net weight: 0.22 kg
• Environment:
• Standards: IEC 60947-8, IEC 60034-11, VDE 0660
• IP degree of protection: IP20 conforming to IEC 60529, IP20 conforming to VDE 0106
• Ambient air temperature for operation: -25…60 °C
• Ambient air temperature for storage: -40…85 °C conforming to IEC 60068-2-2
• Operating altitude: <= 1500 m without derating in temperature, > 1500...3000 m with derating in temperature
• Vibration resistance: 1 gn 25...150 Hz conforming to IEC 60068-2-6, 2.5 gn 2...25 Hz conforming to IEC 60068-2-6
• Shock resistance: 5 gn 11 ms conforming to IEC 60068-2-27
• Electromagnetic compatibility: Various levels of resistance and immunity to electromagnetic interference

Schneider Electric LT3SA00MW 068826 is a top-quality industrial product that can be purchased at PLC2Day. This item is widely used in industrial applications, providing reliable performance and efficiency in various settings.
