Thermistor protection units, TeSys LT3, 250VAC 50/60Hz, 24 to 48VDC, 1NO+1NC, automatic reset: Specifications, Main, Range of produc, LT3, Device short name, LT3SA, Product or component type, Thermistor protection units, [Uc] control circuit voltage, 24...48 V DC, Reset, Automatic reset, Complementary, Control circuit voltage limits, 0.8...1.25 Uc, Contacts type and composition, 1 NC + 1 NO dual voltage, [Ith] conventional free air thermal current, 5 A output control relay, [Ui] rated insulation voltage, Output control relay 500 V AC, [Ue] rated operational voltage, 250 V AC 50/60 Hz output control relay, Signalling function, Fault indication, Voltage indication, control type, Automatic reset, Probe interchangeability, Label mark A IEC 60034-11, Hold-in power consumption in W, 1 W, Hold-in power consumption in VA, 2.5 VA, Resistance, 1500…1650 Ohm reset, 2700…3100 Ohm tripping, Number of probes, 0…6, Input voltage, < 2.5 V 1500 Ohm) for probe, < 7.5 V 4000 Ohm) for probe IEC 60034-11, Maximum short circuit detection resistance, 20 Ohm, Condition of use, Connection of probes 1312.34 ft (400 m) >0.00 in² (1 mm²), Connection of probes 1640.42 ft (500 m) >0.00 in² (1.5 mm²), [Uimp] rated impulse withstand voltage, 2.5 kV, Rated power in VA, 100 VA 220 V 500000 cycles, Breaking capacity, 2 A 24 V DC DC-13, 3 A 250 V AC AC-16, 6 A 120 V AC AC-16, Connections - terminals, Power circuit cage type connector 1 0.00…0.00 in² (0.75…2.5 mm²)flexible with cable end, Power circuit cage type connector 1 0.00…0.00 in² (0.75…2.5 mm²)solid with cable end, Power circuit cage type connector 1 0.00…0.00 in² (1…2.5 mm²)flexible without cable end, Power circuit cage type connector 1 0.00…0.00 in² (1…2.5 mm²)solid without cable end, Power circuit cage type connector 2 0.00…0.00 in² (0.75…2.5 mm²)flexible with cable end, Power circuit cage type connector 2 0.00…0.00 in² (0.75…2.5 mm²)solid with cable end, Power circuit cage type connector 2 0.00…0.00 in² (1…2.5 mm²)flexible without cable end, Power circuit cage type connector 2 0.00…0.00 in² (1…2.5 mm²)solid without cable end, Tightening torque, 0.8 N.m, height, 3.94 in (100 mm), Width, 0.89 in (22.5 mm), Depth, 3.94 in (100 mm), Net weight, 0.49 lb(US) (0.22 kg), Environment, Standards, IEC 60947-8, IEC 60034-11, VDE 0660, IP degree of protection, IP20 IEC 60529, IP20 VDE 0106, ambient air temperature for operation, -13…140 °F (-25…60 °C), Ambient air temperature for storage, -40…185 °F (-40…85 °C) IEC 60068-2-2, -40…185 °F (-40…85 °C) IEC 60068-2-2, Operating altitude, <= 1500 m without derating in temperature, > 1500...3000 m with derating in temperature, Vibration resistance, 1 gn 25...150 Hz IEC 60068-2-6, 2.5 gn 2...25 Hz IEC 60068-2-6, Shock resistance, 5 gn 11 ms IEC 60068-2-27, Electromagnetic compatibility, Resistance to electrostatic discharge level 3 IEC 61000-4-2, Resistance to fast transient level 3 IEC 61000-4-4, Surge resistance 1.2/50-8/20 level 4 IEC 61000-4-5, Susceptibility to electromagnetic fields level 3 IEC 61000-4-3, Immunity to microbreaks and voltage drops IEC 61000-4-11.

• Thermistor protection units
• TeSys LT3
• 250VAC 50/60Hz
• 24 to 48VDC
• 1NO+1NC
• Automatic reset

Specifications:

• Main
• Range of product: LT3
• Device short name: LT3SA
• Product or component type: Thermistor protection units
• [Uc] control circuit voltage: 24...48 V DC
• Reset: Automatic reset

Complementary:

• Control circuit voltage limits: 0.8...1.25 Uc
• Contacts type and composition: 1 NC + 1 NO dual voltage
• [Ith] conventional free air thermal current: 5 A output control relay
• [Ui] rated insulation voltage: Output control relay 500 V AC
• [Ue] rated operational voltage: 250 V AC 50/60 Hz output control relay

Other Features:

• Signalling function: Fault indication, Voltage indication
• Control type: Automatic reset
• Probe interchangeability: Label mark A IEC 60034-11
• Hold-in power consumption in W: 1 W

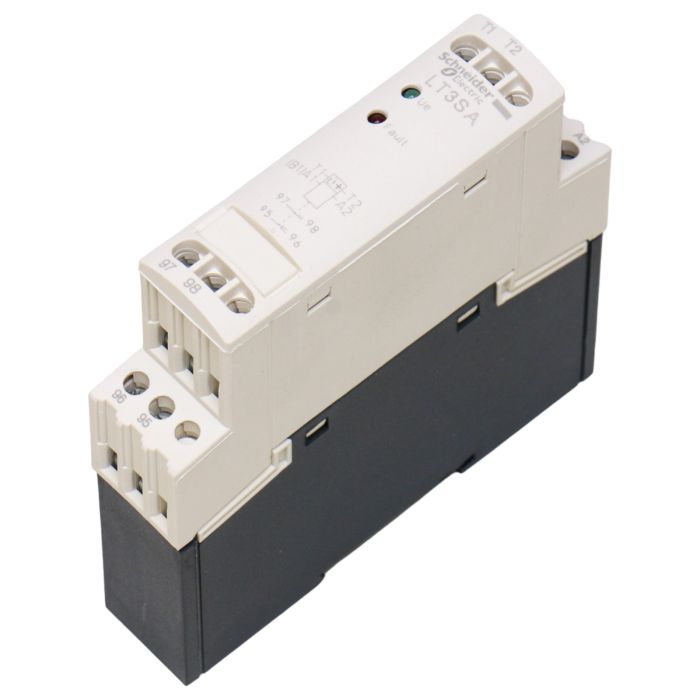

Schneider Electric LT3SA00ED 068820 is a reliable industrial automation component that can be used in various industrial applications. This item is perfect for managing electrical systems efficiently. Get this high-quality product at PLC2Day for all your automation needs.
