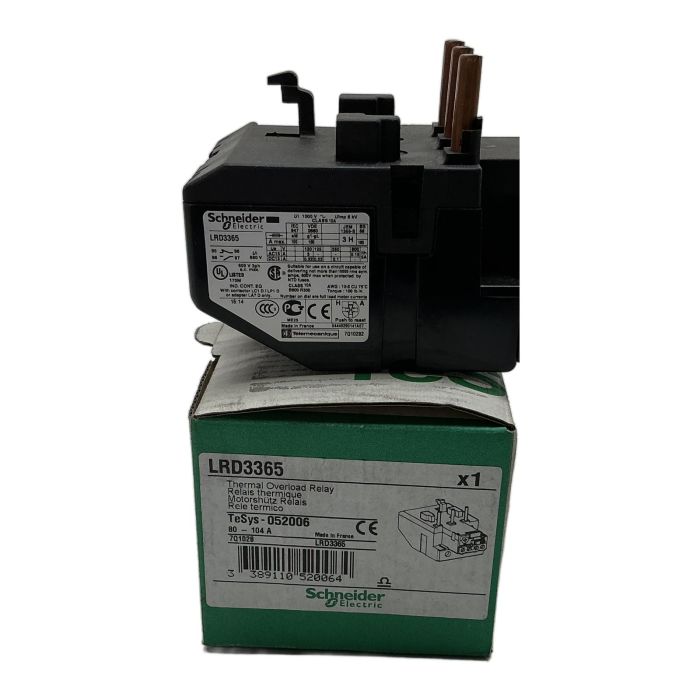

Schneider Electric LRD3365 TeSys Deca Thermal Overload Relay

Description

The LRD3365 is a thermal overload relay from Schneider Electric's TeSys Deca range, engineered for the protection of motors. It provides reliable and accurate protection against overloads and phase failures. With an adjustable current setting range of 80 to 104A and a trip class of 10A, this relay is suitable for a wide range of standard industrial applications. It is designed for direct mounting on TeSys D contactors LC1D80 and LC1D95, creating a compact motor starter solution.

Specifications

• Manufacturer: Schneider Electric
• Model: LRD3365
• Range: TeSys Deca
• Product Type: Differential Thermal Overload Relay
• Thermal Protection Adjustment Range: 80 to 104 A
• Trip Class: Class 10A conforming to IEC 60947-4-1
• Network Type: AC
• Rated Insulation Voltage [Ui]: 1000 V power circuit conforming to IEC 60947-4-1
• Mounting: Direct on contactor or separate mounting on DIN rail

Label Info

• Brand: Schneider Electric / Telemecanique
• Part Number: LRD3365
• Order Code: 052006
• EAN: 3389110520064

Application

This thermal overload relay is primarily used in industrial automation and control systems for motor protection in applications such as pumps, fans, conveyors, and machine tools. It prevents motor damage from overcurrents, ensuring operational reliability and safety.

Country of Origin

Made in France.

CO2 Impact

By purchasing this reused component, you are contributing to the circular economy and avoiding 20.4 kg of CO2 emissions, which is equivalent to driving a car for 102 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

A Class 10A relay, like the LRD3365, will trip within 10 seconds at 7.2 times the set current, making it suitable for standard motor starts. A Class 20 relay allows for a longer starting time (up to 20 seconds) and is used for motors with heavy loads or high inertia starts.

The dial should be set to the motor's full-load ampere (FLA) rating, which is found on the motor's nameplate. Setting it correctly ensures the motor is protected without causing nuisance tripping.

Yes, while it is designed for direct mounting on LC1D80/95 contactors, it can also be mounted separately on a DIN rail using a specific terminal block adapter, such as the LA7D3064.
