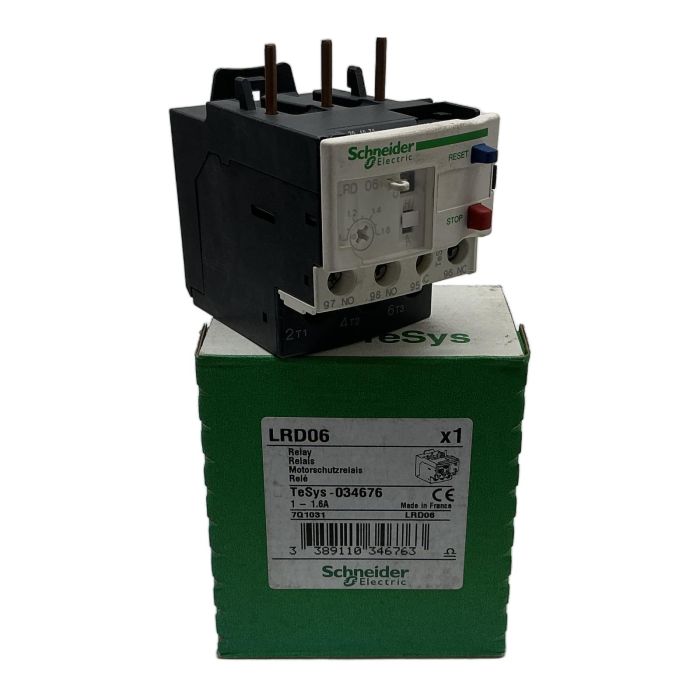

Schneider Electric TeSys LRD06 Thermal Overload Relay

Description

The Schneider Electric LRD06 is a high-performance differential thermal overload relay from the TeSys Deca range. It is engineered to provide precise and reliable protection for motors against thermal overloads, phase failure, and phase imbalance. With an adjustable current setting range of 1A to 1.6A, this relay is ideal for a variety of industrial applications. It is designed for direct mounting onto TeSys D contactors (LC1D09 to LC1D38), ensuring a compact and seamless installation.

Specifications

• Manufacturer: Schneider Electric
• Product Range: TeSys Deca (formerly TeSys D)
• Product Type: Differential thermal overload relay
• Model: LRD06
• Order Code: 034676
• Thermal Protection Adjustment Range: 1...1.6 A
• Rated Insulation Voltage [Ui]: 690 V AC 50/60 Hz
• Network Type: AC
• Trip Class: Class 10A conforming to IEC 60947-4-1
• Mounting Support: Plate, Rail, Direct on contactor

Label Info

• Manufacturer: Schneider Electric
• Type: LRD06
• Part Number: 034676
• Current Range: 1 - 1.6A
• EAN: 3389110346763

Application

This thermal overload relay is primarily used in industrial automation and control systems for motor protection in applications such as conveyors, pumps, fans, and mixers. Its differential mechanism makes it particularly suitable for applications where phase loss could cause significant damage.

Country of Origin

Made in France.

CO2 Impact

Opting for this reused Schneider Electric LRD06 relay prevents the emission of approximately 6.0 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the CO2 absorbed by a mature tree over several months.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The Schneider Electric LRD06 has a trip class of 10A according to IEC 60947-4-1, which is suitable for standard motor starting conditions.

Yes, while it is designed for direct mounting on TeSys D contactors, it can also be mounted separately using the LAD7B106 terminal block accessory.

Yes, the LRD06 is a differential thermal overload relay, which means it includes built-in protection against phase failure or imbalance, helping to prevent motor damage.
