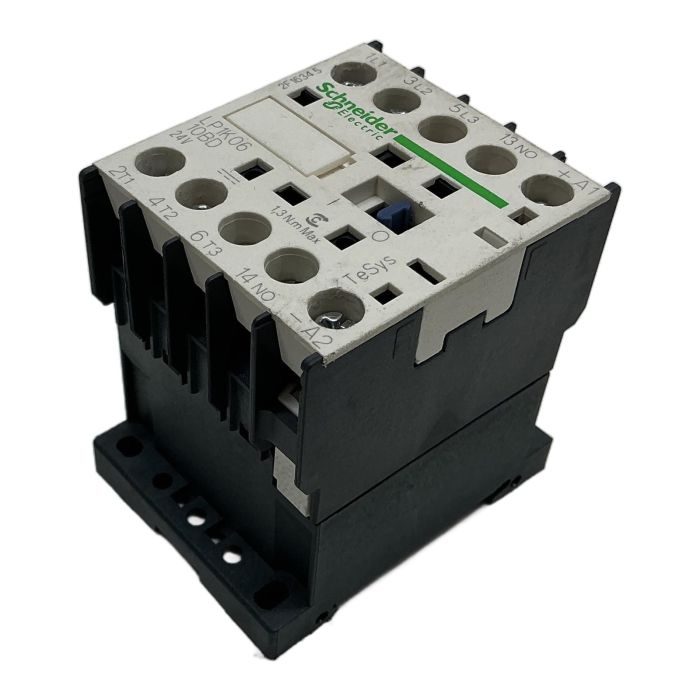

Schneider Electric LP1K0610BD TeSys K Contactor

Description

The LP1K0610BD is a high-performance 3-pole contactor from Schneider Electric's renowned TeSys K series. Engineered for compact and efficient control, this device is ideal for motor control and non-inductive load switching applications. It features a 24V DC low-consumption coil, making it compatible with direct PLC control, and offers a rated operational current of 6A under AC-3 conditions. Its robust design ensures a long mechanical and electrical life, providing reliability in demanding industrial environments.

Specifications

• Manufacturer: Schneider Electric
• Part Number: LP1K0610BD
• Series: TeSys K
• Type: Contactor
• Number of Poles: 3
• Coil Voltage: 24V DC
• Rated Operational Current (AC-3, <= 440V): 6A
• Motor Power Rating (AC-3, 400V): 2.2 kW
• Auxiliary Contacts: 1 Normally Open (NO)
• Mounting: DIN Rail or Screw Mount

Label Info

• Rated Insulation Voltage (Ui): 690V
• Rated Impulse Withstand Voltage (Uimp): 8kV
• Conventional Thermal Current (Ith): 20A
• Standards: IEC/EN 60947-4-1, UL, CSA

Application

This contactor is primarily used for controlling three-phase motors in applications such as conveyors, pumps, fans, and small machinery. It is also suitable for switching resistive loads in heating or lighting systems.

Country of Origin

Made in France.

CO2 Impact

Opting for this pre-owned component avoids the emission of approximately 7.2 kg of CO2, which would have been generated during the production of a new one. This choice supports sustainable industrial practices.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'BD' suffix in Schneider Electric's TeSys K series indicates the coil type. Specifically, it signifies a low-consumption 24V DC coil, which is suitable for direct control from PLC outputs without the need for an interposing relay.

Yes, the TeSys K series is modular. You can add front-mounted auxiliary contact blocks, such as the LA1KN series, to expand the number of normally open (NO) or normally closed (NC) contacts as needed for your application.

As indicated on the top of the contactor, the maximum recommended tightening torque for the power terminals (1L1 to 6T3) is 1.3 N.m (Newton-meters). Adhering to this torque specification ensures a secure connection without damaging the terminals.
