Schneider Electric TeSys Deca Reversing Contactor

Description

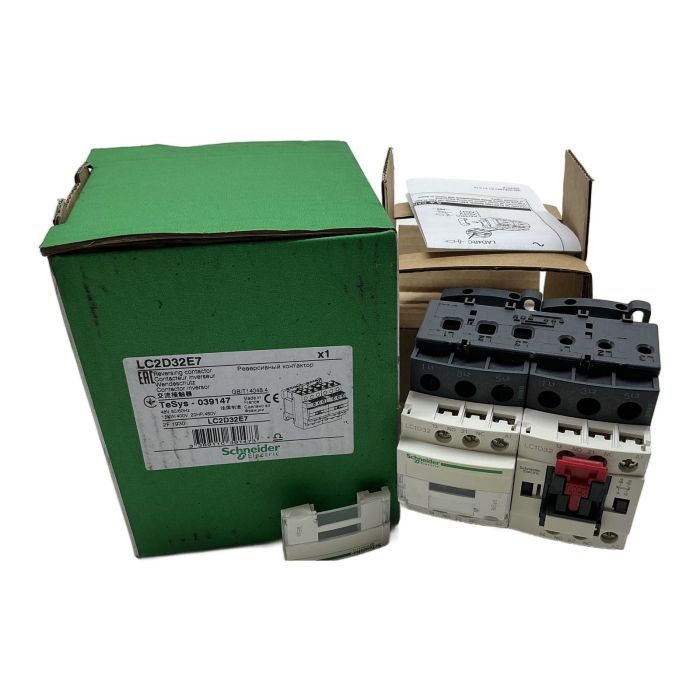

The LC2D32E7 is a 3-pole TeSys Deca reversing contactor from Schneider Electric, designed for motor control applications. This assembly consists of two mechanically interlocked contactors, providing a safe and reliable solution for changing motor direction. It is rated for 15 kW at 400V (AC-3) and operates with a 48V AC coil. Its compact design allows for easy integration into control panels, suitable for DIN rail mounting.

Specifications

• Manufacturer: Schneider Electric
• Product Range: TeSys Deca
• Model: LC2D32E7
• Part Number: 039147
• Type: Reversing Contactor
• Poles: 3-Pole
• Coil Voltage: 48V AC, 50/60 Hz
• Rated Operational Current (AC-3): 32 A
• Rated Power (AC-3 / 400V): 15 kW
• Auxiliary Contacts: 1 NO + 1 NC (per contactor)

Label Info

• EAN: 3389110391473
• Date Code: 2F 1930

Application

Ideal for use in industrial automation for controlling AC motors where reversing functionality is required, such as in conveyors, hoists, lifts, and automated machinery.

Country of Origin

Made in France.

CO2 Impact

Choosing this renewed component saves approximately 36 kg of CO2 compared to a new one, contributing to a more sustainable industrial operation.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the electrical and mechanical durability of the LC2D32E7 contactor?

The Schneider Electric TeSys Deca series is known for its high durability. The LC2D32E7 has a mechanical durability of 15 million cycles and an electrical durability of 1.65 million cycles for AC-3 load, ensuring long-term reliability in demanding applications.

Yes, the LC2D32E7 is designed for modularity. You can mount additional front-mount (LADN) or side-mount (LADS) auxiliary contact blocks from the TeSys D/Deca range. However, check spacing and panel depth limitations, especially when using side-mounted blocks.

Absolutely. The LC2D32E7 is designed to directly mount a TeSys Deca (LRD) thermal overload relay, such as the LRD32, to provide comprehensive motor protection against overcurrents. This creates a compact and fully functional reversing motor starter.
