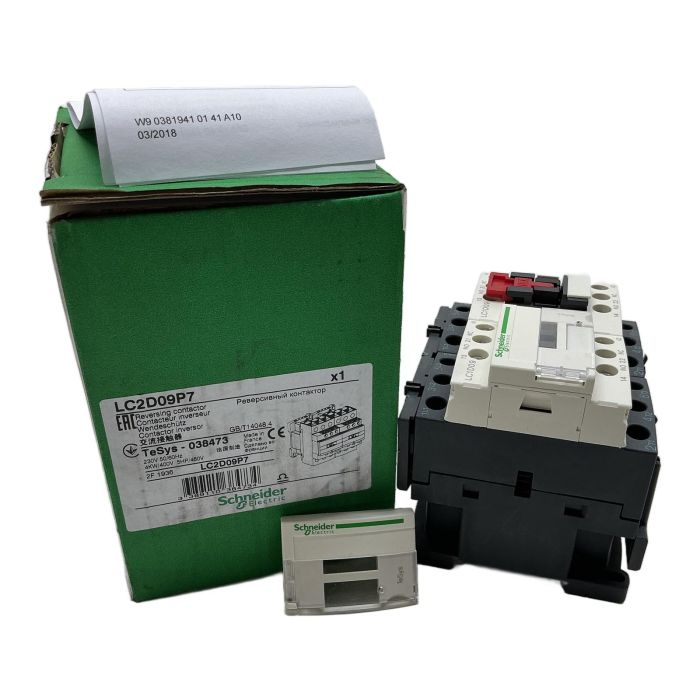

Schneider Electric TeSys D Reversing Contactor

Description

The LC2D09P7 from Schneider Electric is a high-performance 3-pole reversing contactor from the renowned TeSys D series. It is designed for switching and controlling three-phase motors and other resistive loads. This unit comes pre-assembled with a mechanical interlock for safety, preventing the simultaneous operation of the forward and reverse contactors. Its robust construction ensures long mechanical and electrical life, making it a reliable choice for industrial automation and control systems.

Specifications

• Manufacturer: Schneider Electric
• Part Number: LC2D09P7
• Order Code: 038473
• Series: TeSys D
• Number of Poles: 3
• Rated Operational Current (AC-3): 9A
• Control Circuit Voltage: 230V AC 50/60Hz
• Motor Power Rating: 4 kW at 400V AC
• Auxiliary Contacts: 1 NO + 1 NC per contactor
• Mounting: DIN Rail or Screw

Label Info

• LC2D09P7
• Ue: up to 690V
• Ui: 690V
• Uimp: 6kV

Application

This reversing contactor is ideal for applications requiring motor direction changes, such as in conveyor systems, automated doors, hoists, and machine tools. Its compact design saves panel space while providing reliable performance.

Country of Origin

Made in France.

CO2 Impact

Opting for this component saves approximately 32 kg of CO2 emissions compared to a new purchase, contributing to a more sustainable industrial environment.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The mechanical interlock is a critical safety feature that physically prevents both contactors (forward and reverse) from being energized at the same time. This action prevents a direct short circuit across the power lines, which could cause severe damage to the equipment and pose a safety hazard.

Yes, the TeSys D series is modular. You can add front or side-mounted auxiliary contact blocks (like the LADN and LADC series) to increase the number of available control contacts for signaling and interlocking purposes.

For motor protection, this contactor is designed to be paired with a Schneider Electric TeSys LRD thermal overload relay. For a 9A motor, a relay like the LRD14 (7-10A range) would be an appropriate choice, which can be mounted directly onto the contactor.
