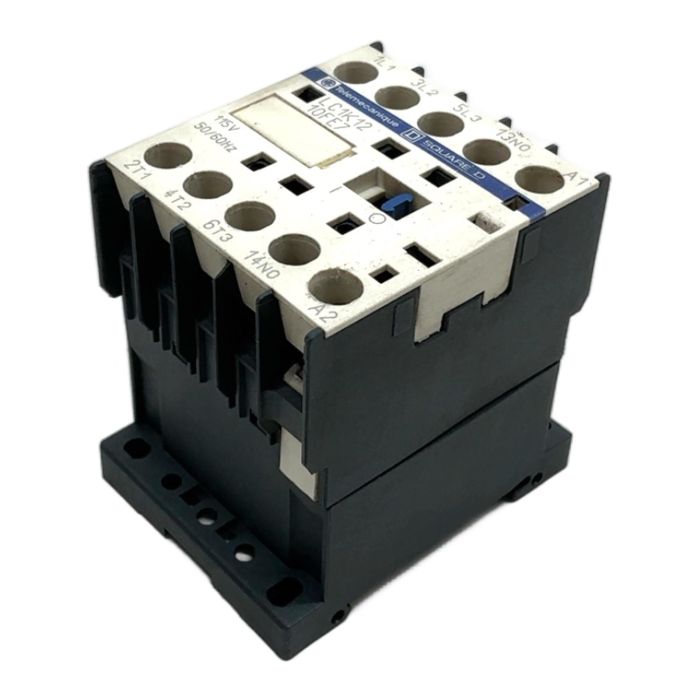

Schneider Electric TeSys K 3-Pole Contactor

Description

The Schneider Electric LC1K1210FE7 is a compact and reliable 3-pole contactor from the TeSys K series. It is designed for switching electric motors and other resistive or inductive loads in industrial environments. This model operates with a 115V AC coil and is rated for a 12A AC-3 load, corresponding to a 5.5 kW motor at 400V. Its robust construction ensures a long operational life. This unit is used but in excellent working condition, making it a cost-effective solution for your automation needs. Order now from PLC2Day for expert support and fast delivery.

Specifications

• Manufacturer: Schneider Electric
• Series: TeSys K
• Model: LC1K1210FE7
• Poles: 3-Pole
• Coil Voltage: 115V AC at 50/60Hz
• Rated Operational Current (AC-3, <= 440V): 12 A
• Motor Power (AC-3, 400V): 5.5 kW
• Auxiliary Contacts: 1 NO (Normally Open)
• Rated Insulation Voltage (Ui): 690V
• Conventional Free Air Thermal Current (Ith): 20A

Label Info

• AC3 kW 230V: 3
• AC3 kW 400V: 5.5
• AC3 kW 690V: 4
• HP 3ph 208-240V: 3
• HP 3ph 480V: 7.5
• HP 3ph 600V: 10

Application

This contactor is ideal for motor control applications in HVAC systems, conveyor belts, pumps, and other industrial machinery. Its compact size allows for easy integration into standard control panels and enclosures.

Country of Origin

Made in France.

CO2 Impact

By purchasing this pre-owned contactor, you contribute to a circular economy and avoid the production of a new item, saving approximately 7.2 kg of CO2 emissions. This is comparable to the energy needed to charge a smartphone over 800 times.

Availability

This item is in stock and available for immediate dispatch. We offer worldwide shipping options to get your operations running without delay.

FAQ

The coil voltage for this specific model (LC1K1210FE7) is 115V AC 50/60Hz. On TeSys K contactors, the coil is an integral part and not designed to be easily replaced like on the larger TeSys D series.

The AC-3 rating of 12A is a standard for utilization category, specifically for switching squirrel-cage motors during running. It means this contactor is certified to handle the typical electrical stresses of starting and stopping a motor with up to a 12A full-load current.

Yes, the TeSys K series is modular. You can add front-mounting auxiliary contact blocks (e.g., LA1KN series) to increase the number of available NO (Normally Open) or NC (Normally Closed) contacts for your control logic.
