Schneider Electric TeSys K Contactor LC1K1210F7

Description

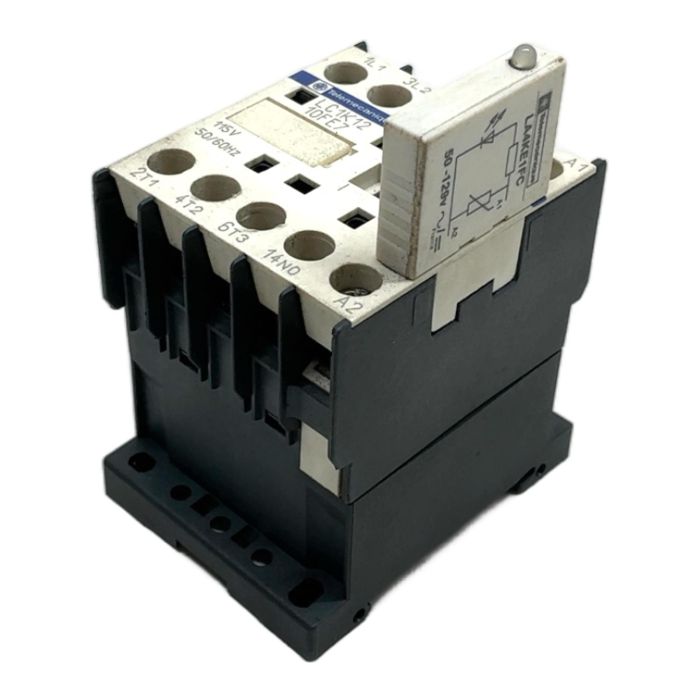

The Schneider Electric LC1K1210F7 is a high-performance 3-pole contactor from the TeSys K range. It is engineered for compact size and reliability in demanding automation and motor control applications. This model operates with a 115V AC coil and is rated for a 12A inductive load (AC-3). It features an integrated normally open auxiliary contact for signaling purposes. This unit includes a pre-installed LA1KE1FC surge suppressor for added coil protection.

Specifications

• Manufacturer: Schneider Electric
• Series: TeSys K
• Model: LC1K1210F7
• Product Type: Contactor
• Number of Poles: 3
• Rated Operational Current (AC-3, <= 440V): 12A
• Control Circuit Voltage: 115V AC 50/60Hz
• Auxiliary Contact: 1 NO
• Rated Insulation Voltage (Ui): 690V
• Rated Impulse Withstand Voltage (Uimp): 8kV

Label Info

• Ith (Conventional free air thermal current): 20A
• Power Rating (AC-3): 3kW at 230V, 5.5kW at 400V
• Certifications: UL, CSA, CE, NOM

Application

Ideal for controlling motors, pumps, fans, and other resistive or inductive loads in industrial control panels, HVAC systems, and manufacturing equipment.

Country of Origin

This product is made in France.

CO2 Impact

Choosing this pre-owned contactor over a new one prevents the emission of approximately 7.2 kg of CO2, a sustainable choice for your operations.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What does the 'F7' in the part number LC1K1210F7 signify?

The 'F7' code specifies the control circuit (coil) voltage. For the TeSys K series, F7 indicates a coil voltage of 115V AC at 50/60Hz.

Question?
Can I use this contactor for DC switching applications?

While primarily designed for AC motor loads (AC-3), this contactor can be used for some DC applications (DC-1, DC-3, DC-5), but its rated current will be significantly lower than the AC rating. Always consult the official datasheet for DC derating curves.

Question?
This unit comes with a white LA1KE1FC module. Is this required for operation?

The LA1KE1FC is a varistor-based surge suppressor. It is not required for the basic operation of the contactor but is highly recommended to protect the coil and control circuit from voltage spikes, extending the life of both the contactor and connected control components like PLCs.
