Schneider Electric TeSys K 3-Pole Contactor

Description

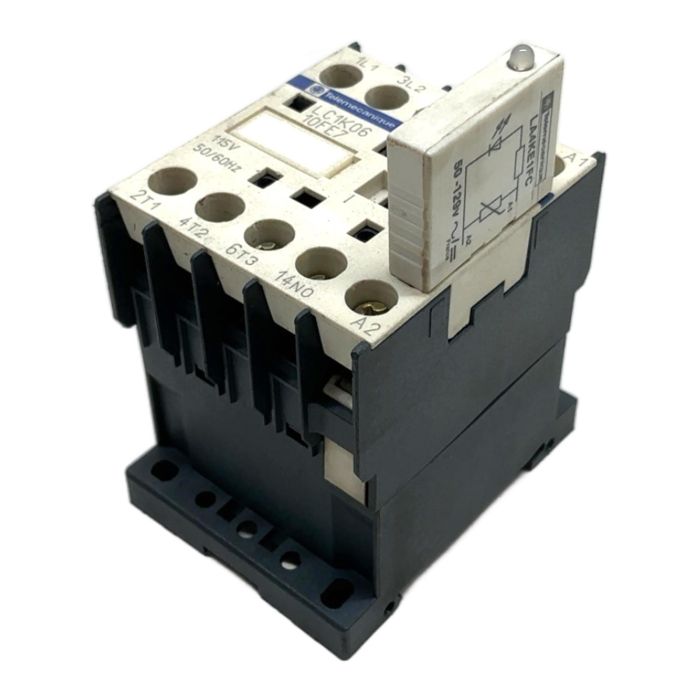

The LC1K0610FE7 is a compact and reliable 3-pole contactor from Schneider Electric's TeSys K range. It is designed for motor control and other switching applications, offering high performance in a small footprint. This unit operates with a 115V AC coil and includes one normally open auxiliary contact. This specific item comes pre-fitted with an LA4KE1FC surge suppressor module for added protection of control circuits.

Specifications

• Manufacturer: Schneider Electric
• Series: TeSys K
• Model: LC1K0610FE7
• Type: Contactor
• Poles: 3-Pole (3NO main contacts)
• Auxiliary Contacts: 1 NO
• Coil Voltage: 115V AC, 50/60Hz
• Rated Operational Current (AC-3, <= 440V): 6A
• Motor Power (AC-3, 400V): 2.2 kW
• Thermal Current (Ith): 20A
• Included Accessory: LA4KE1FC RC Surge Suppressor Module

Label Info

• Model: LC1K06 10FE7
• Coil: 115V 50/60Hz
• Ui: 690V
• Uimp: 8kV

Application

Ideal for use in control panels for switching motors, resistive loads, and other electrical circuits in commercial and industrial environments. Its compact size makes it suitable for applications where space is limited.

Country of Origin

Made in France.

CO2 Impact

Opting for this reused component prevents the emission of approximately 7.2 kg of CO2, which is comparable to the savings from driving a car 36 km.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The LA4KE1FC is an RC (Resistor-Capacitor) surge suppressor. It is connected across the coil terminals (A1 and A2) to dampen high-voltage spikes that occur when the contactor coil is de-energized, protecting sensitive control electronics like PLC outputs.

While primarily designed for AC loads (AC-3 rating), TeSys K contactors can be used for some DC applications (DC-1, DC-3, DC-5). However, the rated current is significantly lower for DC, and the electrical life is reduced. Always consult the official Schneider Electric datasheet for specific DC ratings before use.

Ith (20A) is the conventional free air thermal current, which is the maximum current the contactor can carry continuously without overheating. The AC-3 rating (6A) is the operational current for switching squirrel-cage induction motors, which is a more demanding, inductive load. You must use the AC-3 rating for motor applications.
