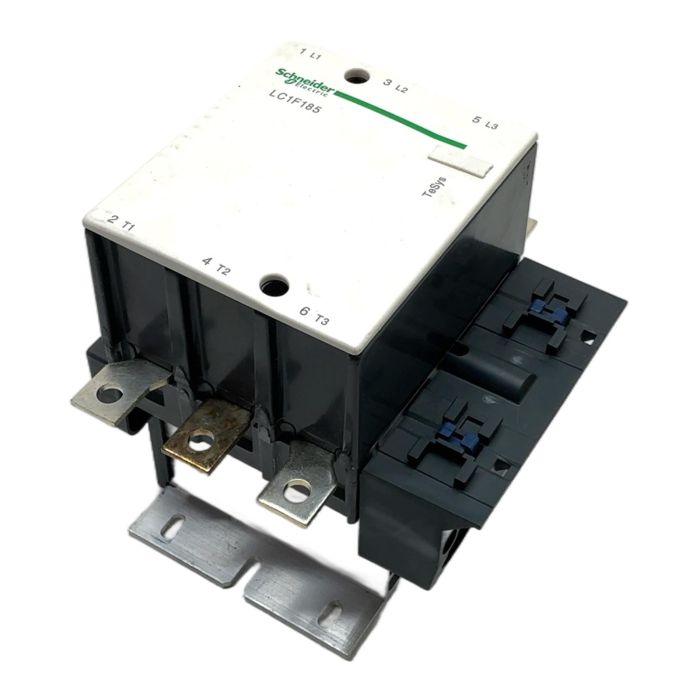

Schneider Electric TeSys F Contactor

Description

The Schneider Electric LC1F185 is a high-performance 3-pole contactor from the TeSys F series, engineered for controlling motors and other demanding electrical loads. Renowned for its durability and reliability, this contactor is a key component for industrial applications requiring high current switching. It provides a long mechanical and electrical lifespan, ensuring dependable operation in critical systems.

Specifications

• Manufacturer: Schneider Electric
• Series: TeSys F
• Model: LC1F185
• Poles: 3-Pole (3NO)
• Rated Operational Current (AC-3, <= 440V): 185 A
• Motor Power (AC-3, 400V): 90 kW
• Mounting: Plate mounting

Label Info

Please note: The specific coil voltage is indicated on the side label of the contactor. The full part number (e.g., LC1F185xx) defines the coil characteristics. Please verify this information on the physical unit to ensure compatibility with your control circuit.

Application

This contactor is ideally suited for motor control in various industries, including manufacturing, material handling, HVAC systems, and pumping stations. It is designed to handle the inductive loads associated with starting and stopping large electric motors.

Country of Origin

This product is typically manufactured in France by Schneider Electric.

CO2 Impact

Opting for a reconditioned item like this LC1F185 contactor prevents the emission of approximately 214.0 kg of CO2 compared to manufacturing a new one. This choice supports sustainable industrial practices by reducing waste and conserving resources.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The AC-3 rating of 185A is a standard IEC category for contactors used for starting and stopping squirrel-cage motors. It means this contactor is rated to handle the typical inrush currents and operational loads of a motor up to 90 kW at 400V without degradation.

The coil voltage is a critical specification and is printed on a label on the side of the contactor, and is also part of the complete model number (e.g., LC1F185M7 for a 220V AC coil). It is essential to verify this on the physical unit before installation to match your control system's voltage.

Yes, the TeSys F range is designed for modularity. The LC1F185 is compatible with the standard range of TeSys F auxiliary contact blocks, timers, and mechanical interlocks designed for this frame size, ensuring easy integration and replacement.
