Schneider Electric TeSys F 3-Pole Contactor

Description

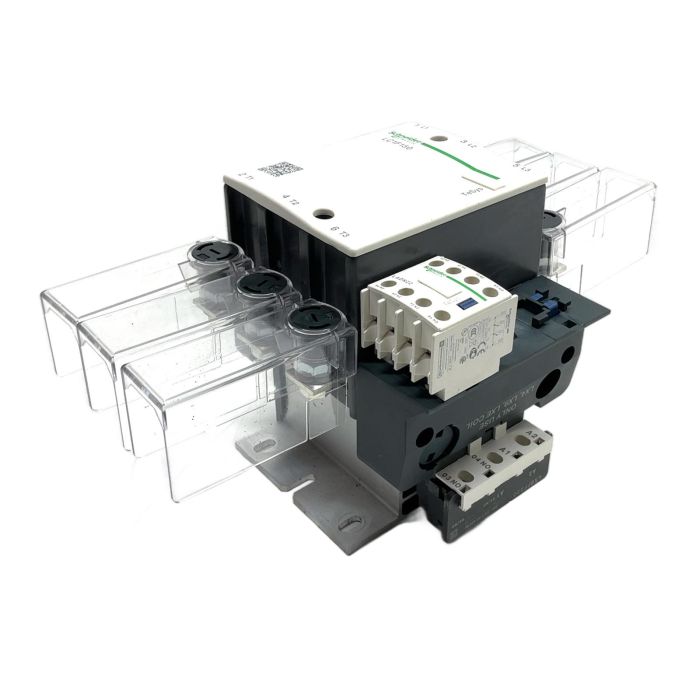

This is a high-capacity TeSys F contactor, model LC1F150, from Schneider Electric. It is engineered for controlling heavy-duty AC motors and other resistive or inductive loads. This assembly comes complete with an electronic coil (LX9FF220) for a control voltage of 220-230V AC and a top-mounted LADN22 auxiliary contact block featuring 2 normally open and 2 normally closed contacts. Its robust design ensures reliability in demanding industrial applications.

Specifications

• Manufacturer: Schneider Electric
• Series: TeSys F
• Model: LC1F150
• Poles: 3-Pole
• AC-3 Motor Rating (at 400V): 75 kW
• AC-3 Current Rating (at <= 440V): 150 A
• AC-1 Thermal Current (Ith): 250 A
• Coil Model: LX9FF220
• Coil Voltage: 220-230V AC, 40-400 Hz
• Auxiliary Contacts: LADN22 (2 NO + 2 NC)

Label Info

• Rated Insulation Voltage (Ui): 1000V
• Rated Impulse Withstand Voltage (Uimp): 8 kV
• Standards: IEC/EN 60947-4-1, UL, CSA

Application

This contactor is ideal for motor control in applications such as pumps, fans, conveyors, compressors, and HVAC systems. It is also suitable for switching capacitor banks and lighting systems.

Country of Origin

The main contactor is made in the Czech Republic, and the auxiliary contact block is made in France.

CO2 Impact

Opting for this reused contactor prevents the emission of approximately 48 kg of CO2 compared to manufacturing a new one. This saving is comparable to driving a car for 240 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Yes, the coil is a modular component. You can replace the LX9FF220 electronic coil with other compatible coils from the LX9F or LX4F (DC) series, but ensure the voltage and type match your control circuit requirements.

The breaking capacity is 1200 A at 440 V for power switching applications according to the IEC 60947-4-1 standard. Always use appropriate upstream short-circuit protection like fuses or a circuit breaker as specified in the datasheet.

No, the TeSys F series supports a wide range of front and side-mounted auxiliary contact blocks. You can add more blocks to meet your specific control and signaling needs, up to the maximum allowed configuration.
