Schneider Electric LC1D65A TeSys D Contactor

Description

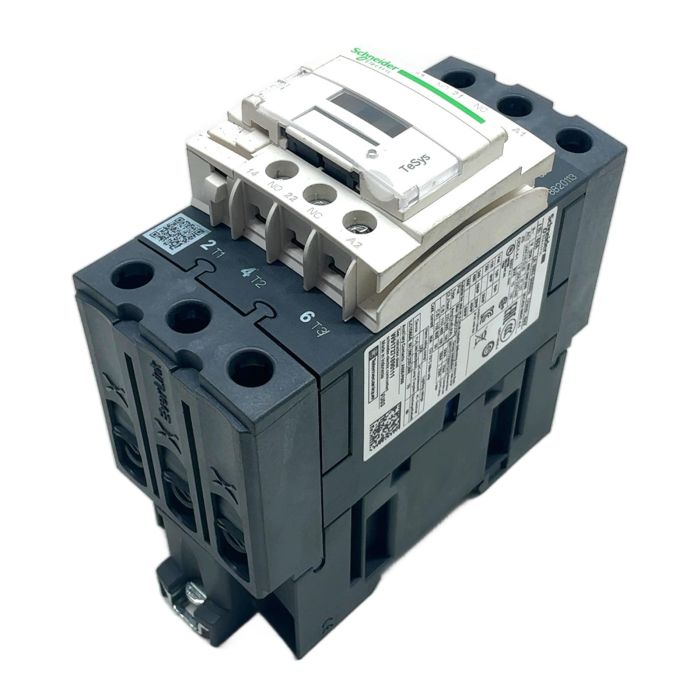

The LC1D65A is a 3-pole TeSys D contactor from Schneider Electric, engineered for high-performance motor control and power switching applications. It has a current rating of 65A for AC-3 utilization category at 440V and can handle motor loads up to 30kW at 400V. This contactor includes one normally open (NO) and one normally closed (NC) built-in auxiliary contact. Note that the control circuit coil is not included with this base unit and must be specified separately.

Specifications

• Manufacturer: Schneider Electric
• Product Range: TeSys D
• Model: LC1D65A
• Poles: 3-Pole
• Rated Operational Current (AC-3, <= 440V): 65 A
• Rated Operational Power (AC-3, 400V): 30 kW
• Conventional Free Air Thermal Current (Ith): 80 A
• Rated Insulation Voltage (Ui): 690 V
• Auxiliary Contacts: 1 NO + 1 NC

Label Info

• Standards: IEC/EN 60947-4-1, UL, CSA
• Rated Impulse Withstand Voltage (Uimp): 6 kV
• Part Code: W917271890111

Application

Ideal for controlling motors, pumps, fans, and other inductive loads in industrial automation, HVAC systems, and manufacturing facilities. Also suitable for resistive loads (AC-1 category) up to 80A.

Country of Origin

Made in Indonesia.

CO2 Impact

Choosing this pre-owned contactor over a new one prevents the emission of approximately 48.0 kg of CO2, contributing to a more sustainable industrial environment.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the range of coil voltages available for the LC1D65A contactor?

The LC1D65A requires a specific coil to be ordered separately or as part of a complete part number (e.g., LC1D65AM7 for 220V AC 50/60Hz). Coils are available in a wide range of AC and DC voltages, from 24V DC to 440V AC, to suit various control circuit requirements.

Can additional auxiliary contact blocks be mounted on this contactor?

Yes, the TeSys D series contactors are highly modular. You can add front-mounted (LADN series) or side-mounted (LAD8N series) auxiliary contact blocks to expand the number of NO (Normally Open) and NC (Normally Closed) contacts as needed for your control logic.

What is the difference between the AC-1 and AC-3 ratings for this contactor?

The AC-1 rating (Ith: 80A) is for non-inductive or slightly inductive loads, like resistance heaters. The AC-3 rating (65A) is specifically for squirrel-cage motors and applies to starting and switching off motors during running. The AC-3 rating is lower because it accounts for the higher stress of handling motor inrush currents.
