Schneider Electric TeSys D 3-Pole Contactor

Description

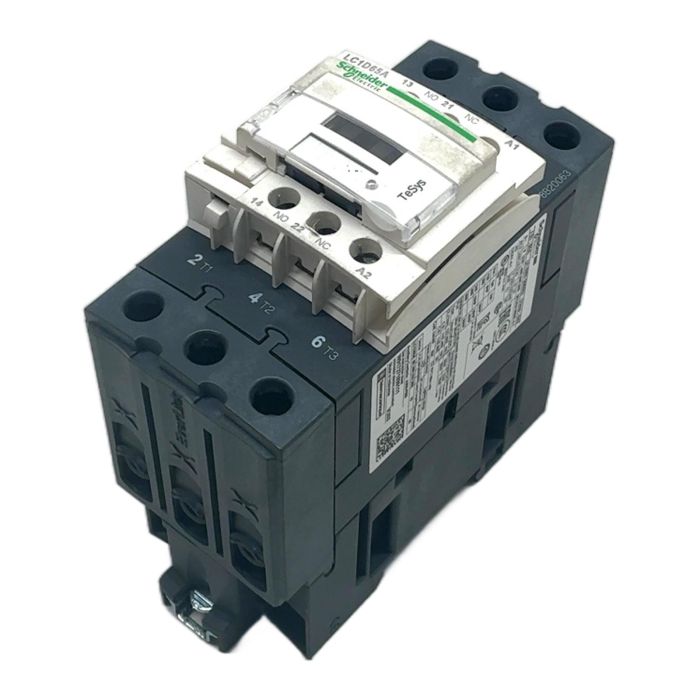

The Schneider Electric LC1D65A is a robust 3-pole contactor from the TeSys D series, engineered for controlling motors and power circuits. It is a key component for automation and industrial applications, known for its reliability, long service life, and compact design. This contactor is suitable for AC-3 utilization category with a rating of 65A and can handle motor loads up to 30 kW at 400V.

Specifications

• Manufacturer: Schneider Electric
• Product Range: TeSys D
• Type: LC1D65A
• Poles: 3-Pole
• Rated Operational Current (AC-3): 65 A at <= 440 V
• Rated Operational Current (AC-1): 80 A at <= 60 deg C
• Motor Power (AC-3, 400V): 30 kW
• Integrated Auxiliary Contacts: 1 NO (Normally Open) + 1 NC (Normally Closed)

Label Info

• Model: LC1D65A
• Rated Insulation Voltage (Ui): 690V
• Rated Impulse Withstand Voltage (Uimp): 6kV
• Conventional Free Air Thermal Current (Ith): 80A

Application

Ideal for motor starting and control in various industrial settings, including conveyor systems, pumps, fans, and HVAC equipment. Also suitable for switching non-inductive loads (AC-1) such as heating and lighting systems.

Country of Origin

Made in Indonesia.

CO2 Impact

Opting for a refurbished component like this one prevents the emission of approximately 50 kg of CO2, which is comparable to driving a car for 250 km. This choice supports a more sustainable industrial environment.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

What is the coil voltage for this specific LC1D65A contactor?

The specific coil voltage is not indicated by the base model number LC1D65A. It must be determined by the suffix code (e.g., M7 for 230V AC) or by inspecting the coil itself. Please verify the required coil voltage for your application before purchasing.

Can I add more auxiliary contacts to this TeSys D contactor?

Yes, the TeSys D series is modular. You can mount additional auxiliary contact blocks on the front or sides of the contactor. Common models are the LADN and LADC series from Schneider Electric.

What is the difference between AC-1 and AC-3 ratings?

The AC-1 rating (80A for this model) is for non-inductive or slightly inductive loads, like resistance heating. The AC-3 rating (65A for this model) is specifically for squirrel-cage motors and applies to starting and switching off the motor during running. The AC-3 rating is lower because of the high inrush current when a motor starts.
